ASEPT Pleural 1000mL Drainage System

Brand/Manufacturer: B. BRAUN
Item # Desc Pkg Price
622279 1000mL $6.00
622279 1000mL $53.00

ASEPT Pleural 1000mL Drainage System is a complete insertion kit that is required for pleural drainage. It allows patients for convenient and compassionate way to perform drainage at home or in any outpatient setting. The primary components of the Pleural Drainage System are evacuated bottle and the Procedure Pack along with all the required dressing change items. Evacuated drainage bottle is a non-powered, single patient, portable suction device, which consists of a manually operated plastic disposable evacuation system intended to provide a vacuum for suction drainage of surgical wounds. Pleural Drainage System is an accessory used to connect to the ASEPT Pleural Drainage Catheter to drain fluid from chest or abdomen.

ASEPT Pleural Drainage System Includes

  • 1000mL Evacuated bottle with drainage line
  • One Procedure Pack that contains:
    • 1 CSR wrap
    • 1 Foam catheter pad
    • 1 Blue emergency slide clamp
    • 1 Self-adhesive dressing
    • 2 pair Gloves
    • 3 Alcohol pads
    • 6 Gauze pads, 4" x 4"

Features of ASEPT Pleural Drainage System

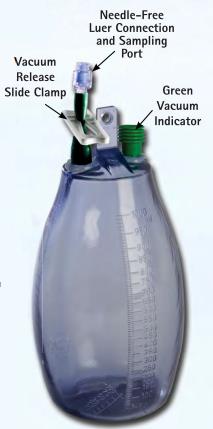

Evacuated Drainage Bottle:

    Evacuated Drainage Bottle
  • Manufactured with non-glass, shatterproof, Medical Grade Plastic for needle-free, safe and secure containment of bio hazardous fluids
  • Clear plastic tubing with pinch clamp
  • Green tube with vacuum release clamp
  • Luer lock connector with protective cap
  • Green vacuum indicator plastic cap
  • Not Made with DEHP

When to use Pleural Drainage System?

ASEPT Pleural Drainage System is used for long term, intermittent drainage of recurrent, symptomatic, pleural effusions, including malignant pleural effusions and other pleural effusions that do not respond to the treatment of underlying disease.

What to buy with Pleural Drainage Kit?

How to use ASEPT 1000ml Drainage System?

  • Wash your hands with soap and water for at least one minute. Remove the catheter dressing. If signs of infection are present, do not continue. Contact your doctor or nurse.
  • Pick up the bag that contains the ASEPT® Drainage Kit. Look at the green vacuum indicator. The indicator should be down, not up. If it is, open a new drainage kit and start over.
  • Peel open the drainage kit pouch all the way and remove the procedure pack. Peel open the procedure pack pouch. Remove the tape and unfold the blue wrapping.
  • Pick up one glove by the wrist and put it on. Pick up the other glove by the wrist and put it on the other hand. Both gloves fit either hand.
  • Tear open the three alcohol pads but do not remove the pads from the pouches. Place the pads on the blue wrapping.
  • Pick up the vacuum bottle, remove the twist tie on the drain line, then squeeze the pinch clamp on the drain line completely closed.
  • Hold the catheter valve end in one hand and vigorously clean the valve surface and around the valve with one of the alcohol pads.
  • Remove the protective cap from the Spin-Lock® male luer connector on the drain line and align it in the center of the catheter valve. Push it in, twist clockwise, and connect firmly.
  • Release the white vacuum release clamp by squeezing it together until it no longer pinches the green tube closed.
  • Release the pinch clamp on the drain line to begin draining fluid. If you feel pain or discomfort, clamp the drainage line to slow or stop the flow of the fluid.
  • Remove your gloves and discard.
  • When the flow stops or the bottle is filled with about two-thirds of fluid or more, close the drainage line by squeezing the pinch clamp completely closed.
  • Disconnect the Spin-Lock® male luer connector from the catheter valve by turning the connector counterclockwise.
  • Put on the second pair of gloves. Pick up one glove by the wrist and put it on. Pick up the other glove by the wrist and put it on the other hand.
  • Disinfect the area around the catheter exit site with the two remaining alcohol pads.
  • Remove the framed center panel from the self adhesive dressing. Put the dressing back on the blue wrapping.
  • Place the foam catheter pad around the catheter.
  • Curl the catheter around in a circle and place it on top of the foam pad. Be very careful not to kink the catheter.
  • Place the gauze pads on top of the catheter and hold them down.
  • Peel the paper liner from the dressing, exposing the self adhesive surface.
  • View the area where the dressing is to be applied through the film and center the dressing over the wound. Press it down.
  • Slowly remove the remaining paper frame by peeling it off from the split section while smoothing down the dressing edges. Firmly push down the dressing from the center toward the edges.
  • Remove your gloves and discard.
  • Pull up the vacuum release clamp slightly and cut the green tubing below the clamp. Cut off the vacuum indicator. Empty the bottle into the toilet or sink. Discard the bottle.

Precautions to take while using ASEPT Pleural Drainage System

  • Federal (USA) law restricts this device to sale by or on the order of a physician.
  • This product contains dry natural rubber (latex).
  • It is recommended to limit drainage to no more than 1,000ml from your chest at any one drainage procedure; 2,000ml from your abdomen during any 24 hour period. The volume of fluid removed should be based on directions from the treating physician.
  • Potential complications of access and drainage of the pleural cavity include, but may not be limited to, the following: re-expansion pulmonary edema, pneumothorax, laceration of lung or liver, bleeding, hypotension/circulatory collapse, wound infection, and empyema.
  • Potential complications of access and drainage of the abdomen include, but may not be limited to, the following: laceration of liver or bowel, hypotension/circulatory collapse, electrolyte imbalance, protein depletion, ascites leakage, peritonitis, wound infection, tumor growth in the catheter tunnel, and loculation of the peritoneal space.


  • Do not reuse. Intended for single patient use only. The reuse of this single-use device can affect safety, performance and effectiveness, exposing patients and staff to unnecessary risk.
  • It is not uncommon to feel some pain or cough when draining fluid. If you feel pain when draining, clamp the drainage line to slow or stop the flow of fluid for a few minutes. If you don’t feel better after doing this, contact your nurse or doctor and withhold further drainage.
  • Do not use scissors or other sharp objects near the ASEPT Drainage Catheter.
  • Keep the valve on your ASEPT Drainage Catheter clean and the end connector of the drainage line sterile.
  • This product and its packaging have been sterilized with Ethylene Oxide. Ethylene Oxide is a chemical known to the State of California to cause cancer, birth defects, or reproductive harm.

For more queries, please view ASEPT Pleural Drainage System - FAQ
ASEPT Pleural Drainage System User Manual
ASEPT Drainage Kit Procedure Guide

Customer Reviews


ItemName - now     10/17/2021

  Your question will show here once it will get approved.

UserName - now     10/17/2021

  Your Answer will show here once it will get approved.



JERRY     04/27/2017

Can I take a shower with the catheter in place?


Customer Care    04/28/2017

Yes, as long as the self adhesive dressing is securely covering the catheter, entrance site, and gauze pads, you can shower. Make sure to check prior to taking a shower that the dressing has not become loose and will allow water to penetrate. In case you do get water below the self adhesive dressing and the gauze pads become wet, immediately remove the dressing, dry and clean the area around the catheter. Use a new procedure pack and follow the Instructions for Use regarding dressing change.



JOHN     04/27/2017

How often should I drain the fluid in the abdomen or from my chest?


Customer Care    04/28/2017

Generally you should drain the fluid every two days. The amount of fluid drained should not exceed 1,000mL in the chest during any one drainage procedure.



Raquel E. Grijaldo     09/23/2016

what is the HCPCS of these products? (1,000 and 10,000ml). Thanks


Customer Care    09/24/2016

Thank you for contacting customer care service.

Sorry, no HCPCS code is available for this product.
