RESmart Auto BPAP System Features
- Full efficacy data reporting
- Innovative tracking technology
- 4-25 cm H2O therapy pressure
- Real time audible alert for tubing or mask leak
- Reslex exhalation relief with four comfort settings
- SD card standard
- Integration with cloud based iCode connect
- Automatic leak and altitude compensation
- Inspiration trigger for automatic start-up
- Quiet operation
Ergonomic Design
- Integrated heated humidifier
- DC 24V powered and infrared controlled humidifier for patient safety and comfort
- Delay-off feature protects the device from humidity hazard
- Backlit LCD display for operation in dark
- Light user buttons with lockup capability
Why to buy RESmart BPAP Bi-Level Machine
- Ergonomically Designed: Which makes it easy to blend in with any home environment and ensures great portability.
- Enhance Comfort: Bilevel therapy for enhanced comfort at higher pressures and increased effectiveness for difficult-to-treat sleep breathing disorders that a sleep device can’t.
- Easy To Use: Innovative tracking technology ensures accurate and comfortable therapy.
- Pressure Relief Technology: Ensures to deliver a softer pressure at the edge of exhalation for added comfort during therapy.
- Embedded Memory: Embedded memory stores last night’s full raw data, 365 nights of user data and more than 30 years of therapy records.
- Auto Adjusting Technology: Adjusts the pressure on each inhalation and exhalation, delivering the optimal pressure needed.
When to use RESmart BPAP Auto Bi-Level System
The 3B and BMC RESmart BPAP system is a Bi-level PAP (Bi-level Positive Airway Pressure) device designed for the treatment of adult Obstructive Sleep Apnea (OSA). The optional integrated humidifier is indicated for the humidification and warming of air from the flow generator device. These devices are intended for single-patient use by prescription in the home or hospital/institutional environment on adult patients. It is to be used on patients > 66 lbs / 30 kg for whom positive airway pressure therapy has been prescribed. The system can deliver bilevel therapy or auto-bilevel therapy.
3B Medical RESmart Contraindications
The RESmart BPAP device should not be used if you have an insufficient respiratory drive to endure brief interruptions in noninvasive ventilation therapy. The BPAP is not a life support ventilator and may stop operating with power failure or in the unlikely event of certain fault conditions. If you have any of the following conditions, tell your doctor before using the BPAP:
Acute sinusitis or inner ear infection.
- Conditions predisposing to a risk of aspiration of gastric contents
- Epitaxis causing a risk of pulmonary aspiration
- Hypotension or significant intravascular volume depletion
- Inability to maintain a patent airway or adequately clear secretions
- Pneumothorax or pneumomediastinum
- Recent cranial trauma or surgery
Caution should be used when prescribing BPAP for susceptible patients such as those with: cerebral spinal fluid leaks, abnormalities of the cribriform plate, prior history of head trauma, and / or pneumocephalus
What to buy with BPAP System
What 3B Medical Auto BPAP Syatem Includes?
- 1 RESmart BPAP
- 1 Power cord
- 1 Carrying Case with shoulder strap
- 1 User Manual
- 1 Provider Instructions
- 1 Flexible tubing
- 1 Extra Filter (M1020)
- 1 Humidifier Plug
- 1 SD Card
Available Therapies with RESmart BPAP System With Integrated Heated Humidifier
The RESmart BPAP is available in the model 25A, which delivers the following therapies:
- CPAP Mode: Delivers Continuous Positive Airway Pressure CPAP maintains a constant level of pressure throughout the breathing cycle. If your health care professional prescribed ramp for you, you can press the Ramp button to reduce the pressure and then gradually increase the pressure to the therapeutic pressure setting so that you can fall asleep more comfortably.
- S Mode: Delivers dual Continuous Positive Airway Pressures at set levels for inhalation and exhalation, which affords added comfort during treatment.
- Auto S Mode: Automatically adjusts dual therapy pressures for inhalation and exhalation within prescribed pressure ranges determined by your physician or healthcare provider

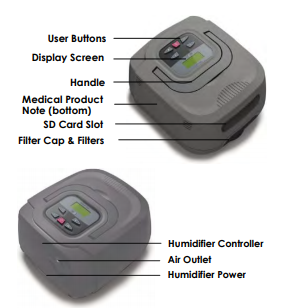

RESmart Auto BPAP System Features
- Display Screen: All system settings, total operating time, and therapy hours will appear here.
- User Buttons: These buttons can be used to turn on / off the system and change the system settings.
- Humidifier Controller: This controller turns the Integrated Heated
- Humidifier on / off and allows the heat setting to be adjusted. This button allows access to iCode data when the device is turned off.
- Air Outlet: Connect the flexible tubing (coaxial 22 mm) here. Handle: This handle is for lifting and carrying the device.
- Medical Product Note: For ease at airport security stations, there is a note on the bottom of the RESmart BPAP stating that it is medical equipment. It may help if you also take this manual with you when you travel.
- AC Inlet: Connect / disconnect the AC power cord here.
- SD Card Slot: Used to insert the SD card. As a memory medium, the SD card can record and save all patient treatment data.
- Communications Connector: For clinical use with the Data Management Software. Connect the communications cable.
- Filter Cap & Filters: The foam filter screens out normal household dust and pollens. The filter cap is designed to reduce noise from the RESmart BPAP.
For more information, please checkout 3B Medical RESmart Auto BPAP System User Manual
B Medical RESmart Auto BPAP Specifications
Device Size
| Dimensions |
8.66 × 7.6 × 4.4 (220 mm x 194 mm x 112mm) with Integrated Heated Humidifier |
| Weight |
3.5 lbs. (2.2 kg), 4.8 lbs. (3 kg) 6.6 lbs. (with Integrated Heated Humidifier) |
Product Use, Transport and Storage
| |
Operation |
Transport and Storage |
| Temperature |
41°F to 95°F (5°C to 35°C) |
3-4°F to 131°F (-20°C to 55°C) |
| Humidity |
= 80% Non-condensing |
= 93% Non-condensing |
| Atmospheric Pressure |
860 to 1060 cmH2O |
500 to 1060 cmH2O |
| Mode of Operation |
Continuous |
| Work Mode |
CPAP, S, Auto S |
| AC Power Consumption |
C100 – 240V AC, 50/60 Hz, 95VA max |
| Type of Protection against Electric Shock |
Class II Equipment |
| Degree of Protection against Electric Shock |
Type BF Applied Part |
| Degree of Protection against Ingress of Water |
IPX1 –Drip-Proof, Vertical |
| Pressure Range |
4 to 25 cmH2O *(in 0.5 cmH2O increments) |
| Pressure Stability |
Static Pressure Stability: 4 to 20/25 hPa (±0.5 hPa)
Dynamic Pressure Stability: 4 to 20/25 hPa (±1.0 hPa) |
| Altitude setting |
Manual setting: level 0-2
Automatic altitude compensation for therapy pressure |
| Sound Pressure Level |
< 30 dB, when the device is working at a pressure of 10 cmH2O |
