Pari Proneb Max Aerosol Delivery System

Why choose Proneb Max Aerosol Delivery System?

• Quieter
• Sleek new design
• Ability to handle multiple treatments per day
• For single patient use (one person) only

Pari Proneb Max Aerosol Delivery System Features

• Proneb nebulizer system has lower Operating Temperature
• pari proneb max nebulizer system's fast treatments allow patients to spend less time on aerosol therapy helping to improve their quality of life
• Proneb nebulizer system is available with the clinically proven PARI LC Plus or LC Sprint nebulizers
• Powerful 1.6 bar compressor withstands repeated use for heavy use patients

What to buy with Pari Proneb Max Nebulizer System

• Pari Adult Aerosol Mask
• Pari Bubbles The Fish II Pediatric Aerosol Mask
• Pari Vortex Non Electrostatic Holding Chamber

What to buy with Pari Aerosol Delivery System

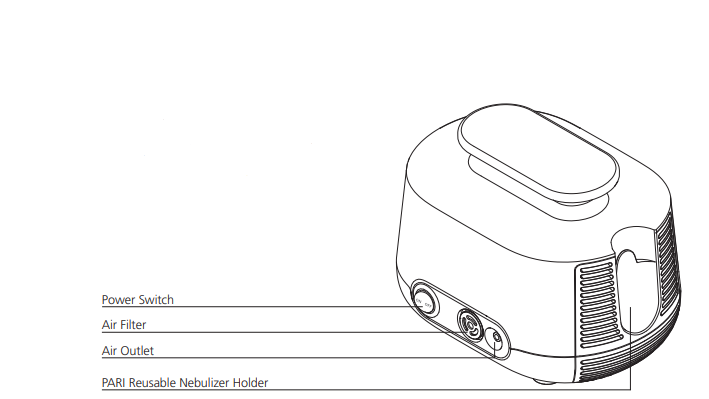

Pari Proneb Max Aerosol Delivery System Parts:

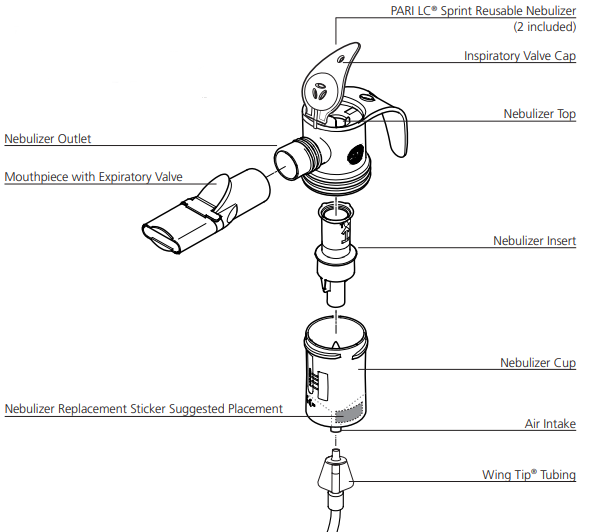

Pari LC Sprint Nebulizer Parts:

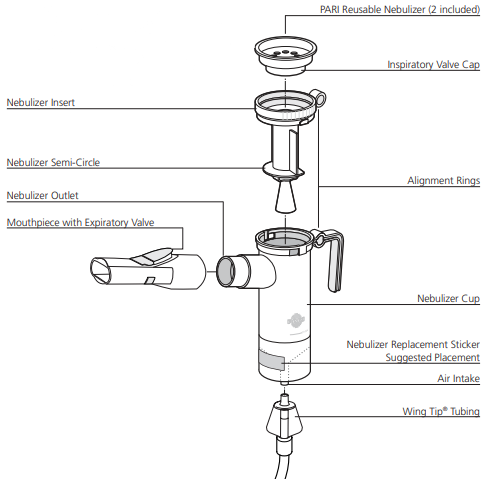

Pari LC Plus Nebulizer Parts:



How to use Proneb Max Nebulizer System?

1. Properly clean and/or disinfect nebulizer prior to first use. Re-assemble nebulizer.
2. Place the compressor on a flat, stable surface free of dust. Avoid cushioned, upholstered or carpeted surfaces. Make sure power switch is turned to the “OFF” position. Plug power cord into wall outlet (Fig. A).
3. Insert one end of tubing to the air outlet on the compressor. It should fit snugly (Fig. B).
4. Open the inspiratory valve cap of nebulizer by lifting the cap (Fig. C). Pour medication into nebulizer cup as instructed by your physician. Never fill past the max. fill line of 8 ml.
5. If using the mouthpiece, attach the mouthpiece to the nebulizer outlet with the expiratory valve facing up. Then close the inspiratory valve cap by pressing it firmly onto the top of the nebulizer. If using a mask, attach mask to the nebulizer outlet and refer to the mask instructions.
6. Firmly press the other end of the tubing to bottom of PARI reusable nebulizer (Fig. D).
7. Sit in a relaxed, upright position and turn the compressor “ON”.
8. Place the mouthpiece on top of tongue and close lips around it. Take slow, deep breaths. As you inhale, the inhalation valve opens.
9. For mouthpiece, inhale and exhale slowly through your mouth. As you exhale, the valve on the mouthpiece opens to allow the exhaled mist to escape. For mask, place mask over nose and mouth and inhale and exhale slowly.
10. Continue until the medication is gone or you hear a slight “sputtering” sound. Turn compressor off.
    Note: Please note that many factors affect treatment time, such as a patient’s age, condition, breathing pattern, and medication. The PRONEB max is designed for intermittent use to deliver respiratory medications, not continuous use for humidification.

How to clean Pari Reusable Nebulizer?

1. Disconnect the tubing from the air intake on the bottom of the nebulizer cup.
2. If there is any moisture (condensation) in the tubing, let the compressor run with only the tubing attached for 2-3 minutes. The warm air from the compressor will dry out the tubing. Alternatively, you can dry the tubing by removing it from the compressor and hanging it up with the “ends down” to allow any moisture (condensation) to drain out and evaporate. Use a clean damp cloth to wipe the exterior of the tubing.
3. Disassemble reusable nebulizer.
4. Wash all parts of pari proneb max aerosol delivery system with warm water and liquid dish soap. Do not wash the tubing.
5. Rinse the reusable nebulizer parts thoroughly with warm water and shake out water.
6. Air dry or hand dry nebulizer parts on a clean, lint-free cloth. Reassemble nebulizer when parts are dry and store.
7. You can also wash all parts of the reusable nebulizer on the top shelf of a dishwasher. Do not wash tubing. Place the reusable nebulizer parts in a dishwasher basket, then place the basket on the top rack of the dishwasher. Remove and dry the parts when the dishwasher cycle is complete.

How to maintain Pari Proneb Aerosol Delivery System?

• The filter on the front of the PRONEB max Compressor is designed to be monitored without removing it. This makes it easy to check without much work. When the filter is new, it is bright white in color. With use, the filter will turn grey, indicating the need for replacement.
• The filter must be replaced immediately if it gets wet or becomes clogged. Replace your filter every 6 months—at the same time as your PARI reusable nebulizer.

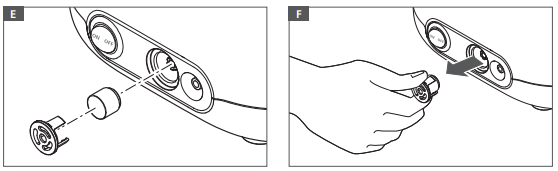

• For filter replacement, obtain the replacement filter set which includes the filter and filter cap (Fig E). Pull the old filter and cap out of the compressor and discard (Fig F).
• Once the old filter and cap are removed, tilt the compressor so that the face of the unit is facing the floor. Gently tap on the back of the compressor to remove any unwanted materials from the filter area. Place the compressor on a stable surface and using clean hands, push a new filter with cap into the filter receptacle.
• Note: Do not attempt to wash and reuse air filters. Do not use substitute filter material as compressor damage may result
• Compressor: Use a damp cloth to wipe the exterior of your PRONEB max housing and tubing.
  Caution: Never spray fluid into the ventilation slots on your PRONEB max. Fluid could cause damage to the electrical & compressor parts and could lead to malfunction.
• Maintenance & Repair:
  • Never operate your PRONEB max if it is improperly or incompletely assembled or damaged.
  • Use only original PARI parts and attachments for the PRONEB max Aerosol Delivery System. Use of other parts and attachments may damage the unit or cause improper treatment.
  • Do not open or disassemble the compressor unit of pari proneb max nebulizer system at any time.

Proneb Max Compressor Nebulizer System User Guides

• Pari Proneb Max Aerosol Delivery System User Manual
• Proneb Max with Pari LC Sprint Nebulizer User Manual
• Pari Proneb Max with Pari LC Plus Reusable Nebulizer User Manual
