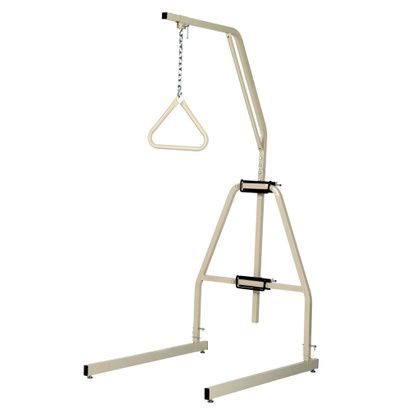

Dynarex Homecare Trapeze Bar with Stand

Dynarex Homecare Trapeze Bar with Stand Features

• Ideal for homecare settings, hospitals, rehabilitation facilities, and more
• Chain and Bar can be adjusted
• Constructed with two-piece steel tubing for durability and longevity
• Freestanding
• Ideal for a wide range of users up to 250 lbs.
• Two-piece design, tool-free assembly, an adjustable chain, and adjustable bar height
• Designed to help individuals shift positions while in bed

What to buy with Dynarex Trapeze Bar

• Sammons Preston Clinic Bell
• Medline Bed Assist Bar

How to Assemble Homecare Trapeze Bar with Stand?

• Please carefully unpack the container and remove the Homecare Trapeze Bar with Stand from the shipping cartons.
• lnspect the packaging, and make sure that there are no shipping damages and all the components are in the shipping cartons:
  • Floor Base (× 2)
  • A-shaped Body Frame
  • Long Trapeze Post
  • Short Trapeze Post
  • Trapeze Arm
  • Bracket Clamps (1 top, 1 bottom)
  • Triangle Grab Bar Assembly
• Insert the A-shaped body frame into the two floor base legs. The protruding tabs on the A-shaped body frame should be facing forward.
• Insert clevis pin through the base leg to secure it together with the body frame. Fasten a split pin to the clevis pin.
• Place the clamps between the two protruding tabs onto the horizontal bars of the body frame, clamping over the bars. The clamp with a wall stopper should be placed on the top of the A-shaped body frame. Do not tighten the clamps at this point.
• Insert the trapeze post from the top through the holders at the rear of the bracket clamps.
• Rotate the locking pin at the bottom holder to secure the up-right frame in place. Tighten the top and bottom clamps to the body frame.
• Remove the nuts and bolts prefastened to the trapeze post. Insert the short trapeze post into the top of the long trapeze post.
• Ensure the bottom two holes on the short straight up-right frame align with the mounting holes on the long up-right frame. Secure the frames together with bolts and nuts.
• Insert the mounting end of the trapeze arm into the top of the short trapeze post. The other end of the bow-shape frame should be facing forward. Re-insert the bolts through the mounting holes and secure with nuts.
• Secure the end of the grab bar chain to the holder on the top of the trapeze bar, slide the holder to adjust the position of the triangle grab bar. Fix the holder position by turning the locking pin clockwise.
• Move the assembled trapeze bar to the head of the bed. To adjust the height of the trapeze bar, turn the lock pin counterclockwise to loosen the bottom holder securing the straight upright frame and move the frame up or down. Re-tighten the holder.
• To adjust the position of the Triangle Grab Bar, loosen the holder securing the grab bar assembly, slide the assembly forwards or backwards. Re-tighten the holder.
