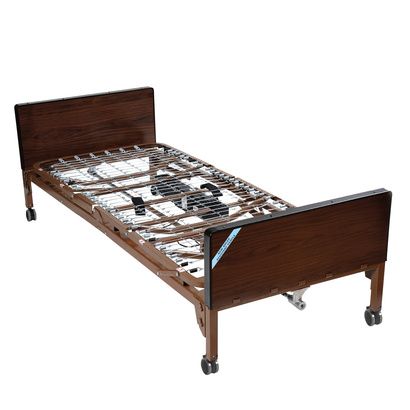

Drive Delta Ultra Light 1000 Semi Electric Bed

Why choose Drive Delta Ultra Light 1000 Semi Electric Bed?

• The transition box mounted on the foot section is key to interchangeability The transition box allows you to change the rotation of the high/low shaft The headboard is taller than footboard to better fit home decor
• The wood grain panels are break and scratch-resistant
• Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations
• Labels and color-coded springs assure accurate installation of side rails for patient safety
• Unique motor is completely self-contained to reduce weight and noise
• The motor assembly can be installed and removed with the patient in bed
• Bed, side rails, and mattress safety-tested by SGS, a nationally recognized testing facility
• The Delta 1000 hospital bed is truly universal because the bed frame can be used with most other manufacturers’ bed ends, old and new
• In the event of a power failure, a 9-volt battery, located in the motor, can lower the head and foot sections nine times
• Satisfies all applicable FDA entrapment guidelines
• Channel frame construction provides superior strength and reduced weight
• Extension kit available extends length from 80" to 84"
• Patent Pending
• New and improved hand pendant has large, easy-to-use controls

Delta Ultra Light 1000 Semi Electric Hospital Bed Parts
15030 Drive Semi Electric Bed User Manual


What to buy with Delta Ultra Light Semi Electric Bed - Drive Medical?

• Drive Tri-Fold Bedside Fall Mat
• Drive Deluxe Tilt-Top Overbed Table
• Platinum Care 519 Series Foam Mattress With Zipper And DPM

How to care for Drive Medical Delta Semi Electric Hospital Bed?

The following maintenance and cleaning procedures be conducted between users

• Weight Limitations
  • The total weight limit of the Drive 36-inch wide Manual/Electric bed (including accessories, mattress, occupant and any other person/object positioned on the bed) is 450 lbs
  • Body weight should be evenly distributed over the surface of the manual/electric bed. DO NOT lay, sit or lean in such a way that your entire body weight is placed only on raised head or foot sections of the bed. This includes when repositioning or transferring in or out of bed.
  • DO NOT permit more than one person on/in a 36-inch bed at any time
• Electronics
  • Check all controls to make sure all functions work properly
    • Foot control
    • Hi/Lo
    • Head control
  • Check all cables for damaged or frayed wires.
    • Pendant cord
    • Power cord
  • Check to make sure all plugs are fully inserted or attached
  • Check 9V battery on the motor and replace it annually


• Bed Frame & Sleeping Surface
  • Visually check all welds
    • Foot section
    • Head section
    • Main Frame
  • Check joints between sleeping surface sections for loose fasteners


• Cleaning
  • Clean all coated parts with mild detergent and warm water
  • The metal parts of the bed are covered with a powder coating
  • Periodically remove mattress and clean mattress deckPeriodically raise head and feet sections of the bed and remove dust from frame









  •
  •
  •
  •
  •
  •


• Lubrication & Mechanical
  • Lubricate all caster roller and swivel bearings with light machine oil
  • Lightly grease all actuator screw threads with white lithium grease
  • Check all bolts and tighten as needed

Warnings and Precautions:

• Cancer and Reproductive Harm www.P65Warnings.ca.gov
• Always use caster locks except when moving the bed
• Read all the instructions before using the bed
• Do not permit more than one person on/in the bed at any time
