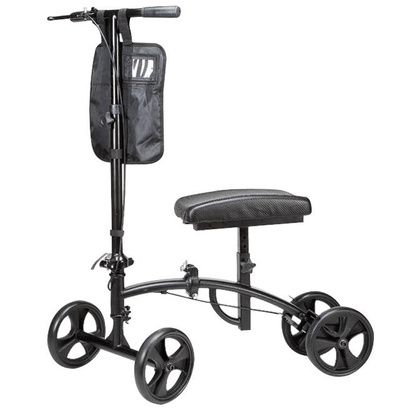

Cardinal Health Steerable Knee Walker

Cardinal Health Steerable Knee Walker Features

• Durable steel construction for strength and stability
• 8-inch wheels for a smooth ride indoors and outdoors
• Contoured, cushioned knee rest helps keep injured leg comfortably in place
• The leg bench and steering column adjust to accommodate varying heights
• The hand brake adjusts for left or right-hand use and includes a locking feature
• Includes a durable vinyl pouch for personal belongings
• Not Made with Natural Rubber Latex
• Weight capacity: 300 lb.
• Overall product weight: 24 lb.

When to use?

• Foot or ankle surgery: After a foot or ankle surgery, you may be required to keep weight off the affected leg for a period of time. A steerable knee walker can help you move around and perform daily tasks without putting pressure on the injured or recovering leg.
• Foot or ankle injury: If you have a foot or ankle injury such as a sprain, strain, or fracture, this knee walker can provide support and mobility assistance while allowing your injury to heal.
• Arthritis: If you have arthritis in your foot or ankle, it can provide relief by reducing the weight-bearing pressure on your joints.
• Balance issues: If you have balance issues or are at risk of falling a steerable knee walker can provide additional stability and support while you move around.

Frequently Bought Together

• UPWalker Flashlight Tail Light
• PVI Portable Multifold Ramp
• EWheels Cup Holder
• ProBasics Deluxe Aluminum Rollator With Eight Inch Wheels


How to use this Steerable Knee Scooter?

Assembling Instructions

1. Expand the steerable knee walker by pushing down on the folding metal frame.
2. Lock the frame securely into place by rotating the locking mechanism lever clockwise to tighten the quick-release clamp, pushing the locking handle against the side of the frame.
3. Push the steering column upward until fully upright.
4. Rotate the lever clockwise to tighten the quick-release clamp, pushing the locking handle against the side of the steering column to securely lock into place.
5. Remove the star screw located just below the handlebar and extend the steering column until the handlebars are at wrist level.
6. Align the holes in the steering column and re-insert the star screw, securely tightening the knob securely.
7. Remove the star screw located on the knee bench supporting column.
8. Insert the knee bench post, positioning the knee bench to the appropriate height.
9. Align the holes and re-insert the star screw through the knee bench column, tightening the knob securely.
10. Using the hex wrench (included in the package), loosen the hand brake lever to reposition and/or tighten it to a more comfortable position.
11. Brake tightness can be adjusted with the nuts at either end of the brake cable.
12. Turning the screw clockwise will loosen the brake, while turning the screw counterclockwise will tighten it.
13. Squeeze the hand brake lever and push down the parking brake lock to lock the steerable knee walker.
14. Squeeze the hand brake lever again to release the parking brake lock.

Folding/Unfolding

1. Pull the lock lever away from the steerable knee walker to fold the steering column down until the lock is disengaged. While holding the lock lever in the down position, fold the steering column down until it rests on the knee pad.
2. To fold the frame, pull the frame lock lever away from the steerable knee walker until the lock is disengaged. While holding the lever in place, pull up on the frame until the wheels come together.

Before Each Use

1. Ensure that the brakes are working correctly. Over time the brake cables may stretch with use and should be adjusted to ensure continued proper operation. Failure to do this may result in injury to the user.
2. Ensure all parts are secure and moving parts are in good working order.
3. Ensure the seat lock and steering column lever are securely locked.
4. All four wheels MUST be in contact with the floor at all times during use to ensure the steerable knee walker is properly balanced.
5. Be aware of your surroundings when operating the steerable knee walker. Watch for safety hazards like cords, floor rugs, and other obstacles.

Using Your Knee Walker

1. Place the injured leg on the bench, centered side-to-side, and position it forward to cover the full length of the bench.
2. With the injured leg on the bench, stand as straight as possible (adjust the height as necessary).
3. With the injured foot pointing down, the propulsion leg should be kept as close as possible to the bench.
4. While on your toes, start out with small steps with the propulsion leg. Concentrate on keeping that leg next to the bench. With practice, you should be able to move forward without deviating to the opposite side.

Using the Hand Brake

1. The steerable knee walker's brake is similar to a bicycle and also has a locking feature.
2. To use the brake, simply pull the lever with your fingertips toward the handlebar.
3. Pull the brake lever towards the handlebar and push down on the spring-loaded push button (located on top of the brake) to lock the brake.
4. When correctly engaged, the push button will remain down, and the brake lever will be locked.
5. To release the brake, simply pull the lever towards the handlebar. The push pin will pop up automatically.

Cleaning Instructions

To ensure that your steerable knee walker will have a long service life, inspect it regularly and follow these general maintenance tips:

• Wipe the frame with a soft, damp cloth at least once a week to remove any dust and dirt. If exposed to moisture, dry immediately. Do not use an abrasive cleaner that will scratch the finish.
• Use only a clean towel dampened with cool water when cleaning hand grips and padded cushions. Confirm that the grips are dry before use. NEVER use ammonia-based cleaning solutions or soap on hand grips or cushions, which may cause them to loosen or crack.
• Clean wheels with warm water and a mild cleanser. Dry with a clean rag.
• Periodically inspect that the brakes, seat lever, steering column, and wheels are functioning properly and that all parts are secure. If any issues develop, discontinue use until they have been addressed.
