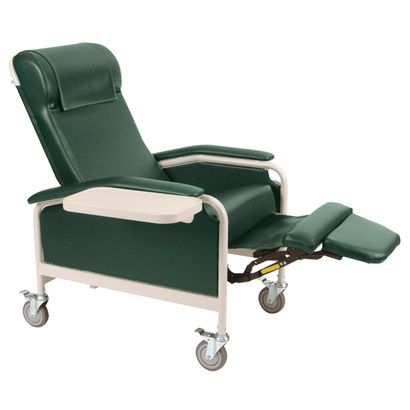

Winco Three Position CareCliner With Casters

Features of Winco Three Position CareCliner

• Webbed elastic and open seat base that provides superior comfort and support
• Standard Trendelenberg release on back with easy-access handle
• Wide elastic bands on back frame and seat provide enhanced comfort and support
• Removable side panels for easy cleaning and maintenance
• Smooth, round tube frame with recessed hand grips
• Non-porous, fold-down side trays are mounted on both sides and contains small spills
• Recessed hand-grips assist in entering and exiting the medical chair
• Total-lock and directional-lock casters provide ease of maneuverability
• 5" high-impact casters
• Standard headrest cover
• Padded Armrests
• XL CareCliner has a higher weight capacity and is slightly larger than the Standard Carecliner

Note:

• SilverTex is not recommend for applications involving frequent contact with bodily fluids where bleach is the preferred or required cleaner.
• Bleach is not advised for cleaning SilverTex.

Winco Three Position CareCliner User Manual


What to buy with Care Cliner Medical Chairs

• Graham-Field PVC Deluxe Hampers
• Graham-Field Safety Stools

How to use Winco CareCliner?

Reclining the CareCliner

• From the 1(Seated Upright) position, grip the arm rests and simultaneously lean body weight back. Push rearward with your arms until desired recline position 2(TV) or 3(Recline) is reached.
  Note: The footrest will simultaneously elevate.
• An attendant can also recline the chair to position 2 or 3 by simply grasping the armrest with one hand, and the top of the chair back with the other; Then push back on the back of the chair.
  Note: This applies only to positions 2 and 3, and not  engaging the gas spring for trendelenburg.
• Trendelenburg positioning must only be performed by an attendant. While occupant is in the chair, place the chair into the fully reclined position(3). The gas spring must be engaged by squeezing the Release Handle at the top of the backrest. Do not force back of chair downward without squeezing the Release Handle. This will damage the chair. The chair back will stay in trendelenburg position when pressure is removed from the Release Handle.
• After each use of Trendelenburg return the chair back to regular positioning by squeezing the Release Handle and lifting up until chair back is fully upright.

Returning CareCliner To The Upright Position

• From the Reclined position, grip the arm rests and simultaneously lift body weight upward while pulling on armrests. Continue until desired position is reached. Push down on footrest with feet to lower legrest.
• An attendant can also return the chair to the upright position by grasping the armrest with one hand, and the top of the chair back with the other; then pull the back of the chair upright. The attendant can lower the footrest by pushing down on the footrest.
• Trendelenburg positioning must only be performed by an attendant. The gas spring must be engaged by squeezing the Release Handle at the top of the backrest.

Cleaning Instructions

• Remove grime, hair and body oils; Your furnishings should be cleaned with mild soap and water solution and a damp cloth on a regular basis (especially where skin and hair make contact with upholstery).
• Avoid harsh detergents or chemicals that could damage the upholstery or finish of your recliner. If the furnishings upholstery is disinfected with chemicals or bleach, the chair must be wiped off using only clean water on a damp cloth and then be allowed to air dry.
• Failure to rinse upholstery with clean water can result in a build-up of residues over time that can dry out the upholstery and cause changes to the look and feel of the upholstery and eventually can lead to cracking.

Warnings:

1. Unplug this product from the electrical outlet when not in use.
2. Supervision should be provided when using this product.
3. Use this product only for its intended use as described in this manual.
4. Do not use attachments not recommended by the manufacturer.
5. Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water, contact an authorized Winco service center for instructions.
6. Do Not carry or pull this product by power supply cord or use the cord as a handle.
7. Keep the cord away from heated surfaces.
8. Do not use outdoors.
9. To disconnect, turn all controls to the "off " position, then remove plug from outlet. Pull plug only to remove the cord.
10. Clean switch with a damp cloth only, Warranty will be Void if the liquid is introduced into switch mechanism.
11. Extension cords are not recommended.
12. Do not roll recliner or other equipment over the cord.
13. This product is for use on a nominal 120-volt circuit and has a three-pin plug. If the plug does not fit into the outlet, contact a certifi ed electrician to install the proper outlet. Do not modify the plug or use an adapter with this product.
14. For an added level of safety; Winco recommends the use of a 120 volt GFCI (ground fault circuit interrupter) outlet.
