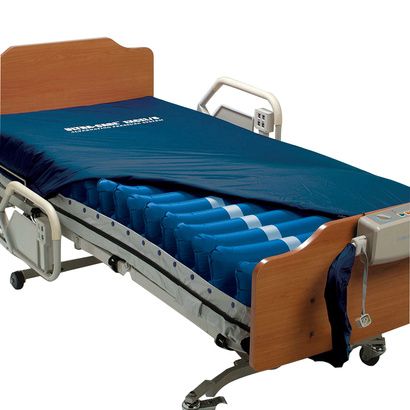

Meridian Ultra-Care Alternating Pressure And Low Air Loss Mattress System

For Questions, Please Call...
For Questions, Please Call...


Item# Description Pkg reward$ Price Blank
Item #: 4800
8" Mattress with 8 LPM Pump
Item #: 4800E
8" Mattress with 16 LPM Pump (4253E)

Meridian Ultra-Care Alternating Pressure And Low Air Loss Mattress System is made for pressure-relieving solutions. The pressure relief mattress provides users with an alternating pressure mode, as well as continuous low air loss. System includes digital pump which provides patients with ultimate and customizable comfort with five different comfort settings. This is particularly beneficial for those with incontinence issues.

Meridian Ultra-Care Mattress System Highlights

  • Treatment of pressure ulcers
  • Two modes of therapy - static or alternating
  • Variable pressure setting for maximum comfort
  • Mattress maintains low air loss benefit

Ultra-Care APM/LAL Mattress System Features

  • Air cells made with nylon/polyurethane for increased durability and reliability
  • CPR quick deflate located at the head of the mattress
  • Quilted cover, moisture resistant, vapor permeable nylon; low shear/low friction
  • 10 minute cycle time
  • Front panel switch provides two modes of therapy - static or alternating
  • Variable pressure setting allows for maximum comfort
  • Adjustable pressure range: 20 mmHg - 70 mmHg
  • Supports patients up to 350 lbs

What Ultra-Care Low Air Loss Mattress System Includes

  • Mattress
  • Cover
  • Pump

Ultra-Care Alternating Pressure And & Air Loss Mattress System Benefits

Cell Construction

  • Twenty rows of 8" alternating pressure air cells, 9 with laser holes to keep the patient cool and speed recovery
  • Air cells made of nylon/polyurethane for increased durability and reliability
  • Cells are easily cleaned


  • Zipper cover is quilted vapor permeable nylon
  • Water-resistant
  • Easy cleaning
  • Low shear/low friction

Quick Disconnect Cells

  • Quick disconnects allow for easy cell replacement
  • Quick disconnect cells allow any area of the mattress to deflated and be zero pressure without affecting alternating benefits


  • Front panel switch provides two modes of therapy - static or alternating
  • LED backlit switches with the dial on the panel for simple set up and operation
  • Retractable hooks for bed use

What to buy with Meridian Ultra-Care Combination Therapy Mattresses

Ultra-Care Mattress System Specifications

Particulars Specifications
Dimensions 80"L x 36"W x 8"H
Cells 20 rows of cells 8" high, 9 with laser
holes for air loss benefit
Inflation Time 20 - 25 minutes with static inflate.
2 - 5 minutes with rapid inflate pump
Material Nylon/Polyurethane for durability.
Integrated foam base for additional
Weight Capacity 350 lbs.
450 lbs. with 4253E upgrade pump
Mattress Weight 9 lbs.
Cover Urethane coated nylon that is vapor
permeable and low shear/low friction
Base Reinforced nylon for durability. Bayonet
type tie connectors to secure the
mattress to the bed frame.
Transport Cap Located at end of the connector hose
which when inserted, locks and prevents
air loss from the mattress if the pump
loses power or is disconnected.
Additional System uses modular components which
allows for simple part replacement.
CPR quick deflate at head of mattress
Electrical Power 110-120 VAC, 60Hz, 100mA, 8.5W
Power Cord SJT 14 Feet, 3 Prong
Air Output 8 LPM
Indicator Lights Power On, Normal Pressure, Low
Pressure, Mode Selection
Cycle Time 10 minutes
Dimensions: 11.8"L x 3.7"W x 7.5"H
Safety Code Approval UL 544 & CSA
Pressure Range: 20 - 70 mmHg ± 10%


Meridian Ultra-Care Mattress System Warranty

Two year warranty on mattress and pump
