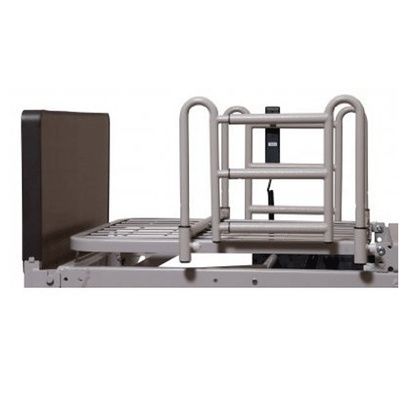

Graham-Field Liberty Quarter Length Bed Rail

Graham-Field Liberty Bed Rail Features

• Closes open areas that can occur during full bed articulation
• Improved rail design decreases the spacing between the crossbars, thus reducing the risk of entrapment
• Spring-loaded, self-adjusting crossbraces feature safety tabs that prevent accidental disengagement when bumped or during application of side pressure
• Tool-free installation saves delivery and setup time and ensures proper rail placement
• Designed to be used specifically with the Patriot beds that are commonly used as standard-height or low beds
• Product weight: 12.75 lb

Graham-Field Liberty Quarter Length Bed Rail Instruction Manual


How To Operate GF Liberty Bed Rail?

Lowering the Rails:

• To lower the rails to the MID position, pull out the spring buttons and lower the rail until the buttons lock in the second holes. Release the spring buttons. To lower the rails to the DOWN position, pull out the buttons and lower the rail until it sits on the two rail rivet stops.

Raising the Rails:

• To raise the rails to the MID position, pull out the spring buttons and raise the rail until the buttons catch in the second holes. To raise the rails to the UP position, pull out the buttons and raise the rail until the buttons catch in the top holes.
• Warning: Ensure the bed rails lock into place during adjustment, and that both ends of each bed rail are adjusted to the same height.

Maintenance:

• Inspect the bed rails frequently and adjust as needed to ensure secure installation.

Cleaning:

• To clean the bed rails, wash them with soap and water or a mild detergent, then rinse with water.
  Note: Never use abrasive cleaners or scouring pads on any part of the bed rails
