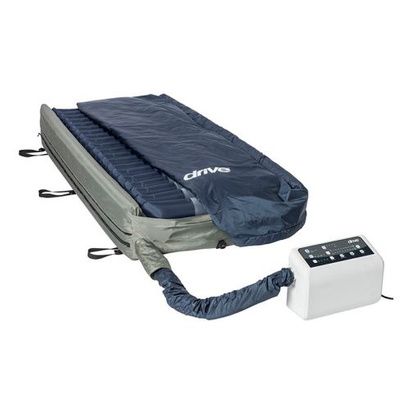

Drive LS9500N Lateral Rotation Mattress with on Demand Low Air Loss

Authorized Retailer Badge
For Questions, Please Call...
For Questions, Please Call...


Item# Description Pkg availability reward$ Price Blank
Item #: LS9500N
36" x 80" x 10"
Each In stock
Drive LS9500N Lateral Rotation Mattress with on Demand Low Air Loss uses a unique turn-style or rotation system used for pulmonary therapy for the prevention and treatment of pressure ulcers. It comes with a control unit that inflates the overly to provide variable low air loss and lateral rotation in one system. The lateral rotation mattress also encourages blood flow and mucosal drainage but uses turning cycles in addition to low air loss to keep the patient cool and dry.

Why choose Drive Lateral Rotation Mattress?

  • CPR Deflation in 20 Seconds
  • Side bolsters add comfort and safety
  • Audible and visual low-pressure alarms
  • Allows for customizable turning cycles
  • Adjustable turn angles up to 40 degrees
  • Auto-Firm feature aids in patient transfers
  • Continuous feedback sensor equalizes pressure
  • Unique design to turn patient to encourage blood flow

Drive Medical 10-Inch Lateral Rotation Mattress Feature

  • Lockout feature to protect patient settings
  • Lateral rotation mode will assist in pulmonary blood flow and mucosal drainage
  • Turn-Style system incorporates the functions of lateral rotation and low air loss in one unit
  • Auto-Firm feature for max inflation when transferring patient and has auto-recovery after 30 minutes
  • Mattress is constructed of 20, 8" high split-air cells over a 2" foam base with 2, 10" high side air bolsters
  • Side bolsters provide the patient with optimal comfort while creating a safe environment during rotation
  • On-demand low air loss function will provide a cool and dry surface for prevention and treatment of pressure ulcers
  • Offers 10 comfort levels, 10,20, 30 and 60 minute adjustable turning cycles and maximum turn angle adjustments


Control Specifications Values
Pump Airflow 50 LPM (liters per minute)
Pump Type Compressor
Turn Cycle Times 10, 20, 30 & 60 min
Rotation Angles 1/4, 1/2 , and 3/4 turn options
Lateral Rotation Up to 40-degrees
Pump Alarms Low Pressure & Power Failure
Pump Power 120/60Hz
Mattress Dimensions 36" x 80" x 10"
Mattress Cover Material 43% Polyurethane / 57" Polyester
Weight Capacity 500 lbs
Warranty 2 Years
