Features

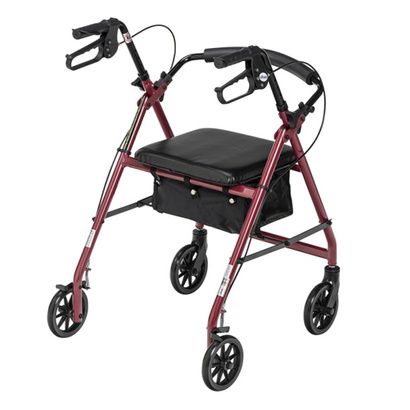

- Drive Aluminum Rollator With Fold Up and Removable Back Support and Casters has easy to use deluxe loop locks
- Handles are adjustable in height
- Comes with seamless padded seat
- Zippered pouch under seat for added privacy and security of personal items
- Comes standard with pouch
More Information
- Assembly Instructions:
Do not attempt to adjust or operate Rollator without carefully reading all instructions in this manual.
- First remove all contents from carton: backrest, handle with tube, Rollator frame and Basket.
- Open frame and slide padded backrest into frame brackets making sure snap bottoms protrude through holes.
- Unscrew tightening knob from handle and insert handle tube into frame at desired height lining up holes appropriately. Slide bolts through holes from the inside and screw on tightening knob until secure. - Safety Precautions:
- Please make sure the Rollator is fully opened, seat is down and the folding bar under seat is locked in the down position.
- Be sure that both knobs are fully tightened and are at equal heights. Test Rollator for stability before applying full weight to hand grips.
- Test the loop locks before operating the Rollator. When wheels are locked, lock bar on rear wheels should prevent wheels from turning. If the wheels turn while brakes are locked, please take unit back to dealer for adjustment. When locks are released, the wheels should turn freely.
- Always lock loop locks before sitting and do not use seat when unit is on an incline or uneven ground.
- Replace tires when significantly worn or damaged.
- Do not have anyone push you while you are seated on the Rollator. This is a walking aid only and is not to be used as a transportation device.
- Loop Lock Operation:
Always engage and disengage wheel locks on both sides simultaneously.
- To Slow Down or Come to a Temporary Stop - Pull up slowly on the loop locks with four fingers until unit slows down or comes to a temporary stop.
- To Temporarily Lock Wheels in Position - Press down on both loop locks with palms until you hear a “click” that will tell you wheels are locked.
- To Release Wheel Locks - Push up on both loop locks with palms of hand to original position.
WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov Specification
Particulars | Dimensions |
Handle Height (highest) | 38" |
Handle Height (lowest) | 33" |
Unit Width | 24" |
Unit Length | 28" |
Seat Depth | 12" |
Seat Width | 14" |
Seat Height | 23" |
Product Weight | 14lb |
Weight Limit | 300lb |
Warranty
Limited Lifetime warranty Questions & Answers
 | ItemQuestion ItemName - now |
|
Your question will show here once it will get approved. |
 | UserAnswer UserName - now Your Answer will show here once it will get approved. |
|
| How are the casters different then plain wheels? ron - 1/16/2017 12:53:41 PM | | |
 | A caster is a wheeled device typically mounted to a larger object that enables relatively easy rolling movement of the object.or A caster is a wheel on a rotating mount. A wheel is a circular component that is intended to rotate on an axle bearing. Or A wheel is a round object, usually with a center hole for a spindle. Customer Care - 1/28/2017 5:53:18 AM |
|
| What are the seat width, height, and depth? What is the weight limit? Kelly - 9/11/2016 8:33:30 PM | | |
| Thank you for contacting customer care service. Seat Dimensions 14"(W) x 23"(H) x 12"(D) Weight Limit 300lbs. Customer Care - 9/12/2016 2:10:00 AM |
|
