Features

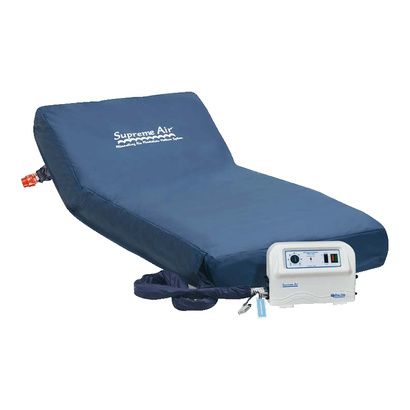

- Blue Chip Supreme Air Alternating Pressure Mattress System includes:
- Mattress
- Pump Control unit
- Mattress Cover - Combines the most advanced technology and clinically effective features in a portable system
- Adjustable anchor straps secures mattress to bed frame
- Mattress cover:
- Vyvex III multi-directional stretch fabric transfers moisture away from the patient’s skin
- The cover is low shear, washable, anti-microbial, fluid resistant and fire retardant
- Cover is loose fitting and will conform to the patient - Pump control unit:
Control Unit includes two modes of operation
- Alternating Mode: Provides the therapeutic benefit of reactive hyperemia and redistributes pressure well below 32mmHg
- Static Mode: Provides gentle low air loss with constant pressure redistribution and support. This allows nursing to perform patient care - Bladders:
- Ventilated low air loss alternating pressure mattress bladders include 40 air holes in sacral and torso areas to help minimize skin maceration by reducing excess moisture under patient
- Ventilated bladders help in the prevention and treatment of pressure ulcers
- Air cells are constructed of laminated medical grade nylon and (TPU) thermal polyurethane fabrics
- This combination ensures strength, durability and patient comfort
- Four bladder heel section provides advanced dynamic therapy specific to the prevention and treatment of heel ulcers - Note:
- This item cannot be returned or exchanged once they are opened due to hygienic reasons - Optional accessories available separately:
- Blue Chip Inflator
- Blue Chip Pump For Supreme Air Mattress System (Code 9601)
- Blue Chip Mattress For Supreme Air Mattress System (Code 9620)
More Information
- Pump Control Unit Features: Control unit includes two modes of operation:
- Alternating: Alternating pressure provides the therapeutic benefit of reactive hyperemia and redistributes pressure well below 32mmHg.
- Static: Static mode provides gentle low air loss with constant pressure redistribution and support. This allows nursing to perform patient care. - CPR Valve:
- CPR Valve quickly deflates mattress system for medical emergencies. A simple twist, releases the air immediately. This multi-purpose CPR Valve can be used to inflate or deflate the mattress with our optional blower pump. - Cover:
- Vyvex III multi-directional stretch fabric transfers moisture away from patients skin. The cover is low shear, washable, anti-microbial, fluid resistant and fire retardant. Cover is loose fitting and will conform to the patient.
Specification
| Particulars | Dimensions |
| Mattress: |
| Size | 35" x 80" x 8" |
| Air Cells | 18: 8" sacs (deep air cells)
15 alternating pressure cells
10 low air loss cells with air holes
3 static cells in head section |
| Heel Protection | Four Specialized Alternating Pressure Heel Protection Bladders |
| Weight | 18lb |
| Weight Capacity | 350lb |
| Pump: |
| Size | 12.5"L x 9"W x 4.5"H |
| Weight | 7lb |
| Electrical | 120V 60hz |
| Cycle Time | 10 Minutes |
| Air Flow | 6.5 to 9.5 Liters per minute |
| Current Usage: | less than 100 micro amps |
| Ground Resistance | 0.1 ohms maximum |
| Power Cord | 12ft cord |
| Construction | ABS fire retardant UL 94V-0 |
Warranty
Pumps: 1 year limited warranty,
Mattress:
1 year limited warranty,
Cover:
6 month limited warranty
