Features

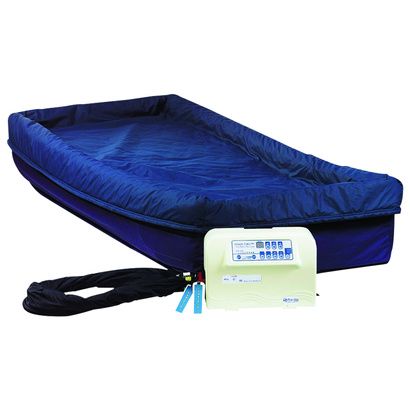

- Blue Chip Power-Turn Elite Lateral Rotation Therapy with True Low Air Loss Mattress System includes:
- Mattress
- Pump Control unit
- Mattress Cover - Full, Left or Right Turn mode is offered with either a 25 degree Small Turn or a 40 degree Big Turn
- Mattress replacement is designed to fit all standard hospital beds
- Side bolsters: 10" patented rail bolsters built into mattress perimeter
- Bolsters support the patient and ensures safety during rotation cycles
- Bladders:
- Ventilated low air loss cells have air holes throughout the mattress to help minimize skin maceration by reducing excess moisture under the patient
- Air cells are constructed of TPU, thermal polyurethane material. This combination insures strength,durability and patient comfortHose connections are color coded for easy connection - CPR:
- To quickly deflate mattress disconnect both hose connections from pump
- Air will immediately release from mattress - Blower Pump:
- The blower pump is controlled by a micro-processor which allows the caregiver total control of comfort and chosen therapy
- Cycle time ranges from 5 to 95 minutes
- Blower pump inflates the mattress within minutes
- This reduces the waiting time for therapeutic treatment to begin - Mattress cover:
- Vyvex III which is urethane coated, multi-stretch, low shear, moisture or vapor permeable and quilted cover, transfers moisture away from the patient’s skin
- Cover is washable, anti-microbial, fluid-resistant and fire-retardant - Weight capacity:
- 9800: 650lb
- 9842: 800lb - Also available (separately):
- Blue Chip Pump For Power-Turn Elite Mattress System (Code 9801)
- Blue Chip Mattress For Power-Turn Elite Mattress System (Code 9802) - Note:
- This item cannot be returned or exchanged once they are opened due to hygienic reasons
Specification
Particulars | Dimensions |
Mattress: |
Size | 36" x 80" x 9" |
Air Cells | 18: 9" deep air cells) Ventilated low air loss bladders with air holes throughout mattress |
Degree of Turn | 25º Small turn 40º Big turn |
Weight | 23lb |
Weight Capacity | 650lb |
Pump: |
Size | 17"L x 7"W x 10.5"H |
Weight | 12lb |
Electrical | 120V 60hz |
Cycle Time | 5 to 95 Minutes |
Air Flow | 60 to 250 Liters per minute |
Current Usage | 5A |
Ground Resistance | 0.1 ohms maximum |
Power Cord | 12ft cord |
Modes of Operation | Auto full turn Left turn Right turn Auto-firm Static |
Warranty
Pumps: 1 year limited warranty,
Mattress:
1 year limited warranty,
Cover:
6 months limited warranty
