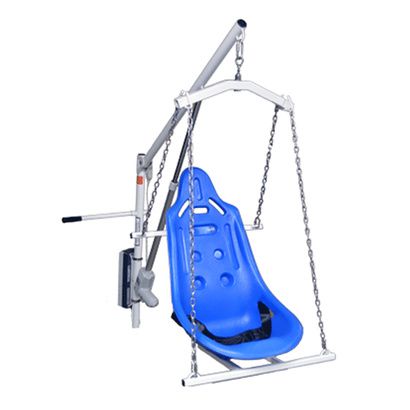

Aqua Creek EZ Series Pool Lift Hard Seat

Features of EZ Series Pool Lift Hard Seat

• Durable
• Powder coat finish on frame
• Stainless steel chains & frame
• Molded plastic seat
• Includes 4-point hanger
• Aqua Creek Patient Life can be fit with
  • Manual EZ Lift
  • Power EZ Lift
  • Super Power EZ Lift

What to buy with Aqua Creek Hard Seat & 4-Point Hanger Bar

• Aqua Creek Pool Lift Chest Strap
• Aqua Creek Pool Lift Pull-Out Leg Rest

How to install F-0320HSO-4C Pool Lift Hard Seat?

1. To install the hard seat option onto an EZ Series lift the sling seat must be removed.
2. To do this, simply unhook the hanger bar from the patient lift ;and store the hanger bar, chains, and sling seat together.
3. Once the sling seat has been removed, add the quick link to the u-bolt that is attached to the lifts boom arm.
4. Then, attach the 4-point hanger bar to the quick link followed by connecting the chains and hard seat to the 4-point hanger bar.
5. All pools and spas are different so the chains may have to be adjusted slightly to fit specific applications and/or personal needs.

How to install Aqua Creek 4-Point Hanger Bar?

1. The 4-Point Hanger Bar comes fully assembled, and only needs to be attached to the lift and sling to begin use.
2. The 3/8” quick link goes between the lift-eye and the 4-Point Hanger Bar eye-bolt.
3. Be sure to tighten the nut on the 3/8” quick link to make sure it can’t come off accidently.
4. The 4-Point Hanger Bar was designed to be used with 4-point slings from other manufactures.
5. Attach the 4-point sling to the hanger bar per the manufacturers’ instructions.
