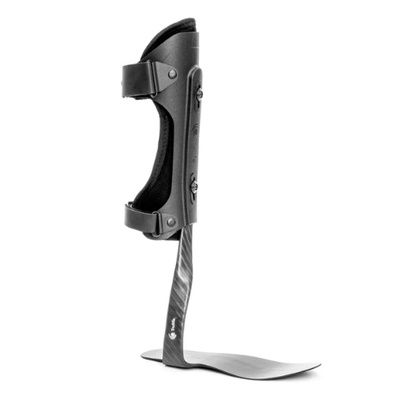

Trulife Matrix SuperMax AFO Brace

Brand: TRULIFE SKU: FH270L-02
Authorized Retailer
Product Option

Small, Left

SKU FH270L-02
$639.02 Each

Medium, Left

SKU FH270L-03
$671.06 Each

Large, Left

SKU FH270L-04
$671.06 Each

X-Large, Left

SKU FH270L-05
$671.06 Each

Small, Right

SKU FH270R-02
$671.06 Each

Medium, Right

SKU FH270R-03
$671.06 Each

Large, Right

SKU FH270R-04
$671.06 Each

X-Large, Right

SKU FH270R-05
$671.06 Each
Request quote

Trulife Matrix SuperMax AFO Brace is a carbon fiber foot brace recommended for treating unilateral or bilateral drop foot patients. The excellence of this carbon fiber ankle brace begins with its shell. It can be heat-molded and trimmed for a custom fit. The height of the anterior shell is also adjustable. The brace is available in sizes from small to extra-large and is made of a durable carbon composite.

What does Trulife Matrix AFO Includes?

  • Hex Key
  • Tibial Pad (2)


$614.02 $713.05

20% Off* on first autoship

5% Off* on future orders

Delivery Frequency

Earn $19.17 in HPFY rewards

One-time purchase

$639.02 $713.05

Earn $19.17 in HPFY rewards
For Assistance 877-278-6039

Trulife Matrix AFO Features

  • Material: Carbon Composite
  • Enhanced integration of the foot plate and strut for added durability and support
  • Footplate is uniquely designed to allow greater energy reflection at toe off
  • The AFO Brace has a streamline to fit in shoes better
  • Shank angle increased to 82° to improve knee extension movement at mid stance
  • Heat-moldable, trimmable and height adjustable anterior shell

What to buy with Trulife Brace

How to use Trulife AFO Brace?

Fitting Instructions

1. Remove inlay and place Matrix in shoe.

2. Place inlay over the top of the Matrix footplate. The inlay can be custom, off the shelf, or supplied with the user’s footwear.

3. Insert foot into shoe with laces loosened. Fasten straps

4. Check fit.

  • Perform trial walking. Ensure the knee is not hyper-extended.

Trulife AFO Brace Trulife AFO Brace

  • Check footwear is not distorted
  • Ensure the patient is comfortable and there are no areas of pressure which may lead to sores or ulceration

5. Make adjustments if needed

  • Footplate: The trimmable footplate (Max 2 and Medial T only) can be trimmed to fit a range of shoe sizes. The other products in the Matrix family can be adjusted by grinding to fit in patient’s shoe. Appropriate extraction and personal protective equipment must be used.

Trulife AFO Brace Trulife AFO Brace Trulife AFO Brace

  • Anterior shell (except Medial): Adjust height (using the hex wrench provided) so that it covers the tibial tubercle but does not impinge on the patella at full extension. The shell can be heat molded for optimal patient comfort. (Note: heat should not be applied to the carbon composite parts of the product.)

Trulife AFO Brace Trulife AFO Brace Trulife AFO Brace

  • Straps: The straps can be trimmed to the required length
  • Inlay: The inlay can be bonded to the Matrix footplate to secure its position if required

Trulife AFO Brace Instructions Manual

When to use Trulife Matrix AFO

  • Low to high activity patients with unilateral or bilateral drop foot
  • Peroneal nerve palsy
  • Incomplete paralysis
  • CVA and CMT

Caring Instructions

  • The product should be cleaned regularly by wiping with a damp cloth
  • The removable liner should be regularly removed and laundered
  • Matrix products should be used only as directed by a medical practitioner
  • Discontinue use immediately if you notice any excessive redness, abrasions or irritation
  • In the event that your Matrix becomes defective within the warranty period, please contact your distributor
  • Please dispose of your Matrix in accordance with local and national laws and regulations

Trulife Matrix AFO Specfication

Model No. Left Model No. Right Size Height Foot Length
FH270L-02 FH270R-02 Small 39cm - 42cm / 15.5" - 16.5" <25cm / <9.8"
FH270L-03 FH270R-03 Medium 41cm - 43cm / 16" - 17" 24cm - 27cm / 9.4" - 10.6"
FH270L-04 FH270R-04 Large 43cm - 46cm / 17" - 18" 25cm - 29cm / 9.8" - 11.4"
FH270L-05 FH270R-05 X-Large 43cm - 46cm / 17" - 18" 26cm - 31cm / 10.2" - 12.2"


Trulife AFO Warranty

  • 1 year on hardware
  • 90 days on soft goods
