Pain Management Medical Softcycle Pelvic Floor Stimulator With Anal Probe

Features of PMT Medical Softcycle Stimulator

1. Low Battery: Display required in accordance with 60601-2-11
2. Auto shut off: If the unit is turned on and the intensity level is not increased over 0 for more than 5 min, then the unit is shut off automatically
3. Open circuit cut-out: If the output is not connected to any load, the output intensity control (and display) re-sets to zero, and two beep sound is emitted from the unit
4. LED: When the output is over 0, the LED is lit
5. LCD backlight: Blue backlight, it is lighted right after any button is pressed and lasts 5 seconds
6. Battery life: At least 30 hours at 40mA when running prog URGE
7. Shelf life: The battery will last at least 8 weeks with the unit switched off
8. Storage conditions: In accordance with 60601-2-11, if possible
9. Memory:
   1. By pressing the TIMER + Strength UP buttons simultaneously, the accumulated usage time and average current intensity can be displayed
   2. By pressing the TIMER + Strength Down buttons simultaneously, the accumulated usage time and average current intensity can be cleared

Why choose Softcycle Pelvic Floor Stimulator?

• It is a convenient, affordable, reliable, and effective solution
• Helps patients improve their pelvic health and gain greater control over incontinence
• General Controls:
  • Channel: Single
  • Intensity: Up/down 120 steps of 0.67mA, 0 to 80mA across 500 Ohm Load (tolerance +/-10%)
  • Frequency: from 5 to 50 Hz (tolerance +/-2%)
  • Pulse width: 250 µs (tolerance +/-2%)
  • Program: 4 preset programs
  • Waveform: Asymmetrical
  • Battery: Lithium polymer battery, 3.7V/800mAH

What to buy with Pain Management Medical Soft Cycle

• Bard Cunningham Penile Clamp
• Urocare DRI Excel Bed-Wetting Alarm System
• Attends DermaDry Bariatric Briefs

Pain Management Medical Pelvic Floor Stimulator Display:

Softcycle Buttons:

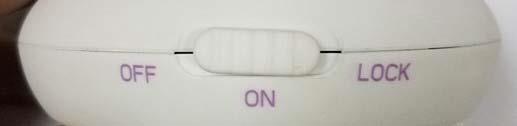

1. ON/OFF/LOCK Button:
   • To switch the unit ON:
     • Slid the button to the “ON” position in the center
     • When the unit is switched to ON, an audible “Beep” sound will be heard
     • When the unit is on, the last used program will be automatically started. The strength returns to about 50% of the level that was being used when the unit was switched off. This simplifies start-up dramatically.
   • To switch the unit OFF:
     • Slid the button to the “OFF” position at the left
   • To switch unit LOCK:
     • Slid the button to the “LOCK” position at the right
     • When the unit is locked, the PROG button and TIMER button are disabled; the user can not change the program and adjust the timer. Only intensity can be adjustable.
2. Strength UP Button (up arrow button):
   • To increase strength:
     • Press and hold down this button until the required strength is achieved. Or, press and release to increase in soft and gentle steps.
     • The unit will remain in the “Work” part of the cycle for 5 seconds while the strength is being adjusted
3. Strength DOWN Button (down arrow button):
   • To decrease strength: Hold down the button and strength will decrease steadily in 0.5 steps
4. Program Button:
   • The Soft cycle has specifically selected programs. When you switch on the unit, program URGE is initiated automatically.
   • Next time when it is switched on, the program will default to the one last used
   • Each time the “PROG” button is pressed, the program is changed. The screen displays the program selected
5. Timer button:
   • The timer only works in MIXED and TONE programs
   • The timer can be set to “C” (continuous) -10min-30min-45min-60min-90min in sequence
