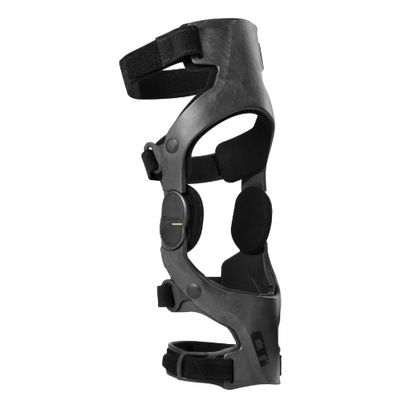

Ossur CTi3 Knee Brace Features
- Enhanced construction - Lightweight, high-strength carbon composite frames provide the optimal stiffness-to-weight ratio
- Anatomical fit - Designed to fit a wider range of leg shapes and includes an Accutrac hinge to follow the knee’s anatomical movement closely
- Elevated comfort - Unique liners enhance comfort with their special tread block pattern, which provides a balance of cushion and ventilation
- Easy-to-use accessories and replacement parts, including MX kits, replacement strap sets, liner sets, and flexion stops
- Available in 4 sizes, right and left.
CTi3 Knee Brace User Manual
Ossur Knee Brace Parts
- A - Yellow line on the Hinge
- B - Condyle Pads
- C - Lower Cruciate Strap
- D - Bottom Strap
- E - Upper Cruciate Strap
- F - Top Strap
- G - Extension Stop
- H - Impact Guard
- I - Elastic Cord (sold separately)
When to use?
Ossur CTi3 Knee Brace can be used in a variety of situations, including:
- For knee conditions that may benefit from increased AP and ML stability and protection, such as injuries to the ACL, MCL, LCL, PCL, rotary, and combined instabilities
- Knee ligament injuries
- Knee instability
- Knee osteoarthritis
- Athletic activities
Frequuently Bought Together
Measurement Instructions
Size |
M/L Width |
Thigh Circumference |
Distal Patella Circumference |
Right |
Left |
Small |
8.9-10.2 cm (3.5”-4”) |
40-47 cm (15.7’’-18.5’’) |
28-34 cm (11’’-13.4’’) |
CTI-22002 |
CTI-23002 |
Medium |
10-11.4 cm (3.9’’-4.5’’) |
45-55 cm (17.7’’-21.7’’) |
34-38 cm (13.4’’-15’’) |
CTI-22003 |
CTI-23003 |
Large |
11.2-12.7 cm (4.4’’-5’’) |
52-51 cm (20.5''-20.1'') |
38-41 cm (15’’-16.1’’) |
CTI-22004 |
CTI-23004 |
X-Large |
12.5-14 cm (4.9’’-5.5’’) |
58-67 cm (22.8’’-26.4’’) |
41-44 cm (16.1’’-17.3’’) |
CTI-22005 |
CTI-23005 |
Note: M/L Width measurements are the preferred and most accurate measurement for CTi. Distal Patella Circumference can be used in place of M/L Width. Circumference measurements are approximate.
How to use CTI3 Knee Brace?
Device Application
- While seated, bend your leg to 90°.
- Unfasten all four straps from the lateral/outside of the device.
- Place the device on your leg so that the yellow line on the Hinge (A) is slightly above the center of your kneecap. This will allow the device to seat properly when you stand. Note: Use any combination of the Condyle Pads (B) supplied to widen or narrow the width of the device at the knee.
- Attach the Lower Cruciate Strap (C) (directly below the knee) first, as this strap helps create the brace-to-bone contact required to help keep the device in place.
- Next, snugly fasten the Bottom Strap (D).
- Continue with the Upper Cruciate Strap (E), located just above the knee, and then fasten the Top Strap (F).
- Note: Overtightening the top two straps can cause the device to migrate.
How to remove?
- Sit down and bend the knee at an 80° angle with the foot flat on the floor.
- Unfasten all posterior straps of the device and attach the straps back to themselves.
- This will make it easier to put the device on next time and prolong the straps' life.
Clean and Care Instructions
- Hand-wash using mild detergent and rinse thoroughly.
- Air dry.
- Note: Do not machine-wash, tumble dry, iron, bleach, or wash with fabric softener.
- Note: If the device is used in salt water or chlorinated water, rinse it with fresh water and air dry. Hinge
- Remove foreign materials (e.g., dirt or grass) and clean them using fresh water.
CTi3 Knee Brace Size Chart
Size |
M/L Width |
Thigh Circumference |
Distal Patella Circumference |
Right |
Left |
S |
8.9-10.2 cm (3.5”-4”) |
40-47 cm (15.7’’-18.5’’) |
28-34 cm (11’’-13.4’’) |
CTI-22002 |
CTI-23002 |
M |
10-11.4 cm (3.9’’-4.5’’) |
45-55 cm (17.7’’-21.7’’) |
34-38 cm (13.4’’-15’’) |
CTI-22003 |
CTI-23003 |
L |
11.2-12.7 cm (4.4’’-5’’) |
52-51 cm (20.5''-20.1'') |
38-41 cm (15’’-16.1’’) |
CTI-22004 |
CTI-23004 |
XL |
12.5-14 cm (4.9’’-5.5’’) |
58-67 cm (22.8’’-26.4’’) |
41-44 cm (16.1’’-17.3’’) |
CTI-22005 |
CTI-23005 |
