Nitro Euro-Style Four Wheel Rollator
Includes:
- Back Rest
- Bag
- Operating Instructions
Key Features:
- Attractive, Euro-style design
- Back support height easily adjusts with tool-free thumb screw and handle height with unique push button
- Unique caster design enhances turning radius
- Brake cable inside frame for added safety
- Clamp holds the Nitro closed when frame is folded
- Cross brace design allows for side-to-side folding and added stability
- Seat with fold-up handle is durable and comfortable
- Frame can be folded with one hand for ultra-compact storage and portability
- Unique attachment is secure when aluminium rollator is opened or folded
- Large 10" front casters for easy maneuverability and indoor or outdoor use
- Comes with removable carry pouch
- Conforms to a number of people who need to use it
- Click Here for User Manual
- Click Here for Parts Description
- How to change Back on a Nitro
- How to change Brake on a Nitro

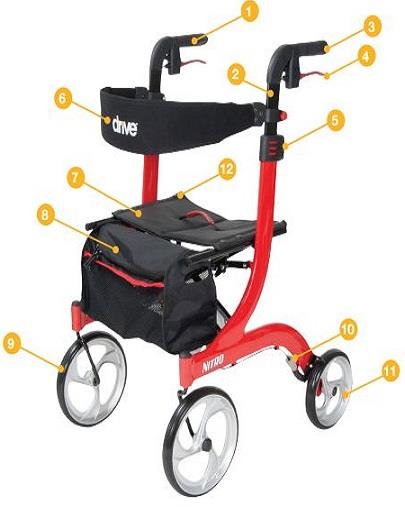

Important Parts: | 1. Handgrip |
| 2. Adjustable tubing handgrip |
| 3. Rear reflector on handgrip |
| 4. Brake lever |
| 5. Interlock button for handgrips |
| 6. Back Rest |
| 7. Seat |
| 8. Bag |
| 9. Front wheel |
| 10. Brake adjust screw |
| 11. Rear wheel |
| 12. Safety bow |
Operating Nitro Euro-Style Rollator
Unfolding The Nitro:
- Use only as a walking aid.
- Use only on even and solid surfaces.
Height Adjustment:Press the red release buttons for handgrips below and pull the handgrip upwards at the same time. As the handle moves, release the button. This automatically locks in the next possible height. Repeat this process until the desired height is reached.
Braking And Locking:- Pull both brake levers upwards to apply the brakes while the Nitro is moving. Always brake slowly and steady.
- Press both brake levers down to apply the locks while the Nitro is stationary. Pull up the brake levers and release to release the locks.
Sitting:Position the Nitro on an even and solid surface. Lock the brakes (parking position). The Nitro must stand and must not slip. Sit straight up and do not lean backwards.
Folding For Transport / Storage:- To fold, pull seat upwards by the handle on the seat plate as shown in figure 1.
- The Nitro can now be folded complete and secured by using the red safety clasp as shown in figures2 and 3.
Safety Instructions:
- Use only as a walking aid.
- Use only on even and solid surfaces.
- Maximum user weight: 300 lbs.
- Regularly check the screws and fasteners on the Nitro and retighten if necessary.
- Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.
- Do not expose the product to temperatures above 104 degree F for an extended period of time, as this can cause the Nitro parts to overheat and burn the user.
- Please make sure the four wheel Rollator is fully opened, seat is down and the folding bar under seat is locked in the down position.
- Be sure that both knobs are fully tightened and are at equal heights. Test Rollator for stability before applying full weight to hand grips.
- Test the brake lever before operating the Rollator. When wheels are locked, lock bar on rear wheels should prevent wheels from turning. When locks are released, the wheels should turn freely.
- Always lock the brake lever before sitting and do not use seat when unit is on an incline or uneven ground.
- Replace tires when significantly worn or damaged.
- Do not move rollator while seated. This is a walking aid only and is not to be used as a transportation device.
Specification
| Particulars | Dimensions |
| Handle Height Highest | 38.25" |
| Handle Height Lowest | 33.5" |
| Unit Width | 23" |
| Unit Length | 27.75" |
| Seat (depth) | 10" |
| Seat (width) | 18" |
| Seat (height) | 20.5" |
| Product Weight | 17.5lb |
| Weight Limit | 300lb |
Warranty
Limited Lifetime warranty on Frame
5 year warranty on Brake Handle and Housing
Questions & Answers
 | ItemQuestion ItemName - now |
|
Your question will show here once it will get approved. |
 | UserAnswer UserName - now Your Answer will show here once it will get approved. |
|
| What is the width when it is folded? Keith J Tieszen - 6/24/2017 3:26:11 PM | | |
 | The folded width of Drive Nitro Euro-Style Walker is 10.6" approximately. Customer Care - 6/26/2017 8:04:29 AM |
|
| What is the weight of Nitro Mary Walsh - 5/14/2017 11:44:54 AM | | |
| Drive Nitro Euro-Style Aluminum Four Wheel Rollator weighs 17.5lb. Customer Care - 5/15/2017 6:14:22 AM |
|
| How can I remove the bag? Robert - 3/25/2017 3:55:54 AM | | |
| To remove bag from Nitro Rollator, twist knobs located on the front end of the seat frame outward. Then pull out knobs and slide bag out of receptacle. To replace bag, fold the Nitro slightly and reverse the procedure. Customer Care - 3/27/2017 12:23:40 AM |
|
| How should I clean it? Jody - 3/25/2017 3:55:11 AM | | |
| Clean Nitro Euro-Style Four Wheel Rollator regularly by hand with a damp cloth. Do not use aggressive detergents. Customer Care - 3/27/2017 12:22:49 AM |
|
| What is the semi height? I am 5'21/2" Clem Mathis - 1/24/2017 3:25:30 PM | | |
| The overall height of Drive Nitro Euro-Style Aluminum Four Wheel Rollator is 33.5 inches. Customer Care - 1/25/2017 2:35:25 AM |
|
| My apologizes for the incomplete email address on the earlier note. My question is - Your description describes the front casters as being a fork design. However, all of your photos show a much less desirable bent caster/spindle design. Which is correct?
Dr. Norm Asper - 1/13/2017 5:53:49 PM | | |
| Drive Nitro Euro-Style Aluminum Four Wheel Rollator front casters are not fork design. The wheels shown in the photos are what the Nitro Rollator comes with. Customer Care - 1/18/2017 5:28:44 AM |
|
