Drive Nitro DLX Four Wheel Rollator

Drive Nitro DLX 4 Wheel Rollator Features

• Back support height easily adjusts with tool-free thumb screw
• Caster fork design enhances turning radius
• 10" front casters allow excellent steering and rolling comfort
• Easily folds with one hand to ultra-compact size for storage
• Cross-brace design allows for side-to-side folding and added stability
• Handsome and removable deluxe zippered storage bag with unique attachment to keep bag securely in place when Nitro is open or folded

Benefits of Drive Nitro DLX Rollator

• Attractive, Euro-style design
• Lightweight frame
• Handle height easily adjusts with unique push button
• Easily folds with one hand to ultra-compact size for storage
• The tires are made of polyurethane material

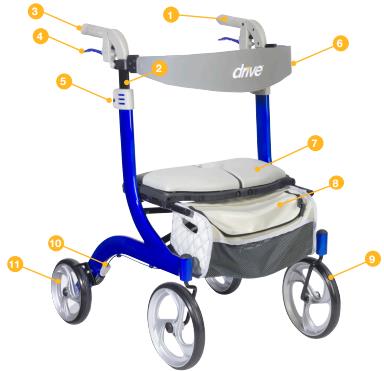

Drive Nitro DLX Parts Description

		1. Handgrip
		2. Adjustable tubing handgrip
		3. Rear reflector on handgrip
		4. Brake lever
		5. Interlock button for handgrips
		6. Back Rest
		7. Seat
		8. Bag
		9. Front wheel
		10. Brake adjust screw
		11. Rear wheel

What to buy with Drive DLX Rollator?

• Drive Nitro Cup Holder
• Drive Nitro O2 Tank Holder

How to operate Nitro DLX Rollator?

Unfolding The Nitro DLX Rollator

Position the Nitro on its wheels. Press both pipes from the seat downwards until they interlock.

Height Adjustment of Drive Nitro Rollator

Press the blue (tan) release buttons for handgrips below, as shown in the figure and pull the handgrip upwards at the same time. As the handle moves, release the button. This automatically locks in the next possible height. Repeat this process until the desired height is reached.

Braking And Locking of Drive Nitro

• Pull both brake levers upwards to apply the brakes while the Nitro is moving. Always brake slowly and steady.
• Press both brake levers down to apply the locks while the Nitro is stationary. Pull up the brake levers and release to release the locks.

The effect of the brakes can be affected by abrasion of the wheels. Regularly test the brakes.


Adjustment Of Brakes in Drive Nitro Rollator

To adjust the braking strength, adjust the brake by pressing the screw housing downwards and then turn left or right.

Folding Nitro DLX For Transport and Storage

To fold, pull seat upwards by the handle on the seat plate as shown in the figure.



Drive Nitro DLX4 Rollator User Instructions Manual


Drive Nitro DLX 4 Wheel Rollator Safety Instructions

• Use only as a walking aid!
• Use only on even and solid surfaces.
• Maximum user weight: 300 lbs.
• Regularly check the screws and fasteners on the Nitro and re-tighten if necessary.
• Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.
• Do not expose the product to temperatures above 104°F for an extended period of time, as this can cause the Nitro parts to overheat and burn the user.
• Please make sure the Rollator is fully opened, seat is down and the folding bar under seat is locked in the down position.
• Be sure that both knobs are fully tightened and are at equal heights. Test Rollator for stability before applying full weight to hand grips.
• Test the brake lever before operating the Rollator. When wheels are locked, lock bar on rear wheels should prevent wheels from turning. When locks are released, the wheels should turn freely.
• Always lock the brake lever before sitting and do not use seat when unit is on an incline or uneven ground.
• Replace tires when significantly worn or damaged.
• Do not move Rollator while seated. This is a walking aid only and is not to be used as a transportation device.
