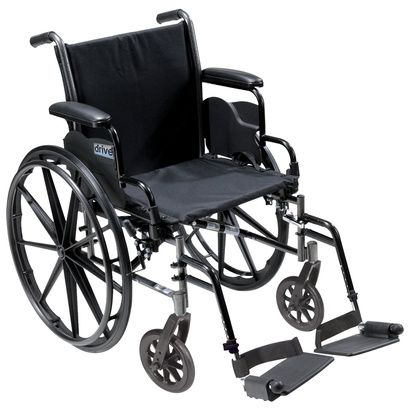

Drive Cruiser X4 Lightweight Dual-Axle Wheelchair With Swing-Away Footrest

Authorized Retailer Badge
Full Arm Drive Cruiser X4 Lightweight Dual-Axle Wheelchair With Swing-Away Footrests Flip Back

Shipping Charges Applicable

Shipping Charges Applicable


Item# Description Pkg availability reward$ Price Blank
Item #: CX416ADFA-SF
Seat 16" W, Full Arm
Each In stock

Drive Cruiser X4 Lightweight Dual-Axle Wheelchair With Swing-Away Footrests features frame style that eliminates seat guides and allows for custom backs and accessories. The flip-back, removable arm is height adjustable from top of seat rail 10 inches to 14 inches and features a front mounted easy to use lever release mechanism. It is easy to propel and transport. It weighs 34 pounds or less when properly equipped in the basic configuration (Excluding front rigging). The aluminum and carbon steel blended frame with combination powder coated and silver vein finish is attractive, chip resistant and easy to maintain.


  • Drive Cruiser X4 Lightweight Dual-Axle Wheelchair With Swing-Away Footrests has padded armrests that provide added patient comfort
  • Height adjustable segmented back
  • Durable, flame retardant nylon upholstery resists mildew and bacteria
  • Patented adjustable depth seat. 16" and 18" on chair depths
  • 3 position quick release rear axles mounted on Composite Mag-style wheels with composite hand rims are lightweight and maintenance free
  • Polyurethane rear tires and composite casters offer superior performance, smoother ride and are lightweight
  • Dual over center cross links provide added rigidity
  • Composite footplates with heel loops are durable and lightweight
  • Precision sealed wheel bearings through-out ensure long lasting and reliability
  • 8" front casters have 3 height adjustments and angle adjustments
  • Triple rear axle positions provides easy transition of seat height from standard to hemi level
  • Comes with push-to-lock wheel locks
  • Height adjustable flip back desk/full arm

More Information

  • Use and Safety
    Wheel Locks

    - Engage both wheel locks before getting in or out of chair, leaning forward in chair, or while in an elevator or wheelchair lift. Proper adjustment of wheel lock is at least 1/8" when locked. Locks are engaged by pushing handle completely forward. Tighten nut and bolt to secure in position
    - Solid rubber tires need minimal maintenance, but should be cleaned occasionally with a damp cloth. Replace if tires become severely worn or cracking appears
    Front Casters
    - Casters should be checked periodically and lubricated occasionally. Lubricate by removing fork and greasing caster stem bearings. Reassemble fork and wheel by tightening nuts until no play remains, but wheels roll freely
    Removal of swing-away foot rests/leg rests
    - Release lock by pushing on the front rigging lever. Swing away foot rest /leg rest out and sideways. Lift to remove
    Adjusting length of footrest/leg rest
    - When adjusting length of foot rests or leg rests, user should be sitting in wheelchair with feet on the foot plates. Loosen bolt on the clamp around support assembly. Raise or lower foot plate to desired position that will provide maximum support of thighs. Footrest should not be lower than 2-1/2" from the ground to ensure clearance
    Adjusting/elevating leg rest
    - Lift foot plate on leg rest assembly to desired position. Release leg rest assembly and it will automatically lock into place. To lower, push out on leg rest lever and lower foot plate to desired position
    - Large rear wheels should be inspected at least once a month to ensure proper tightness. If wheel wobbles or is loose, release lock nut and tighten axle bolt slightly. Test for proper tightness by learning chair to one side and spin adjusted wheel
    General Care
    - Wipe chrome parts with a clean, soft cloth at least once a week. All metal parts can be cleaned with auto wax or similar products. If exposed to moisture, dry immediately
    To Open Chair
    - Open wheelchair by tilting to one side and pushing down on seat rail until fully opened
    To Close/Fold Chair
    - First fold foot plates to vertical position. Grab seat with both hands at front and back edge and lift. Or, tilt chair to one side and lift up on seat rail
    Removable Arms
    - Remove arms by depressing spring button and lifting arms out of front and rear sockets
  • Warning
    - Do not attempt to adjust or operate wheelchair without reading carefully all instructions in this manual
    - This wheelchair has not been approved as a seat that can be used within vehicles of any kind
    - Always transfer wheelchair user to a vehicle manufacturers approved seat and use safety restraints available
    - Do not operate this wheelchair on roadways, streets or any surfaces with vehicular traffic
    - Do not attempt to operate on inclines 10° or greater without proper assistance
    - Be sure to completely engage wheel locks when getting in and out of wheelchair or when in elevator or wheelchair lift
    - Wheelchair should be on a smooth, stable and level area with wheel locks engaged before transferring user in or out of wheelchair
    - Do not adjust foot rests any lower than 2-1/2" from floor
    - Before reaching or leaning forward, rotate casters to front of the wheelchair engage wheel locks to help prevent wheelchair from tipping over
    - Do not lean over or apply weight to the top of wheelchair back. This can cause wheelchair to tip over
    - When trying to extend arms over back, only reach as far as your arm can extend without having to alter your seating position
    - DO NOT stand on wheelchair
    - DO NOT use wheel locks to slow your descent down an incline
    - Abruptly changing directions while going down an incline could cause instability or possible tipping over

Warning WARNING: Cancer and Reproductive Harm –


Particulars 16" 18" 20"
Product Overall Width Open 23" 25" 27"
Width Closed 12" 12" 12"
Height 36" 36" 36"
Seat-to-Floor Height 17" 18" 19"
Back Height 16" - 17.5" 16" - 17.5" 16" - 17.5"
Length with Riggings 43" 43" 43"
Product Weight without Riggings  32 lbs 34 lbs 36 lbs
Carton Shipping Weight  46 lbs 48 lbs 50 lbs
Weight Limit 300 lbs 300 lbs 300 lbs


  • Warranty on Frame : Limited Lifetime
  • Warranty : Limited Lifetime
