DonJoy IceMan CLEAR3 Cold Therapy Unit

Features of DonJoy IceMan CLEAR3 Cold Therapy Unit

• Clear cooler: The clear plastic cooler allows for easy monitoring of the water level and ice supply
• Adjustable temperature control: The unit has a temperature control that allows patients to adjust the temperature of the water to meet their specific needs
• Large ice reservoir: It has a large ice reservoir that holds enough ice for extended periods of use
• Easy to use: This is simple to set up and use, and can be operated by the patient or caregiver
• Portable: Lightweight and portable, making it easy to transport from home to the hospital or clinic
• Continuous cold therapy: The built-in pump circulates cold water from the cooler to the ice pad, providing continuous and even cooling to the affected area
• Reusable pad: Ice pad is removable and can be reused, making it a cost-effective solution for long-term recovery

Note: This item is non-returnable due to hygiene purpose

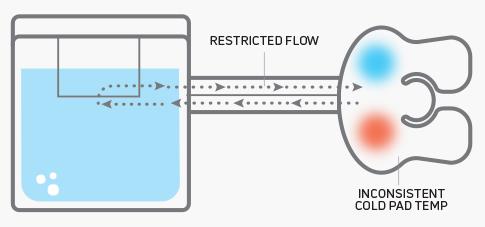

How does Iceman Ice Machine work?

Frequently Bought Together

• Donjoy Wrap-On Non-Sterile Pads
• Donjoy Universal Cold Pads
• Donjoy Dura Soft Shoulder Wrap

How to use Donjoy IceMan Cold Therapy Unit?

Chronic or Injury Application

1. Add ice to the level indicated inside the unit, and then add 2 quarts or 2 liters of water.
2. Apply the site-specific pad to the area to be treated. The pad should be applied over a thin layer of gauze or stockinette. Do not apply the cooling pad directly to the skin.
3. Connect the cooling pad to the hose extending from the cooler, making sure the connectors snap into place tightly together (listen for an audible click).
4. Plug the power supply into the wall.
5. Connect the power supply cord provided with the unit to the connector located on the front of the cooler. This will immediately start the motorized pump.
   Warning: Use only the power supply that came with this unit. Failure to do this could damage the pump, the power supply, or both.
6. Adjust the temperature control on the hand console starting at the blue dot (allow 10 minutes for the temperature to stabilize) and adjust to the temperature prescribed by the physician (indicated by the thermometer).
7. When the ice has melted, refill it with ice and water. (Make sure the device is unplugged during the refilling procedure.)

Post Surgery Application

1. Add ice to the level indicated inside the unit, and then add 2 quarts or 2 liters of water.
2. Apply the site-specific pad over the incisional area. A thin layer of dressing should be between the pad and the skin.
3. Place a layer of cast padding, 1/2” to 1”, over the cooling pad. Utilize an elastic wrap under medium tension to wrap the cooling pad until the pad and padding are covered. Make sure the ends of the hose extend out from under the wrap.
4. Connect the cooling pad to the hose extending from the cooler, making sure the connectors snap into place tightly together.
5. Plug the power supply into the wall.
6. Connect the power supply cord provided with the unit to the connector located on the front of the cooler. This will immediately start the motorized pump.
7. WARNING: Use only the power supply that came with this unit. DonJoy P/N 13-4882-0-00000. Failure to do so could damage the pump, the power supply, or both.
8. Adjust temperature control on the hand console starting at the blue dot (allow 10 minutes for the temperature to stabilize) and adjust to the temperature prescribed by a physician.
9. When the ice has melted, refill it with ice and water. (Make sure the device is unplugged during the refilling procedure.)

Precautions

• A routine check of the temperature must be made to ensure that appropriate treatment is being given.
• Special care should be used with prolonged cold therapy sessions. This includes frequently checking skin conditions and the temperature reading on the hand control.
• Use of this device below a 40°F (4°C) temperature reading is not recommended.
• Patients vary in sensitivity to cold. Routinely monitor patient and temperature readings to ensure appropriate individualized treatment guidelines are met.
• It is important to observe the patient’s skin condition during use. If redness or a change in skin sensitivity develops, discontinue the use of this product immediately and contact your physician.
• Be aware of any nerve irritation and/or muscular reaction associated with that skin sensitivity and irritation. Discontinue therapy until the cause is determined.
• The prescribing medical professional must ensure that the patient understands how to conduct such monitoring if the patient is using the unit outside of the prescribing medical professional's presence, at the advice of that medical professional.
• To reduce the risk of electrical shock, do not disassemble the unit; refer servicing to qualified personnel.

How do I turn it off?

• Unplug the power supply.
  WARNING: to avoid the danger of electrical shock, do not unplug the transformer from the wall with wet hands.
• Disconnect the pad from the hose.
• Drain the cooler after each use and wipe dry.

How to store?

• Unplug the power supply from the electrical outlet.
• To avoid the danger of electric shock, do not unplug the power supply with wet hands.
• Disconnect the pad from the hose.
• Drain cooler and wipe dry.
• Drain the pad by holding it so that the hose is hanging downward.
• Press the buttons at the end of the hose and allow all water to drain out of the pad.
• If cleaning is necessary, wipe down the device and hand wash pads and wrap them with mild soap and warm water. Air dry.

DonJoy IceMan Operating Instructions

Frequently Asked Questions

1. Other than standard ice cubes, what can I use to cool the water in my IceMan Clear3 Unit?

   Acceptable methods of cooling the water include putting water in Red Solo Cups or Tupperware and freezing them to make larger ice blocks, which can be removed and dumped into the unit.

2. Can I freeze water bottles and place them into the IceMan Clear3 Ice Machine unit?

   No, this is not recommended for a couple of reasons.

   • First, the plastic from the bottle creates a barrier between the ice and the water in the unit, which can prevent the water from reaching optimal therapeutic temperature.
   • Secondly, paper and/or glue from the water bottle label can break down into the water in the unit, creating issues if it travels into the hose/pad.

3. The pad doesn’t seem to feel very cold. How do I know the water is cold enough?

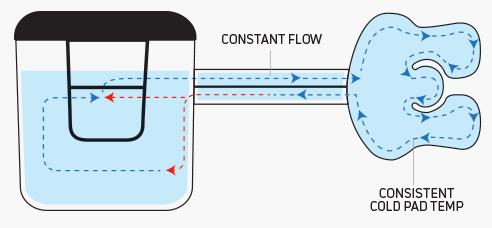

   • Any temperature below 55°F is in the therapeutic range for cold therapy. Our semi-closed loop system utilizes a mixing chamber and has a flow rate that delivers the water into the pad within the optimal treatment range 38°F – 42°F.
   • Double-check to make sure you have appropriately filled the unit with enough ice to cool the water.
