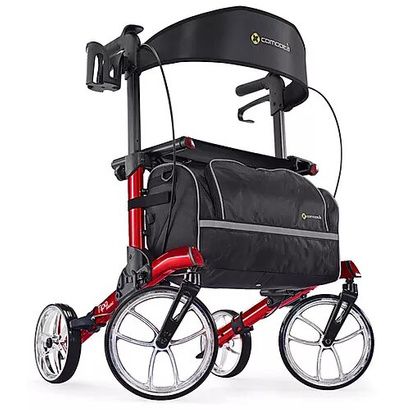

Comodita Tipo Classic Rolling Walker

Comodita Tipo Classic Rolling Walker Features

• Comodita Tipo Classic Rolling Walker has extra-large 10" front aluminum wheels for safer indoor and outdoor use
• Wide, comfortable nylon seat
• Adjustable handle height
• Padded ergonomic backrest
• Convenient removable cup holder included
• Cane holder included
• Travel bag included
• Convenient and spacious, removable, washable nylon bag
• Hand brake locks for safety while sitting
• Four light reflectors at the front and two at the back for additional safety
• Nylon bag with light reflecting strap for added security

Perks of Owning Tipo Classic Walker

• Double-fold action
• Front and rear light reflectors
• Removable, washable nylon bag to transport personal items
• Curb climber
• Removable Pisa cup holder
• Practical travel bag for transportation

Comodita Tipo Classic Rolling Walker - User Manual


What to buy with Comodita Walker

• Comodita Pisa Cup Holder
• Comodita Verona Cushion
• Rolyan Walker Splint
• Graham-Field Lumex Mobility Pouches

How to assemble the Comodita Tipo Classic?

1. Remove walker from the box and remove all cardboard protections. Put the walker on a flat surface.
2. Raise the handles to the upright position.
3. Lock the frame on both sides by bringing the folding lock lever (pic 1) up 180 degrees, so it points up (pic 2). Turn the folding lever 90 degrees towards the back wheel, so it slides into the folding lock lever plastic support (pic 3)
   Note: You can only slide the folding lock lever into the plastic support if it is in the correct position.
4. Release the plastic locking device that holds the walker folded.
5. Open the walker and press down the sides of the seat until you hear a "click", indicating that the seat is locked to the frame.
6. Adjust the handle height. The hand-grips should be at a height even with your wrists when standing relaxed behind the walker.
7. Insert both sides of the nylon bag into the metal support. Wrap the Velcro tape around the frame.

How to care for Tipo Classic Walker?

Periodic Brake Adjustment - To adjust the sensitivity of the brake:

• To tighten the brake (reduce the gap between the brake pad and wheel) rotate the adjusting nut clockwise
• To loosen the brake (increase the gap between the brake and the wheel) rotate the adjusting nut counterclockwise

Warnings-

• Over adjustment of the brake might prevent the wheels from moving freely
• Under adjustment of the brake may cause the brake pad not to engage at all
• Do not use walker if brakes are not working properly

Operating Instructions of Comodita Tipo Classic

• To Walk:
  • Position yourself behind the walker and hold both handles firmly
  • Roll your walker slowly forward so that the rear wheels are a few inches ahead of your body
  • While maintaining a steady and safe roll forward, place your foot in line with the rear wheels
  • Repeat the movement with your other foot
  • To slow down, slowly squeeze the brake handles up
  • To lock the brakes, push down on the brake handles until the brakes “click” into locked position. Do not push it any further than this point
  • To unlock the brakes and resume walking, pull up the brake handles until you hear a “click.”
• To Use the Seat of Your Walker:
  • Make sure your walker is in a flat surface, not on an incline.
  • Lock the brakes before sitting
  • Make sure your feet rest flat on the ground.

Comodita Tipo Classic Rolling Walker Safety Instructions

• Do not use this product as a wheelchair
• Do not transport someone while sitting on this walker
• Do not exceed maximum weight capacity
• Brakes must be on locked position before sitting on the seat
• Do not self-propel the walker while seated
• Do not sit on the walker on an incline
• Inspect brakes before each use
• Do not use the walker if the brakes are not working properly
• All wheels must be in contact with the floor or ground at all times
• Backrest is not intended to support your full weight. It is intended to provide back support while you are seated
• Do not use in escalators, stairs, moving sidewalks or uneven surfaces
• Both feet should rest flat on the ground when sitting
• Always check if the seat is locked down and well connected to the frame when the rollator is open
