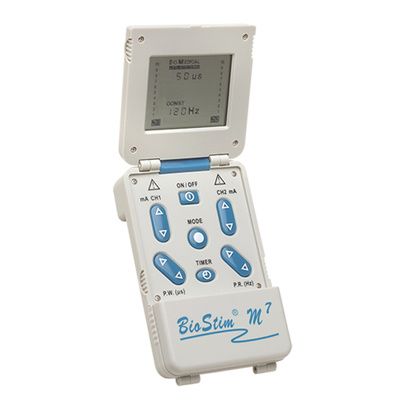

Biostim M7 Digital Tens Unit Features
- 7 programmable modes
- Continuous
- Width Modulation
- Rate Modulation
- Rate andWidth Modulation
- SD1
- SD2
- Cycled Burst
- This device comes with everything needed to manage therapy session
- Includes the exclusive proprietary Touch Proof design and robust Touch Proof lead wires
- Timer allows the patient to use the device for a specified period of time
- Includes
- Biostim M7 device
- (4) 2"x2" square reusable electrodes
- BMLS Touch Proof lead wires
- (2) AA batteries
- Zippered pouch
- Belt clip
What to buy with BioMedical Biostim M7 Digital Tens Unit
Caution
Federal law (USA) restricts this device to sale by or on the order of a physician so licensed by the State.
Contraindications
TENS devices can affect the operation of demand-type cardiac pacemakers. TENS is not recommended for patients with known heart disease without a physician’s evaluation of risk. Do not stimulate over the eyes or carotid sinus nerves. Do not apply TENS for 1. undiagnosed pain syndromes until etiology is established, 2. electrode placement that causes current to flow transcerebrally (through the head).
Warnings
This device should be used only under the continued supervision of a physician. TENS is ineffective for the pain of central origin, (i.e., appendicitis, hepatitis). TENS is of no cura¬tive value; it is an asymptomatic treatment that suppresses pain sensation which would otherwise serve as a protective mechanism on the outcome of the clinical process. The safety of TENS devices for use during pregnancy or delivery has not been established. For external use only. Electronic equipment such as EKG monitors and EKG alarms may not operate properly when TENS is in use. The user must keep the device out of the reach of children.
Precautions
Avoid adjusting controls while operating machinery or vehicles. Turn the stimulator off before applying or removing electrodes. Long-term stimulation at the same electrode site may cause skin irritation. Use only for the specific pain problem prescribed by the physician. Effectiveness is dependent upon patient selection.
Adverse Reactions
Possible allergic reaction to tape or gel. Possible skin irritation or electrode burn under electrode.
Specification
| Particulars | Dimensions |
| Size | 3.25" x 2.25" x 1-5/8" (82mm x 70mm x 45mm) |
| Weight | 4.9oz (132 grams) |
| Channels | Dual |
| Waveform | Asymmetrical rectangular biphasic (TENS) |
| Pulse Rate (adjustable) | 1Hz to 200Hz |
| Pulse Width (adjustable) | 10µs to 250µs |
| Stimulation Modes | |
| Continuous | Constant stimulation |
| Rate Modulation | 50% decrease/increase of set value over a 5 second cycle |
| Width Modulation | 50% decrease/increase of set value over a 5 second cycle |
| Rate/Width Modulation | 50% decrease in set value over a five second period. As rate increases, width decreases |
| Strength Duration 1 | Increase of set pulse width 40%, decrease of set pulse rate 45% and decrease of amplitude 10% over a 3 second period. Values return to original settings over the next 3 seconds |
| Strength Duration 2 | Increase of set pulse width 60%, decrease of set pulse rate 90% and decrease of amplitude 13% over a 6 second period. Values return to original settings over the next 6 seconds |
| Cycled Burst | 2.5 seconds on. 2.5 seconds off. adjustable rate and width |
| Output Voltage | 49 volts peak to peak |
| Amplitude | 0mA to 98mA |
| Power Supply | 2 AA batteries |
| Timer | Constant, 15, 30 or 60 minutes |
