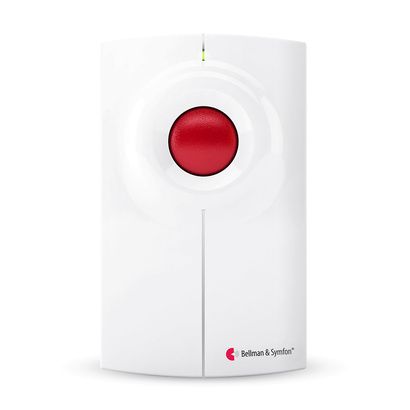

Bellman Visit Telephone And Multipurpose Transmitter

Features

• Bellman Visit Telephone And Multipurpose Transmitter helps you to notice when the telephone rings, no matter if you are several rooms away
• Signals the Visit receiver that notifies you with your own choice of flashes, sounds and vibrations
• Can also be customized for many other applications
• Multiple detection
  - Equipped with four separate triggers
• Customizable signal
  - Choose an individual alert for each trigger
• Adjustable radio key
  - Allows for multiple systems in one area
• Reliable transmission
  - Uses a highly robust radio link
• Long lasting power
  - Lasts up to 3 years on a standard battery
• Weight:
  - With battery: 110 g
  - Without battery: 70 g
• Colour: White with red push button.
• Also available (separately):
  - Bellman Visit Value Pack With Vibrating Pager and Visual Flash Receiver (Code HC-VISIT/VP1)
  - Bellman Visit Magnetic Switch for Door and Window (Code BE9023)
  - Bellman Visit Door Mat (Code BE9024)

More Information

• Installation and Connection:
  - The unit is generally mounted on the wall using the factory-fitted self-adhesive Velcro tape or with the wall bracket and screw supplied
  - The unit is connected to the Bellman Visit System by radio
  - The BE1123 Bellman Visit Telephone Transmitter has the following methods of connection:
  - Via modular connector to the telephone socket
  With a pushbutton
  - Via an external trigger, which is either connected via socket or via connection box
• Power supply
  Battery power:
  - 9 V 6LR61 alkaline
  - 9 V 6F22 lithium
  Operating time:
  - 6LR61 alkaline: approximately 5 years
  - 6F22 lithium: approximately 10 years
• Power consumption:
  - Active: 30 mA
  - Idle position: < 5 μA
• Radio function
  Radio frequency:
  - 868,3MHz
  Coverage:
  - The normal coverage between a transmitter and receiver in the Bellman Visit 868 System is approximately 200 metres with a clear line of sight. Coverage is reduced if walls and large objects screen off the signals. Any thick walls constructed of reinforced concrete will greatly affect coverage. The system may also be affected by radio transmitters such as TV transmitters, computers, mobile phones, etc. This means that a unit may work perfectly in one part of the room but not at all in another
• Activation
  - Via test button
  - Via analogue telephone network: 26 - 120 V RMS, 15 - 100 Hz
