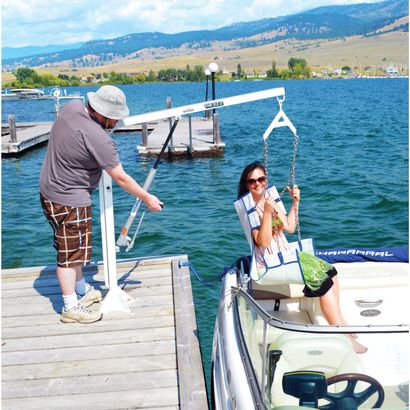

Aqua Creek EZ Manual Pool Lift

Aqua Creek EZ Pool Lift Features

• The frame on the EZ Pool Lift has been upgraded to a square tubing to replace the older round tubing
• The new square tube frame provides additional strength and a cosmetic upgrade
• Flexible Mounting Options is available with or without the in-ground mount
• Also optional surface-mount is available for existing concrete decks, wooden decks, and boat docks
• Swimming pool lifts for disabled persons are a huge factor in promoting the therapeutic action provided by swimming
• This above-ground pool hoist is a manually operated unit designed specifically for residential use
• Made from stainless steel and sporting a durable powder-coated finish
• It is made to be resistant to rust, corrosion and even the sun's UV rays
• Easily portable for convenient storage or relocation

What to Buy with Aqua Creek Manual Pool Lift

• Ergoactives Ergobaum 7G Royal Ergonomic Forearm Crutches For Adult
• Medline Adjustable Aluminum Cane
• Complete Medical Dual Comfort Wheelchair Cushion

How to Operate EZ Manual Pool Lift?

• You should always check for worn parts and loose bolt connections prior to each use
• All operators should familiarize themselves with all the Aqua Creek EZ Pool Lift lift components and their intended uses
• User should also be comfortable with all lifting procedures before attempting to lift a person from the lift
• An operator is required to transfer the person being lifted into the pool
• There are two different methods for loading the occupant into the harness, depending on the user's physical ability
• If they are physically able, they can place themselves into the harness without assistance
• If the user has very little use of their upper body, it will be necessary to follow these steps:
  • Raise the lift and the boom arm
  • Roll the user under the lift and make sure to engage the wheelchair's brakes
  • With the user facing the operator, slide the mesh seat sling under the user while they are still sitting in the wheelchair
  • Attach the lift's chain to the sling and overhead hanger bar, making sure that there is not excess slack in the chain
  • Make sure the chair connections are secure and that the mesh sling is even on both sides of the user
  • Pump the hydraulic ram handle to the raise the user to the height wanted
  • Rotate the lift so the user is positioned above the pool, making sure to never push on the actuator
  • Use the turn arm or place one hand on the boom and other on the mast
  • Lower the user into the water by pressing the handle towards the ram until it depresses the release pin
  • This hydraulic ram automatically controls the rate of descent for safety and control
  • Lower until the user in submerged enough in the water to allow an easy transfer
  • Repeat this same procedure to remove the user from the water
  • When not in use, remove the sling, hanger bar, and mast from the anchor socket and replace the protective cap

Precautions and Maintenance for EZ Pool Lift

• Safety:
  • NEVER permit children to play on or around the lift
  • Do not allow children to use the lift without adult supervision
  • NEVER use the lift with a dry pool
• Maintenance:
  • Use only fresh water to wash your lift
  • Do not wash with pool water
  • Use only clean, soft, non-abrasive cloths to wipe down your lift
  • Do not store lift in pump room or near chemicals
  • The lift may need to be bonded according to local code requirements
• Stain Removal Tips:
  • To remove stubborn stains from the finish, spray affected area with mild dish soap, rub briskly with a 3M Scotch Brite pad
  • Use white epoxy paint to touch up the finish
  • Apply wax to protect when dryAqua Creek Pool Lift Slings (F-032EZSB)

User Manual And Specifications

• User Manual for Hard Seat with 4-Point Hanger (F-0320HSO)
• User Manual for EZ Anchor 6"(F-033EZA)
• Specification of EZ Extension Anchor(F-031473EZ)
• Specification of EZ Pool Wood Deck(F-30600)
• Specification of EZ Pool Surface Mount(F-035EZSM)
• EZ Pool Specification(F-EZPL2)
• Specification of EZ Pool Anchor 10 Inch(F-30220)
• User Manual for EZ Pool Lift (F-03EZPLNA)
• Specifications Manual for EZ Pool Lift (F-03EZPLNA)
• Specifications Manual for Hard Seat with 4-Point Hanger (F-03EZPLA)
• Graph Chart for EZ Pool Lift Graph (F-03EZPLA)
• Aqua Creek Pool/Spa Profile Guide
• EZ Pool Lift - Sales Flyer
