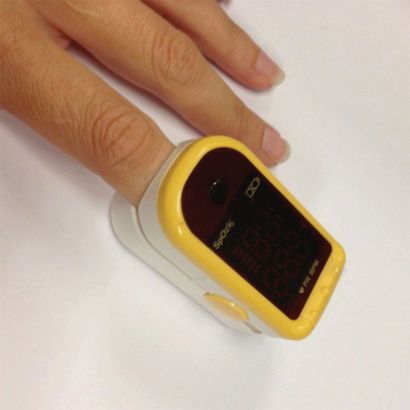

Sammons Preston Economy Finger Pulse Oximeter

Authorized Retailer Badge


Item# Description Pkg reward$ Price Blank
Item #: 81560630
2.25"L x 1.25"W x 1.5"H
Sammons Preston Economy Finger Pulse Oximeter is common, yet important device for checking patient SP (blood-oxygen saturation) and pulse rate. It is small and lightweight, weighing just 28 grams without batteries. Features digital LEDs display, low power consumption. It also displays PR and pulse bar. Automatically powers off indicates low battery. It takes two AAA alkaline or rechargeable batteries. Accommodates wide range of finger sizes from pediatric to adult.

Sammons Preston Economy Finger Pulse Oximeter Highlights:

  • Dimensions: 2.25"L x 1.25"W x 1.5"H
  • Measures blood-oxygen saturation and pulse rate
  • Small and lightweight
  • Indicates low battery

Operator's Manual

More On Economy Finger Pulse Oximeter

  • Operation Instruction
    - Install two AAA batteries into battery cassette before closing its cover.
    - Place clamp over finger nail.
    - Insert one finger into the rubber hole of the Oximeter fully.
    - Press the switch for one time on the front panel.
    - Finger and body should not tremble during measuring.
    - Read corresponding data on the display screen.
  • Note
    - Please use the medical alcohol to clean the rubber, inside the Oximeter, that touches the finger. Also, clean the test finger with alcohol before and after each test. (the rubber inside the Oximeter is medical rubber, which has no toxins, and is not harmful to the skin).
  • When your finger is inserted into the Oximeter, your nail surface must be upward.


Display TypeLED
Measurement range70%~99%
Accuracy80%~99%: ±2%; 70%~80%, ±3%; =69 no definition
Pulse Rate
Measure range30bpm~235bpm
Accuracy30bpm~99bpm, ±2bpm; 100bpm~235bpm, ±2%
Pulse IntensityBargraph Indicator

Power Requirements

Two AAA alkaline Batteries

Power consumptionLess than 40mA
Battery LifeTwo AAA 1.5V, 600mAh alkaline batteries could be continuously operated as long as 30 hours

Environment Requirements

Operation Temperature5°C ~ 40°C
Storage Temperature-20°C ~ +55°C
Ambient Humidity=80% no condensation in operation
=93% no condensation in storage


Length56mm ~ 62mm
Width32mm ~ 38mm
Height34mm ~ 38mm
Weight45g ~ 60g (including two AAA baateries)
