Rolyan Hand-Based Anti-Spasticity Ball Splint
Rolyan Hand-Based Anti-Spasticity Ball Splint

Rolyan Hand-Based Anti-Spasticity Ball Splint

Brand/Manufacturer: PATTERSON MEDICAL
Authorized Retailer Badge
  • Latex Free

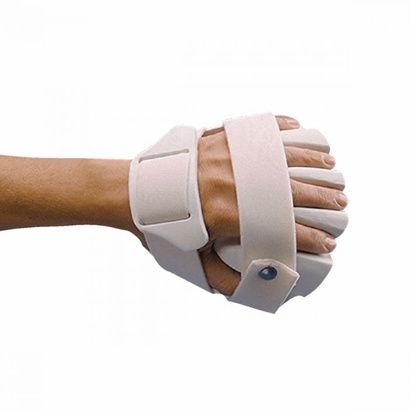

Rolyan Hand-Based Anti-Spasticity Ball Splint is pre-formed from the polyform splinting material. It positions the wrist, abducts the fingers and thumb and maintains the palmar arch in a reflex inhibiting position. Rolyan Hand-Based Ball Splint comes complete with a strapping system for fingers and thumb and a padded self-adhesive D-ring strap for the forearm. It is made of low-temperature thermoplastic, which can be modified.

Item #DescPkgPrice
A4194 Right, Small Each $105.65 $68.99
A4196 Right, Medium Each $86.99 $55.99
A4197 Left, Large Each $86.99 $55.99
A4198 Right, Large Each $86.99 $55.99

Rolyan Hand-Based Anti-Spasticity Ball Splint


  • Can be adapted easily
  • For size determination, measure the width of the 2nd to 5th MCP
  • Latex-free Splints
  • Color: White
  • Includes instructions

Indications For Use:

  • To help prevent deformity in the presence of mild to moderate hypertonicity
  • May be used following CVA, traumatic brain injury and with Parkinson disease


  • Not in the presence of wrist or hand fractures
  • Not for use over open wounds and infected areas
  • Not for use with severe edema

More On Rolyan Hand-Based Ball Splint

Instructions For Use:


  • Rolyan Splint, which is made from 1/4" (3.2mm) Polyform splinting material, can be modified for a better fit
  • Heat the area to be modified using a heat gun or water that is heated to 150 degrees to 160 degrees F (65 degrees - 70 degrees C) for one minute or until pliable
  • Heating the entire splint may cause it to lose its preformed shape
  • Polyform has a high degree of drape - for better results when modifying the material, shape it with stroking movements
  • Do not heat any of the splints near the rivet that holds the straps in place

Finger Strapping
  • Strap the fingers as shown below

  • Rolyan Hand-Based Anti-Spasticity Ball Splint

Wrist Strapping
  • These splints include a padded Polyform wrist brace, which may be heated and molded to the hand
  • Place it on the dorsal surface of the wrist with the longer edge placed distally and the padded side toward the skin
  • Mold it to the wrist
  • Position the wrist stabilizing strap, threaded through the padded brace, around the wrist


  • This splint is to be fitted initially by a healthcare professional who is familiar with the purpose for which they are prescribed. The healthcare professional is responsible for providing wearing instructions and precautions to other healthcare practitioners, care providers involved in the patient’s care, and the patient.
  • If unusual swelling, skin discoloration or discomfort occurs, use should be discontinued and a healthcare professional consulted.
  • Be careful that the straps are not so tight that they interfere with circulation.
  • After heating splinting material, always check its temperature before applying it to the patient.

Care And Cleaning:

  • The splint will lose its shape in temperatures over 135 degrees F (57 degrees C). It should be kept away from sources of heat such as ovens, hot water, open flames, and sunny car windows.
  • The splint may be cleaned with soap and lukewarm water.
  • The straps may be washed with soap and water, but the adhesive portion should not be moistened.
  • The splint and straps should be allowed to dry thoroughly before reapplication of the splint.

Specifications Of Rolyan Hand-Based Splint

Small3-1/4" to 3-1/2" (8.3cm to 8.9cm)
Medium3-1/2" to 4" (8.9cm to 10.2cm)
LargeOver 4" (10.2cm)

Customer Reviews

Questions & Answers

question image
What is this splint made of?
Hayley - 3/27/2017 6:55:41 AM
answer image
Rolyan Hand-Based Anti-Spasticity Ball Splint is made from low-temperature 1/4" (3.2mm) Polyform splinting material, which can be modified.
Customer Care - 3/28/2017 12:24:10 AM
question image
What does molding help in?
Julia - 3/27/2017 6:55:11 AM
answer image
Molding helps the Rolyan Hand-Based Anti-Spasticity Ball Splint to provide a better fit.
Customer Care - 3/28/2017 12:23:47 AM
question image
For modification what all do I need?
tessy - 3/27/2017 6:54:40 AM
answer image
You just need a heat gun or water that is heated to 150 degrees to 160 degrees F to heat the area to be modified.
Customer Care - 3/28/2017 12:23:32 AM
question image
How do you measure for size
Angie - 1/14/2016 6:41:13 PM
answer image
The specification tab on the attached product page will help you choose the size of the product.
Customer Care - 1/15/2016 12:54:10 AM
