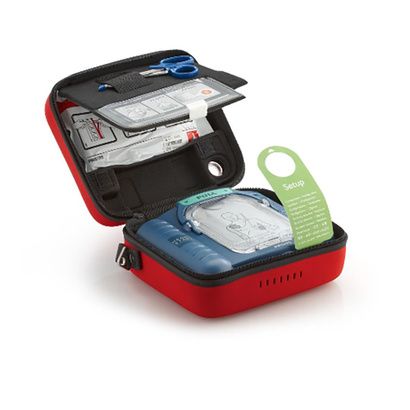

Philips HeartStart OnSite Defibrillator With Ready-Pack

For Questions, Please Call...
For Questions, Please Call...


Item# Description Pkg reward$ Price Blank
Item #: M5066A_R01
OnSite Defibrillator With Ready-Pack

Philips HeartStart OnSite Defibrillator With Ready-Pack is designed for simple and reliable operation. It is used to treat the most common causes of sudden cardiac arrest, including ventricular fibrillation (VF). The OnSite treats VF by sending a shock across the heart, so it can start beating regularly again. With minimal training one can potentially save life of a co-worker, friend or anyone else stricken with sudden cardiac arrest.


  • Philips HeartStart OnSite Defibrillator includes:
    - 1 HeartStart OnSite Defibrillator
    - 1 Pre-installed battery
    - 1 Pre-installed SMART pads cartridge
    - Set-up/Maintenance guide with expiration date tags
    - Owners Manual
    - 1 Quick Reference Guide
  • Easy-to-use, safe and reliable
  • Uses a highly accurate algorithm to determine whether the patients heart requires a shock
  • Uses clear natural voice instructions that talk to you through each step
  • Designed to only deliver a shock if one is needed
  • Senses and adapts to your actions
  • Also available (sold separately):
    - Philips Adult Trainer Cartridge With Pad Placement Guide (Code: M5073A)

More Information

  • Ready When Needed:
    - HeartStart Onsite is powered by a simple, safe, long-life (4-year) battery
    - Just click the battery in place, and the defibrillator is standing by, ready for use
    - Between uses, the defibrillator performs daily, weekly, and monthly self-tests of its electrical components, subsystems, and battery to help ensure continued reliability and readiness
    - A pads integrity test, which checks daily that the cartridge is properly installed and that the defibrillator pads are in working order, provides an additional level of assuranc
    - As long as the green  Ready light on the defibrillator is blinking, you can be certain the HeartStart OnSite is ready for use
    - If any part of the defibrillator needs attention, the  Ready light turns off and the defibrillator chirp to alert you
    - Pressing the flashing blue  Information button provides verbal guidance to help you identify and correct the situation
  • Easy to Use:
    - Using the HeartStart OnSite Defibrillator is simple
    - Pulling the green handle powers-up the defibrillator and activates voice instructions
    - These instructions are paced to your actions, to help guide you through the entire process, from placing pads on the patient to delivering a defibrillation shock
    - HeartStart OnSite determines if a shock is needed, based on its automated assessment of the victims heart rhythm
    - If a shock is needed, the defibrillator directs you to press the flashing orange Shock button
    - Then, HeartStart OnSite delivers a dose of low-energy biphasic therapy, a highly effective defibrillation waveform that is also gentle to the heart
    - If a shock is not needed, the OnSite Defibrillator instructs you to assess the patient and to perform CPR when necessary
    - While performing CPR, the defibrillators voice instructions can be activated to coach you on the frequency and depth of compressions
    - HeartStart OnSite also reminds you to call emergency medical services (EMS)
    - If EMS need a summary of care, it can be retrieved from the defibrillators internal memory
    - An EMS provider simply presses the button and HeartStart Onsite verbally recounts events from its last clinical use


Size2.8"H x 8.3"W x 7.4"D (7cm x 21cm x 19cm)
WeightWith battery and pads cartridge : 3.3lb (1.5kg)
Without battery or pads cartridge : 2.4lb (1kg)
TemperatureOperating: 32º F to 122º F (0º C to 50º C)
Standby: 50º F to 109º F (10º C to 43º C)
HumidityOperating: 0% to 95% relative, non-condensing
Standby: 0% to 75% relative, non-condensing
AltitudeOperating: 0 to 15,000 feet
Standby: 0 to 8,500 feet > 48 hours
and 8,500 to 15,000 feet < 48 hours
Energy DeliveredAdults: nominal 150 Joules into a 50ohm load.
Infant/Child: nominal 50 Joules into a 50ohm load.
Shock-to-Shock Cycle TimeTypically less than 20 seconds between shocks in a series.
Quick ShockAble to deliver a shock after the CPR pause typically in eight seconds
Voice InstructionsDetailed voice messages guide responder through use of the defibrillator
Shock DeliveryVia adhesive pads placed on patient;s bare skin as illustrated on pads
ControlsGreen SMART Pads cartridge handle, Green On/Off button, Blue i-button, Orange shock button
IndicatorsReady light; Blue i-button; Caution light


6 Months warranty
