Sammons Preston Homecraft Devon Elite Folding Toilet Support Rail

Features

• Homecraft Devon Elite Folding Toilet Support Rail has an installation that is recommended by a professional
• Wall Mounted Rail:
  - Back plate: 9" x 43.4"
  - Projection when folded: 7"
  - Rail length: 27.25"
  - Weight Capacity: 280lb

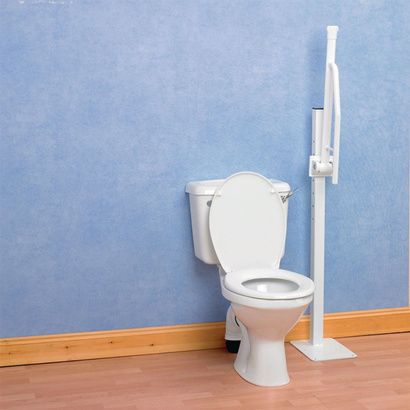

• Floor Mounted Rail:
  - Height from floor to top of the arm: 24-1/2" to 38-3/4"
  - Floor plate: 12-1/2"L x 8-3/4"W
  - Rail width: 1-3/4"
  - Rail depth 1"
  - Rail length: 27.25"
  - Weight Capacity: 279lb
• Wall Height-Adjustable Rail:
  - Height adjustment 9-1/2" in 2" increments

More Information

• These support rails should be installed by a qualified tradesman, who will choose the appropriate hardware for the specific installation.
• All fixing holes in the wall plate or floor plate must be used. The rail must be fastened securely, so it is able to support the total load applied on the rail.
• The rails can be lifted and secured in the upright position.
• Lift the rail from the locking mechanism and allow the rail to lower slowly to the level position. There is no need to keep hold of the rail while lowering.

• The rail can be cleaned with mild detergent and water. Must be dried after cleaning and before use.

• We recommend that the rail be installed by a qualified tradesman, for this reason we do not supply fixings
• Be sure that the rail is securely in place before applying downward force
• The rail is not intended to take the full weight of the user
• The rail is designed to take a maximum load weight of 127 kg/ 275 lbs/ 20 stone
