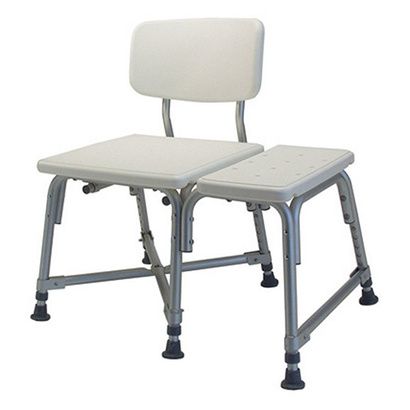

Graham-Field Lumex Bariatric Transfer Bench

Graham-Field Lumex Bariatric Transfer Bench provides assistance to those who have difficulty in stepping over bathtub walls. The drainage holes in seat minimize water build-up and the seat-height is adjustable in 1" increments. Its anodized aluminum frame is lightweight, durable and rust-resistant and reversible back attachment to accommodate any bathroom.


  • Graham-Field Lumex Bariatric Transfer Bench extra-deep seat provides added stability
  • Durable blow-molded plastic bench and backrest provide a 600 lb. weight capacity
  • Attractive platinum grey color
  • Comes assembled with tool-free back attachment
  • Maximum Weight Capacity: 600lb evenly distributed

More Information

  • Instructions for Use - Set-Up:
    - Remove frame and back from box
    - Place frame on side on a working surface
    - Attach the leg extensions to the transfer bench, if not attached already. Depress the buttons and slide the legs onto the frame until the buttons protrude fully from the desired holes
  • Attaching the Backrest (if not attached already):
    - Determine the side on which the backrest should be mounted by knowing which direction the user will face when sitting on the bench in the tub
    - Position the bench upright on a level surface
    - Locate the channel guides (4 each) on underside of seat. Align backrest support tubes with channel guides in position appropriate to step 1
    - Slide backrest seat support tubes through channel guides until seat support tube push buttons protrude fully through channel guide holes
    - CAUTION: Backrest is not designed to support the full weight of the user
  • Adjusting Leg Height:
    - Depress the height adjustment button and slide the lower leg upward or downward until the height adjustment button clicks into place in the desired hole
    - Repeat for other 3 legs
    - CAUTION: Ensure that all four legs are adjusted to the same height
  • Using Your Transfer Bench:
    NOTE: Be sure to move slowly throughout use to prevent injuries.
    NOTE: Children or those who need assistance should NOT be left unattended during use of this product
    From a seated position (such as a wheelchair):
    - Place your wheelchair next to the bench, facing the front of the bathtub
    - Engage wheelchair locks
    - Transfer your torso to the transfer bench first, and then lift your legs into the tub. Move slowly to prevent injuries
    - After bathing, lift your legs out of the tub first, then your torso.
    From a standing position:
    - Sit on the side of the transfer bench that is outside of the tub
    - Extend your arms to grab the support arm of the bench and slide your body over onto the bench. Lift each leg over the tub slowly
    - Position yourself to a comfortable position in center of bench
    - After bathing, lift your legs out of the tub first, then your torso slowly
  • Maintenance:
    - Use a mild soap and water solution, rinse with clear water, then dry with a soft cloth. Ensure that product is well rinsed before using
    - Never use organic solvents, abrasive cleaners, or scouring pads on any part of the product
    - Check fit and tightness of all nuts, bolts and knobs weekly to ensure that product is safe to use
    - To guarantee the best service from your product, always specify Lumex replacement parts
  • Warning:
    - DO NOT use this product without first completely reading and understanding these instructions and any additional instructional material such as owners manuals, service manuals or instruction sheets supplied with this product. If you are unable to understand the warnings, cautions or instructions, contact a healthcare professional, dealer or technical personnel before attempting to use this equipment - otherwise, injury or damage may occur
    - Users with limited physical capabilities should be supervised or assisted when using the transfer bench
    - Maximum Weight Capacity 600 lb - EVENLY DISTRIBUTED
    - Leg extensions with rubber tips MUST be in contact with the floor at all times
    - Make sure that all attaching hardware is tight at all times
    - Inspect rubber tips on the leg extensions for rips, tears, cracks or wear or if they are missing. Replace them IMMEDIATELY if any of these conditions exist
    - The transfer bench seat MUST be installed before sitting on the transfer bench
    - Notice for California Customers: California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm
Warning WARNING: Cancer and Reproductive Harm -




Overall depth


Overall width


Seat width


Seat depth


Minimum seat height


Maximum seat height


Clearance beneath frame

14" to 18"

Height of back support above seat



Lifetime limited warranty
