Future Call Picture Care Memory Corded Amplified Phone

FC-1007 Picture Care Phone Features

• Future Phone has bright LED lights for incoming calls
• Store on or off switch which prevents memories from accidentally being erased or changed
• Red 911 Emergency key and 1 one-touch speed dialing memory is backed up even if the unit is unplugged from the line
• Handset volume control key
• Hearing Aid compatible
• Receiving volume gain +40dB
• Picture size 1" by 1-1/2" x 10 pictures
• FC-1007 sp Speaker Phone dimensions: 9"L x 7"W x 3"H
• FCC approved

Future Call Picture Care Memory Phone User Manual

Benefits of Future Call Picture Care Amplified Phone

• Future Call Fc-1007 Last Number Redial: Picture Care Amplified Phone remembers the last number dialed. If the number dialed is busy or not answered, hang up. To redial the last number automatically, press the Redial button.
  NOTE: Same telephone number can be redialed as many times as required. However, once another number is dialed, the last number is erased.
• Picture Call Phone Ringer OFF / LO / HI: FC-1007 Future Call Memory Picture Phone provides a ringer adjustment of High, Low, or Off. When the user does not want to get disturbed, he can slide the switch off. Now he can still make outgoing calls without being bothered by the incoming calls.
• Flash Button Picture Telephone: The Flash button is used to retrieve a new dial tone after ending a call. The phones with picture buttons also prove to be useful for special telephone services such as call waiting and three-party calling. Press briefly, release and perform the custom call procedure.
  NOTE: Call waiting is a service of a local telephone company.
• Photo Phone Receiver Volume Control:  A slide volume control is present on the front edge of the telephone. This volume control is used to adjust the volume of the received speech. With the control set to the phone's right-hand side, the received volume will be at its maximum. Whereas with the control set to the left side, it will be at its minimum.

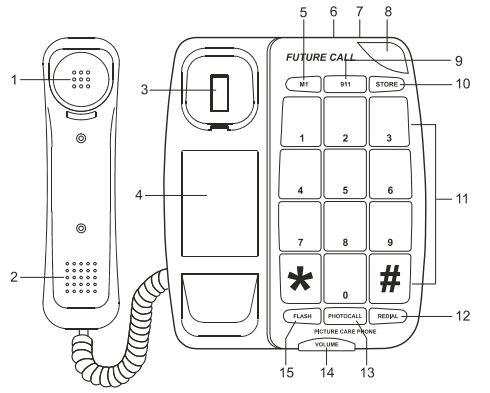

Parts of Future Call Picture Care Memory Corded Amplified Phone

1. Receiver
2. Transmitter
3. Hook Switch
4. Memory Index Card
5. M1 Button
6. Normal / One-Touch Switch
7. Ringer(Off / Lo / Hi) Switch
8. Ringer Indicator
9. 911 Button
10. Store Button
11. Key Button(1~9;*;0;#)
12. Redial Button
13. Photocall Button
14. Receiving Volume Control (Handset)
15. Flash Button



What to buy with Future Call Picture Phone with Speakerphone

• CPR Call Blocker V5000 Call Blocking Device
• Krown Phone Strobe Flasher

How to Install Future Call Picture Phone?

• Insert coil cord into modular jack located on side housing. Connect the other end into the modular jack located on the handset.
• Insert the modular plug of the straight cord into the rear side of base unit, the insert the other end of RJ11C plug into the wall jack.
• Picture Care Phone is also designed to mount on a wall. Position the wall mount slots on the bottom of the base over the two studs of the wall plate. Pull down to lock in place.

How to operate Future Call Corded Amplified Phone?

1. When your phone rings, pick up the handset and use it like any basic telephone.
2. Hang up the handset to release the telephone line when the conversation is completed.
3. Pick up the phone and wait for a dial tone, then press the keys for the number you want to dial.

How to retrieve Memory Numbers?

• Priority Keys: The priority key M1 is the one-touch direct call key button. Pick up the handset and depress the priority key M1 button which stores the telephone number you want to dial. Your call will be automatically dialed.
• Key button Memories: Your phone provides the option of “Normal” or “One-Touch” dialing mode.
  • Normal mode:To retrieve numbers stored in the key button, pick up the handset and press the red photocall button. Then press the key button number (0-9) (pictures) which stores the telephone number you want to dial. Your call will be automatically dialed.
  • One-Touch mode: To retrieve numbers stored in the key button, pick up the phone and wait for a dial tone, then press the key button (pictures) which stores the telephone number you want to dial. Your call will be automatically dialed. Please note:
    • Original two-touch memories will become one-touch memories at ONE-TOUCH mode.
    • There will be no dialing (0-9) function when the ONE-TOUCH mode is selected.
    • You cannot program any memories when in ONE-TOUCH mode.
