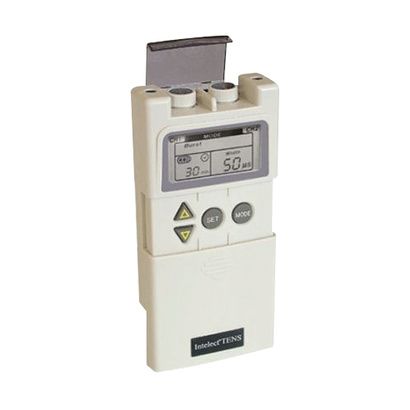

Chattanooga Portable Electrotherapy Intelect TENS Digital Unit

Authorized Retailer Badge


Item# Description Pkg reward$ Price Blank
Item #: 77712
1.2" x 2.4" x 3.6"

Chattanooga Portable Electrotherapy Intelect TENS Digital Unit is used for symptomatic relief and management of chronic pain and acute post-surgical or post-trauma pain. It features dual, independent channels, adjustable frequency and pulse duration parameters, 5 stimulation modes (burst, normal, MRW, SD, bi-pulse), patient compliance timer and digital LCD display.

Highlights of Intelect TENS Digital Unit

  • Dual independent channels Adjustable timer
  • Adjustable frequency and pulse duration meter Digital unit features 5 modes
  • Convenient digital controls

Chattanooga Portable Digital Unit Features

  • Chattanooga Portable Electrotherapy Intelect TENS Digital Unit comes standard with:
    - Lead wires
    - 9-volt battery
    - DURA-STICK II self-adhesive electrodes
    - Carrying case
  • Treat multiple patient needs from pain management to the prevention or retardation of disuse muscle atrophy
  • Battery recharger is sold separately

How to Operate Intelect TENS Digital Unit?

Burst Mode:
The burst mode provides a "burst" of seven pulses.
There are two bursts that are delivered per second.
Positive pulse and negative pulse are delivered continuously at fixed 100 Hz.
Pulse width are adjustable from 50-300usBURST Mode

The Normal mode produces a continuous train of impulses.
The stimulation parameters are not automatically interrupted nor varied in any way. In this mode, the pulse rate (from 2 to ISOHz) and pulse width (from 50 to 300us) are fully adjustable.
The normal mode is quite versatile because it may be applied with a variety of rate and width settings

MRW (Modulated Rate and Width) Mode:
The pulse rate and width are automatically varied in a cycle to produce a pleasant, massage-like sensation.
It's believed that nerves can become accustomed to, or "accommodated" to the same electrical stimulus after a period of time and thus would require increasing the intensity to further block the pain.
The Modulation mode offers different electrical stimulation, thus preventing nerve accommodation so less intensity is required for long and effective treatment.
In this mode, during the beginning of 0.5 sec.
period, the WIDTH is decreased to 50% of its original setting, and during the next 0.5 sec. period, the RATE is decreased to 50% of its original setting. Therefore, the total cycle time is I second.
MRW (Modulated Rate and Width) Mode

SD (Strength Duration) Mode:
Strength-Duration modulation consists of alternating modulated intensity and pulse width, so the intensity is always increasing while the pulse width is decreasing and vice-versa.
The stimulation intensity is modulated to 62.5% maximum of setting (width equal to setting). The pulse width is modulated to 67% of setting (intensity equal to setting). Total cycle time is 6 seconds.

Bi-Pulse Mode:
Pulse rate (from 2-15OHz) and pulse width (from 50-300us) are fully adjustable Delivers 4 pulses per second to Channel I (i.e. the pulse rate of Channel I is fixed at 4 Hz) while delivering 100 pulses per second to Channel 2 (i.e. the pulse rate of Channel 2 is fixed at 100 Hz).
Stimulation is burst on for 1.0 second, then off for 1.0 second. Pulse width (from 50-300us) is fully adjustable.

Chattanooga Digital Unit Specifications

Specification Description
Channel Dual, isolated
Waveform Asymmetric biphasic square pulse
Pulse Amplitude 0 - 80 mA each channel adjustable (500 ohm load)
Pulse Width 50 - 300µ sec. adjustable
Pulse Frequency 2 - 150 Hz adjustable
Dimensions 1.2" x 2.4" x 3.6" (30mm x 62mm x 91mm)
Weight 4.4oz (126g)
Safety Tests EN 60601-1, EN 60601-1-2, EN 60601-2-10

Digital Unit Warranty

1 Year warranty
