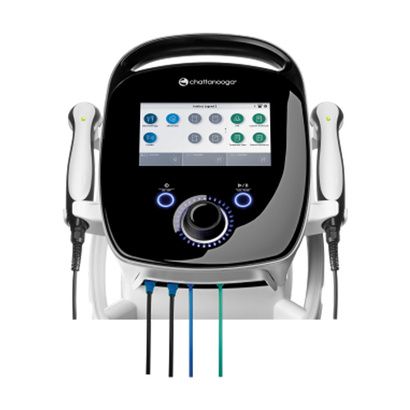

Features of Chattanooga Intelect Legend 2 2Channel Electrotherapy System
- Two-channel combination electrotherapy system
- Designed for modern physical medicine and rehabilitation practices
- Chattanooga proprietary VMS waveform supports strong, efficient muscle contractions
- VMS waveform is designed to reduce neural fatigue while providing patient comfort
- 2&Go Treatments allow up to 12 preset or custom protocols to be saved on the home screen
- Treatment protocols can be started within two button pushes
- SPS Menu allows treatment setup by selecting an indication
- Helps reduce the number of steps required for treatment setup
- 12 available electrotherapy waveforms
- Improved battery life supports portable, all-day applications
- Reduced dependence on excess cables for portable use
- Sleek industrial design with intuitive, app-like software interface
- Optional magnetic cart allows convenient movement throughout the clinic
- Magnetic cart attachment does not require tools for installation
- Optional dual-frequency ultrasound capability
- Ultrasound frequencies of 1 MHz and 3.3 MHz
- Wide range of applicator options available
- Compatible with a wide range of accessories
Additiona Information for Chattanooga Intelect Legend 2 2Channel Electrotherapy System
Electrotherapy Waveforms
- VMS
- VMS Burst
- Interferential
- Premodulated
- Asymmetric Biphasic
- Symmetric Biphasic
- High Volt
- Microcurrent
- Russian
- HAN
- Direct Current
- VMS FR
Safety & Compliance Tests
- IEC 60601-1
- ISO 10993-1
- IEC 60601-2-5
- IEC 60601-1-2
- IEC 60601-2-10
- IEC 60601-1-6
- IEC 62366-1
- IEC 62304
- IEC 62133
- ISO 14971
Specifications of Chattanooga Intelect Legend 2 2Channel Electrotherapy System
- Product Type: Electrotherapy System
- Configuration: 2-Channel
- Electrotherapy Channels: 2
- Ultrasound: Dual Frequency
- Ultrasound Frequencies: 1 MHz and 3.3 MHz
- Ultrasound Applicator Options: 1 cm², 2 cm², 5 cm², and 10 cm²
- Power Supply: 100–240 VAC
- Frequency: 50/60 Hz
- Current: 1.0 A
- Product Weight: 6.8 lbs (3.1 kg)
- Shipping Weight: 10.8 lbs (4.9 kg)
- Dimensions: 14"L × 13.4"W × 5.9"H
- Dimensions (Metric): 35.5 cm × 34 cm × 15 cm
- Electrical Safety Class: Class 1
- Electrotherapy Type: Type B
- Ultrasound Type: Type B
- Cart: Optional magnetic cart
- Battery: Improved battery life for portable applications
- Preset/Custom Protocol Storage: Up to 12 protocols
- Primary Applications: Physical medicine, electrotherapy, and rehabilitation
Warranty of Chattanooga Intelect Legend 2 2Channel Electrotherapy System
The Chattanooga Intelect Legend 2 is covered by a 2-year manufacturer's warranty against defects in materials and workmanship. Accessories and optional components may carry different warranty periods.
