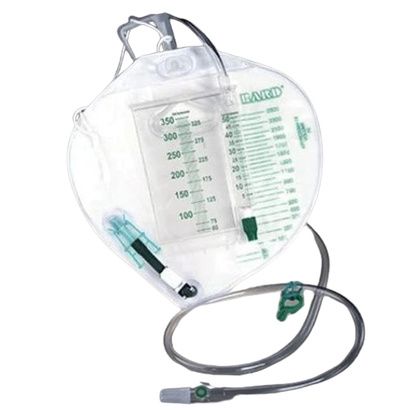

Features of Bard 350mL Urine Meter with 2500mL Drainage Bag
- The urine meter is connected to a drainage bag, which collects the urine and can be emptied as needed
- It has an anti-reflux valve that prevents urine from flowing back into the patient's bladder, reducing the risk of infection
- A sampling port that allows healthcare professionals to access the urine for testing purposes easily
- The urine meter and drainage bag come in sterile packaging, which helps reduce the risk of infection during use
When to use Bard Urinary Drainage Bags?
- After surgery: Patients who undergo certain types of surgery may require the use of this to accurately measure their urine output during the recovery process
- In critical care: Patients in critical care may require a urine meter to accurately monitor their urine output and manage their fluid balance
- In cases of urinary retention: Patients with urinary retention, which can be caused by a variety of medical conditions, may require the use of this urinary bag to empty their bladder and accurately measure their urine output
- During certain medical procedures: Some medical procedures, such as urological surgeries or diagnostic tests, may require the use of a urinary catheter and urine meter to measure urine output and manage urinary drainage
What to Buy with Bard Urine Meter With Drainage Bag
How to use Bard Urine Meter Drainage Bag?
- Prepare the patient: The patient should be positioned comfortably with their legs apart. The area around the urinary opening should be cleaned with an antiseptic solution
- Insert the urinary catheter: The urinary catheter should be inserted according to the instructions provided and secured in place with tape or other appropriate devices
- Connect the urine meter: The collection chamber of the Bard Urine Meter should be connected to the urinary catheter tubing, making sure that all connections are secure
- Position the drainage bag: The drainage bag should be positioned at a level lower than the patient's bladder to allow for proper drainage
- Prime the system: The urine meter should be primed by opening the clamp on the urinary catheter tubing and allowing urine to flow into the collection chamber until it reaches the appropriate measurement markings
- Secure the drainage bag: The drainage bag should be secured in place and the anti-reflux valve should be checked to ensure proper function
- Monitor urine output: Healthcare professionals should monitor the urine output at regular intervals and record the volume on the patient's medical chart
- Empty the drainage bag: The drainage bag should be emptied as needed and the urine should be disposed of according to medical waste guidelines
Tips for using this Drainage Bag

1. Keep the drainage bag lower than the catheter and the patient’s bladder

2. Never allow the tubing to loop or kink

3. Position the drainage bag at the foot of the bed

4. Hold the spine and lift meter to facilitate emptying
Â
Bard 350ml Urine Meter Drainage Bag User Guides
Frequently Asked Questions
1. Is it easy to use a Bard Urine Meter with a Drainage Bag?
Yes, the Bard Urine Meter with Drainage Bag is designed to be easy to set up and use. However, it should only be used by healthcare professionals who are trained in urinary catheterization and urine measurement.
2. How often should the drainage bag be emptied?
The drainage bag should be emptied regularly, depending on the volume of urine output. Healthcare professionals should monitor the urine output and empty the drainage bag as needed, typically at least once every 8 hours or more frequently if necessary.
3. Is this Drainage Bag sterile?
Yes, the Bard Urine Meter with Drainage Bag comes in sterile packaging to reduce the risk of infection during use.
4. What is an anti-reflux valve, and why is it important?
An anti-reflux valve is a device that prevents urine from flowing back into the patient's bladder, reducing the risk of infection. It is an important feature of the drainage bag used with the Bard Urine Meter.
5. Can the Bard Urine Meter Drainage Bag be reused?
No, It is a single-use device and should not be reused. Healthcare professionals should dispose of the device according to medical waste guidelines after use.
350ml Urine Meter Drainage Bag Specifications
| Particulars |
Specifications |
| Additive |
Without Additive |
| Drain Tube Type |
60 Inch Inlet Tube |
| Fastening Type |
Hook Hanger |
| Material |
Vinyl |
| Sample Port Type |
Sample Port |
| Volume |
2000 mL |
| Latex Free Indicator |
Not Made with Natural Rubber Latex |
Â
Related Articles
{{x.ShortDescription}} ...
Share
Customer Reviews
- 1 from verified purchases
-
V
Verified Buyer
Verified Purchase
Great for overnight bag use
I like this bag because it has a long hose, which enables me to turn on either side as I sleep. I have found no others with a hose of this length.
Option: 350ml Meter, With 2500ml Bag (Vinyl, 60" Inlet Tube)
Recommends this product
Helpful?
9 questions, 9 answers
-
Q
Question: when to change bag to new one?
Asked by Fran on Nov 16, 2025
-
A
Answer: The Bard Urine Meter drainage bag should be replaced every 5–7 days or sooner if soiled, damaged, or contaminated.
HPFY Customer Care
Store answer
Helpful?
-
Q
Question: how often should I clean the bag If im on 30 day foley changes. How do I clean the bag
Asked by Charles H. on Oct 18, 2021
-
A
Answer: Kindly note that the Bard Urine Meter With Drainage Bag cannot be cleaned. It requires to be replaced on a timely basis.
HPFY Customer Care
Store answer
Helpful?
-
Q
Question: How do I disconnect bag & take it to the toilet to empty it?
Asked by BarbaraChristensen on Nov 5, 2019
-
A
Answer: You cannot remove the bag but you can empty urine from it.please go through the link below for how to empty urine from the bag. https://www.youtube.com/watch?v=fj-0wPbUIAw
HPFY Customer Care
Store answer
Helpful?
-
Q
Question: The answer given above did not address her question.How do you get the urine out of the box when emptying the Foley bag. Do you just tilt it? That is what I’m doing. Is there a number to call?
Asked by Jan N. on Sep 19, 2019
-
A
Answer: Please go through the link below.
https://www.youtube.com/watch?v=fj-0wPbUIAw
HPFY Customer Care
Store answer
Helpful?
-
Q
Question: The answer given above did not address her question. How do you get the urine out of the box when emptying the Foley bag. Do you just tilt it? That is what Im doing. Is there a number to call?
Asked by JanNorman on Sep 19, 2019
-
A
Answer: Please go through the link below. https://www.youtube.com/watch?v=fj-0wPbUIAw
HPFY Customer Care
Store answer
Helpful?
-
Q
Question: Can this urine bag come with a longer (at least 60" )drainage tube?
Asked by Andrew S. on Jul 18, 2018
-
A
Answer: Bard Urine Meter With Drainage Bag does not come with 60" drainage tube.
HPFY Customer Care
Store answer
Helpful?
-
Q
Question: Hello,
would I be able to purchase the SureStep Foley Tray System (BARD)?
Asked by Lolita on May 1, 2017
-
A
Answer: Unfortunately we do not have Bard SureStep available at this time. Sorry for the inconvenience.
HPFY Customer Care
Store answer
Helpful?
-
Q
Question: How can I get urine to completely drain from urine meter into bag? The bag seems to vapor lock and urine is not flowing from Meter to bag. This has happened several times now.
Asked by Marge C. on Apr 29, 2017
-
A
Answer: For optimal drainage guidelines please refer to following literature - Urine Drainage Bag Positioning: https://www.healthproductsforyou.com/ProdImages/CommonFile/Bard%20Urine%20Meter%20With%20Drainage%20Bag_Positioning.pdf
Guidelines for Urine Drainage: https://www.healthproductsforyou.com/ProdImages/CommonFile/Bard%20Urine%20Meter%20With%20Drainage%20Bag_Guidelines.pdf
HPFY Customer Care
Store answer
Helpful?
-
Q
Question: Hi, could you please tell me how long is the tube? Thank you.
Asked by JennyWoo on Oct 6, 2015
-
A
Answer: The tube is 50 inches long. Thank you for your inquiry.
HPFY Customer Care
Store answer
Helpful?
