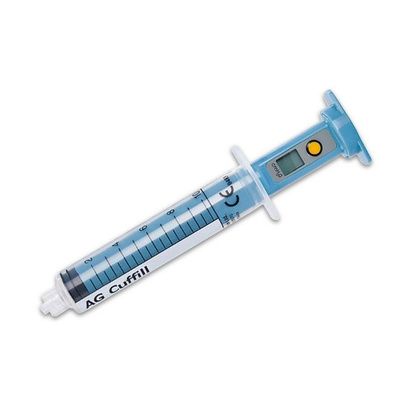

AG Cuffill Manometer

AG Cuffill Manometer Features

• Manometer is equipped with a digital display that provides clear and easy-to-read pressure readings
• The display features backlighting or large fonts for enhanced visibility, even in low-light conditions
• Offers a wide pressure range to accommodate different cuff inflation requirements
• It is designed to provide accurate and precise pressure measurements
• Suitable for use with endotracheal and tracheotomy tubes as well as laryngeal masks
• User-friendly interface with intuitive controls, making it easy to operate

When to use this cuff inflator?

• Before use, make sure the device is clear and open to the ambient pressure.
• Turn the AG Cuffill ON by pressing the power button on the right side of the display. The display will blink twice showing the number of readings left and then will display “00”
• Position the plunger about halfway out.
• Connect the manometer to the Airway cuff inflation line.
• Adjust the plunger until the required pressure is achieved. If the required pressure is not achieved, disconnect the AG Cuffill, pull the plunger 1-2 cc backward, and repeat this step.
• Disconnect the manometer from the Airway cuff inflation line

Frequently Bought Together

• CareFusion AirLife Modudose Unit Dose Sterile Water
• Luminaud Breathe-Easy Stoma Cover

How to use AG Cuffill Cuff Pressure Manometer?

Measuring Cuff Pressure:

1. Turn ON the manometer by pressing the power button on the right side of the display. The display will blink twice showing the number of readings left and then will display “00”.(see section 6 - Display)
2. Push the syringe plunger in until it stops.
3. Connect the manometer to the Airway cuff inflation line and read the pressure value.
4. If required, cuff pressure may be reduced by pulling back the plunger until the required pressure is achieved.
5. Disconnect the manometer from the cuff inflation line.

Adjusting Cuff Pressure:

1. Turn the manometer ON by pressing the power button on the right side of the display. The display will blink twice showing the number of readings left and then will display “00”. (see section 6 - Display)
2. Position the plunger about halfway out.
3. Connect the manometer to the Airway cuff inflation line.
4. Adjust the plunger until the required pressure is achieved. If the required pressure is not achieved, disconnect the manometer, pull the plunger 1-2 cc backward, and repeat this step.
5. Disconnect the manometer from the Airway cuff inflation line.

How to clean Cuffill?

The Cuffill is limited to 100 uses and to clean it:

• Pull out the plunger from the syringe barrel
• While cleaning or disinfecting, prevent the entry of any fluid into the AG Cuffill sensor at the tip of the black gasket.

Cleaning the Pressure Manometer:

• While cleaning: Soak a clean pad with Alconox 1% (diluted with distilled water) or Septal Scrub 4% Chloroxidine solution
• While Disinfecting: Soak a clean pad with either: Alcohol IPA 70% or a Hydrogen Peroxide 1.4 %
• Wipe the device surfaces (barrel and plunger) and clean thoroughly until the product is clean from contamination. Repeat at least 4 times.
• Soak a clean pad with distilled water. Wipe and clean the device surfaces.
• Wipe the device surfaces with a dry pad and make sure to leave to dry for one hour (while cleaning) and 2 minutes (while disinfecting) on a clean surface in the room
• After completing the cleaning process and the disinfection process, insert the plunger back into the syringe barrel. The Cuffill is now ready to be used.

AG Cuffill Manometer User Manual

Precautions:

• The manometer is intended for an air-filled cuff and should not be used with liquids, which will cause damage.
• It should not be used for continuous monitoring. It should be disconnected each time, after use.
• It should be kept in a dry environment during transport and storage.
• Make sure that the luer (connector) at the tip of the cuff is clear of any obstruction and is open to ambient pressure.

Frequently Asked Questions

Can the Cuffill device be used for measuring the cuff pressure of cuffs filled with liquid?

No, the Cuffill is intended for air-filled cuffs and should not be used for measuring liquid pressure

What are the recommended disposal instructions for the Cuffill device?

The Cuffill device contains a small lithium-ion battery. Therefore, the barrel (outer part) can be disposed of as a general waste/disposable device, but the plunger (inner part) is subject to disposal and recycling regulations that vary between countries and regions. The user should check and follow the local facility’s guidelines for disposing of Li batteries and E-waste.
