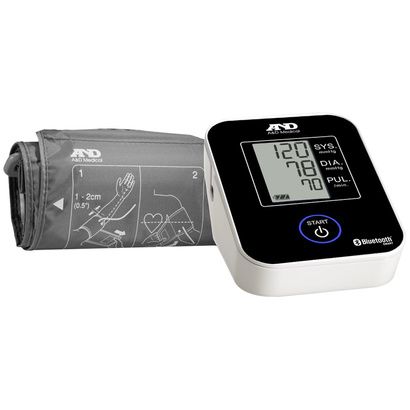

A&D Medical LifeSource Deluxe Connected Blood Pressure Monitor

Brand/Manufacturer: A&D MEDICAL

A&D Medical LifeSource Deluxe Connected Blood Pressure Monitor is one of the most advanced monitors designed for ease of use and accuracy with a simple, compact and modern design. It offers advanced features including pressure rating Indicator, irregular heartbeat detection, low battery indicator, measurement time and date stamp and up to 30 readings in internal memory storage.

A&D Medical LifeSource Deluxe Blood Pressure Monitor Includes:

  • Medium SlimFit cuff - 9.0" – 14.6" (23cm – 37cm)
  • Four AA batteries
  • Bilingual quick start card
  • Bilingual instruction manual
  • Carrying case

Benefits of LifeSource Deluxe BP Monitor

  • SlimFit Cuff System with Gentle inflation — Flexible inflation gives less chance of re-inflation
  • Reliably and securely connects to the iPhone or Android supported mobile device with the A&D connect app via Bluetooth smart technology
  • Simple, easy to use mobile application that allows viewing the wellness metrics in a whole new way, complete with trends and graphs for all devices, including blood pressure, weight, activity and sleepView readings on the easy to read LCD and the A&D Connect mobile app
  • Set goals and view the trends with A&D connect and the Wellness
  • Connected cloud account
  • Clinically validated
  • Stores memory with time and date stamp
  • A&D Connect app allows for easy sharing of readings via mobile social applications, email and more
  • Gives a snapshot of your BP classification in accordance with US JNC7 guidelines
  • Irregular heartbeat feature alerts the user to the presence of an irregular heartbeat risk

What to buy with LifeSource BP Monitor?

How to use LifeSource Deluxe Connected Blood Pressure Monitor?

  • Install the included batteries into your blood pressure monitor (BPM)
  • Insert the air connector plug into the air socket
  • Download the free A&D Connect app from the App Store or Google play Turn on Bluetooth settings on your mobile device (smartphone or tablet)
  • Install and launch the A&D Connect app. The app will guide you through the account set up and connection process
  • Press and hold the START button until “ Pr” is displayed, then release the button
  • While “Pr ” is shown the BPM is discoverable
  • While “Set ” is shown the BPM is pairing with your mobile device
  • The BPM displays “ Set” to indicate the pairing process is complete
  • The blood pressure monitor is now ready to be used
  • Lay your left arm flat on the table with palm up. Place the cuff on your upper arm
  • Fasten the cuff tight enough so you can slide two fingers underneath it
  • Sit comfortably with your arm resting on a flat surface, elevated to heart level, palm upSit quietly as cuff inflates and deflates
  • Wait for the measurement to complete
  • When the measurement is complete, the cuff deflates automatically
  • Your systolic, diastolic pressure and pulse rate appear on the screen and measurements are sent to your mobile device when the “A&D Connect” app is open and running
  • Results are stored in the BPM when your mobile device is not available

Precaution to take while using A&D LifeSource BP Monitor

  • Avoid tightly folding the cuff or storing the hose tightly twisted for long periods, as such treatment may shorten the life of the components
  • The device and cuff are not water resistant. Prevent rain, sweat and water from soiling the device and cuff
  • Measurements may be distorted if the device is used close to televisions, microwave ovens, cellular telephones, X-ray or other devices with strong electrical fields
  • Clean the device and cuff with a dry, soft cloth or a cloth dampened with water and a neutral detergent
  • Never use alcohol, benzene, thinner or other harsh chemicals to clean the device or cuff
  • Do not self-diagnose the measurement results and start treatment by yourself
  • Always consult your doctor for evaluation of the results and treatment
  • Maintenance
    • Do not open the device
    • It uses delicate electrical components and an intricate air unit that could be damaged

LifeSource Deluxe Connected BP Monitor Specifications

Measurement methodOscillometric measurement
Power supply4 x 1.5V batteries (R6P, LR6 or AA) or AC adapter (TB:233 - sold separately)
ClassificationInternally powered ME equipment (Supplied by batteries) / Class II (Supplied by adapter) Continuous operation mode
Wireless communicationVZ (MURATA Manufacturing Co.Ltd.) Bluetooth Ver. 4.0LE BLP
Operating conditions+10 to +40 °C / 15 to 85 %RH / 800 to 1060 hPa
Transport / Storage conditions-20 to +60 °C / 10 to 95 %RH
Medium SlimFit9.0" – 14.6" (23cm – 37cm)
WeightApprox. 250 g, excluding the batteries
Number of measurements Approx. 700 times LR6 (alkaline batteries)
Approx. 200 times R6P (manganese batteries)
With pressure value 180 mmHg, room temperature 23 °C
Measurement rangePressure : 20 - 280 mmHg
Systolic pressure: 60 - 279 mmHg
Diastolic pressure: 40 - 200 mmHg
Pulse: 40 - 180 beats /min
Measurement accuracyPressure : ±3 mmHg
Pulse : ±5 %

LifeSource Deluxe BP Monitor Warranty

Device: 5 years (when used six times a day)Cuff: 2 years (when used six times a day)
