3B Medical Siesta Full Face CPAP Mask

Siesta Full Face CPAP Mask Features

• Modern Mask Technology: Easy change cushion cup that snaps into place and self adjusts to the patient's face.
• Ergonomically Designed: Modern design and clean lines define the new Siesta Nasal CPAP mask. One of the most petite and flexible masks on the market.
• Flexibility for the Perfect Fit: Available in an all sizes and individually sized kit.
• Easy Cushion Change: Ergonomically-designed cushion attachment, that snaps on with ease.
• Freedom of Movement

What Siesta Full Face Mask Includes

• Full face mask
• Headgear

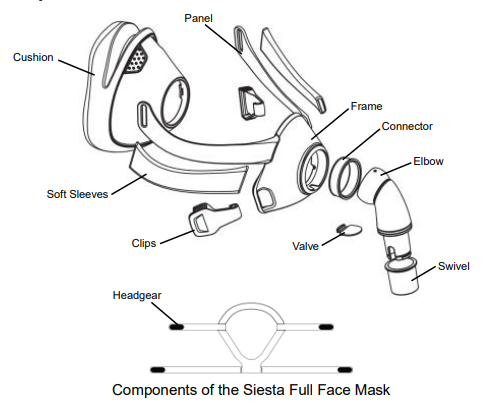

Siesta CPAP Full Face Mask Components

What to buy with CPAP Masks

• 3B Medical CPAP Wipes
• 3B Medical Lumin CPAP Mask And Accessory Cleaner
• Maril Control III Disinfectant CPAP Cleaning Solution

How to wear Siesta CPAP Full Face Mask?

1. Pass the upper straps of the headgear through the slot of the mask arm and secure it, repeat the process with the lower straps to join the headgear clip.
2. Place the mask on the face and extend the headgear to the back of the head and confirm that the label on the back of the headgear faces outward when the headgear is worn.
3. Bring the lower-half straps beneath the ear and insert the clips into the fixed hook on the lower part of the mask frame.
4. Extend the upper straps of the headgear until the mask is fixed properly.
5. Repeat the process for the lower-half of the headgear until the mask is fixed properly.
6. Connect the air tubing to the swivel and then turn on the device and adjust the mask to the correct position.

Getting the Right Cushion Size

• The following drawing describes the different features of the face and the length of the face (H) you need to measure.
• The masks are available in three different sizes.
• Choose the appropriate size according to the table below.

Siesta Full Face CPAP Mask Sizing Template

How to Disassemble the Siesta Full Face Mask

Notes:

1. The elbow assembly cannot be dissembled from the frame assembly.
2. The valve cannot be dissembled, or damage may be incurred and the re-installation will become more difficult.

• Undo and remove the upper-half headgear straps out of the slot on the mask frame.
• Remove the cushion from the mask frame.
• Remove the Swivel from the Elbow.

How to Reassemble the Siesta CPAP Mask

• Install the forehead pad onto the upper-half installation groove of the mask frame.
• Install the Cushion onto the Frame and confirm that the Cushion is reliable.
• Install the upper-half headgear onto the upper-half installation hole of the mask frame.

Cleaning the 3B Medical Full Face CPAP Mask at Home

Notes:

• The mask and headgear can only be cleaned through hand washing or placed in the Lumin device.
• The elbow and the valve cannot be dissembled for washing.

CAUTIONS

• Do not use solutions containing bleach, chlorine, alcohol, aromatics, moisturizers, antibacterial agents, or scented oils to clean any part of the system or air tubing. These solutions may cause damage and reduce the life of the product.
• Exposing any part of the system or tubing to direct sunlight or heat may cause deterioration.
• If any visible deterioration of a component is apparent (cracking, crazing, tears etc), the component should be discarded and replaced.

Daily / After Each Use

• Disassemble the mask components according to the disassembly instructions.
• Thoroughly clean the separated mask components (excluding headgear), by gently rubbing in warm (approx. 30°C) water using mild liquid detergent (e.g., Alconox diluted at 1%) for up to 10 minutes.
• Use a soft bristle brush to clean the vent.
• Rinse all components well with drinking quality water and allow to air dry out of direct sunlight.
• When all components are dry, reassemble according to the reassembly instructions.

Weekly

• Handwash the headgear and all components in warm (approx. 30°C) and mild liquid detergent (e.g., Alconox diluted at 1%) for up to 10 minutes. Rinse the components well with drinking quality water and allow them to air dry out of direct sunlight before assembling.

3B Medical Siesta CPAP Full Face Mask User Manual
