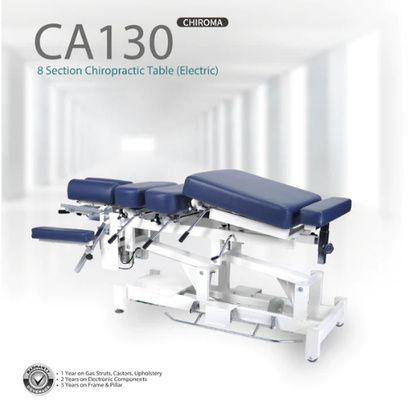

Everyway4All CA130 Chiroma Electric 8 Section Chiropractic Drop Medical Treatment Table

Authorized Retailer Badge
For Questions, Please Call...
  • Hpfy FreeShipping Free
For Questions, Please Call...


Item# Description Pkg reward$ Price Blank
Item #: CA130
Item #: CA130
Item #: CA130

Everyway4All CA130 Chiroma Electric 8 Section Chiropractic Drop Medical Treatment Table provides professional chiropractor with the simplicity of use. Since the main emphasis of chiropractic is on manual and manipulative therapy for the treatment of joint dysfunctions, especially those of the spinal column, Chiroma serves as a Force Extension as well as Force Absorbent platform for chiropractors to perform various tentative tasks without the risks of collateral damage to the patient.

Flat 20% off. Use Coupon Code EWAY20

Everyway4all CA130 (CHIROMA) Chiropractic Table Features

  • Everyway4All CA130 Chiroma Electric 8 Section Chiropractic Drop Medical Treatment Table includes
    • 1 Motorized Actuator for Hi/Lo Adjustment
    • 1 Motorized Actuator for Hi/Lo Adjustment (Head Section)
    • 1 Motorized Actuator for Tilting Adjustment (Head Section)
    • 1 Joystick for Hi/Lo and Tilting Adjustment
    • 2 Individual Leveling Foot at Head Section
    • 2 Hauling Wheels at the Rear Section
    • 4 Sections are equipped with Adjustable Tension-Drop
    • 2 Fixed Arm Rest for absolute comfort and reliability
    • 1 Motor for Height Adjustment
    • 2 Motor for Height Adjustment & Tilting Adjustment of the Head Section
    • 1 Foot Control
    • 8 Sections Blue Upholstered Table Top
  • Designed to be lifted and moved around by lifting just the Arm Rest
  • Maximum Load Capacity of 225 kgs (496 lbs)
  • Adjustable tension drop can be initiated at all sections of the body:
    • Cervical Drop
    • Thoracic Drop
    • Lumbar Drop
    • Pelvic Drop
  • Weight: 103.5 kgs

Chiroma Chiropractic Table User Manual

What to buy with Everyway4all CA130 Table

Everyway4all Chiroma 8 Section Electric Chiropractic Table Instructions

Safety Instructions

  • Before starting to use the table, it is important to read and understand this manual.
  • The user should consult this manual whenever in doubt about using the table.
  • This device must be used under the supervision of a licensed practitioner.
  • Use only the original accessories that are manufactured by Everyway Medical Inst. Co., Ltd. for the table.
  • Do not use the table in "Wet Rooms" - Hydrotherapy Rooms.
  • Keep the table away from direct heat and/or fire.


  • Please make certain that Electric Couches /Tables are not used in the presence of flammable gases such as anaesthetic agent.
  • Do not sit on the edge of Head or Foot Section of a couch or table as possible damages to the (1) Gas Struts and/or (2) Gas Strut Handle Bar may occur. Standard Load of a couch or table is rated at which the loading weight is distributed evenly across the working surface but not on a specific area or side of table top.
  • It is hazardous to exceed the rated maximum load of a couch or table.
  • The operation Electric couch or table requires the Power Cord securely plugged-in to the wall utility power. When the Power Cord is unplugged, it does not operate unless the couch or table is equipped with a backup battery.
  • Use only the original accessories that are manufactured by Everyway Medical Inst. Co., Ltd. for a table or couch.
  • Children must be refrained from using any tables or couches by means of operating a hand or foot control nor Elevating Bars.


  • Before allowing a patient to lay on the couch or table, please ensure that the Leveling Foot at each corner is Leveled and Resting on the floor securely after the castors are retracted. If not, please adjust the leveling foot accordingly to stabilize the table.
  • Check any trapped power cords or cables underneath the couch or table while moving the table
  • Keep the limbs away from all moving parts of a couch or table especially when the table is being moved from one place to another.
  • When applying electrotherapy to a patient, please keep his or her body away from any contacts with metal parts of the couch or table.
  • Please familiarize yourself with the operation of all various controls of actuator and gas struts to avoid inadvertent actuation of table sections.

Everyway4all CA130 Chiropractic Table Specifications

Particulars Specifications
Minimum Height 540mm (21.26”)
Maximum Height 980mm (38.58”)
Table Top Width 600mm (23.62”)
Head Section Length 310mm (12.20”)
Arm Rest Length 410mm (16.14”)
Thoracic Section Length 190mm (7.48”)
Abdominal Section Length 220mm (8.66”)
Lumbar & Leg Section Length 580mm (22.83”)
Ankle Section Length 120mm (4.72”)
Total Length 1600mm (63”)
Head Tilt Angles -15º to +15º
Head Elevation 100mm (3.93”)
Head-Drop Travel Range 220mm (8.66”)
Thoracic-Drop Travel Range 250mm (9.84”)
Abdominal-Drop Travel Range 250mm (9.84”)
Lumbar & Leg- Drop Travel Range 170mm (6.69”)
Lumbar & Leg Tilt / Lift Angle 0º to 15º
Ankle Section Extension Range 280mm (11.02”)
Lift Mechanism Electric
Hauler Wheel (Fixed at Leg End) 2
Weight Rating (Maximum Load) 225kgs (496lbs)
Control Box Input Voltage and Rating 100~240VAC, 50/60Hz, 2A
Control Box Output Voltage DC 32V, 80VA
Duty cycle Maximum 10% 2 minute ON / 18 minute OFF
Maximum Load Push 8000N
Maximum Current 6A


  • 1 year on Mechanical Parts
  • 2 years on Electronics
  • 3 years on Frame
