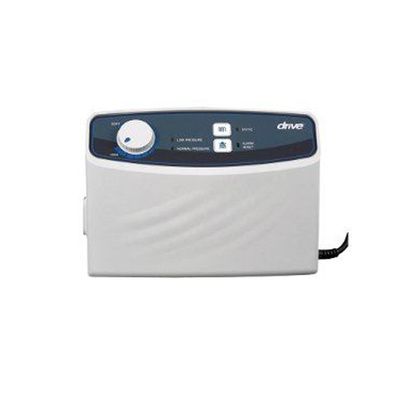

Drive Med-Aire Alternating Mattress Pressure Pump

Drive Med-Aire Alternating Pressure Pump Features

• Provides reliable and comfortable pressure relief
• Compatible with Med-Aire 14027 mattress systems
• Pump: Power 120 VAC
• Frequency: 60 HZ
• Pressure range: 30 to 80 mmHg (inner mattress pressure)
• Air volume 8 LPM (Liters per Minute)
• Cycle time: 10 minutes
• Functions: static and dynamic features
• Power cord length:15 ft
• Pump dimensions: 11 x 8 x 3.5 inches
• Maximum current: 0.5 amps

What to buy with Drive Mattress Pump

• Vive Waterproof Mattress Protector
• Drive Hospital Bed Fitted Sheet
• Skil-Care Mattress Safety Straps

How to use Mattress Pump by Drive?

How to set up Drive Air Mattress Pump?

• Position the control unit by hanging hooks over the footboard of the bed.

• Attach the air hoses to the therapy mattress securely using the quick connector. When properly installed, the quick connector will audibly click into place. Ensure air hoses do not kink between the mattress, bed frame, and control unit.



• Plug the power cord into an electrical outlet with grounded AC power.



How does the Control Unit of the Drive Mattress Pump work?

Analog Pressure Dial

• Adjust the dial to correspond to the patients’ appropriate weight setting or comfort level.



Static Pressure Button

• Press the static pressure button to discontinue alternating therapy.





Mute Button

• Silences the audible portion of the low-pressure information signal.



How to operate the Drive Mattress Pump System?

1. Turn on the power. The indicator light on the power switch will come on. The control unit starts to pump air into the mattress. The Low-Pressure indicator (yellow or red) will come on as inflation undergoes. The audible alarm is activated, accompanied by the Low-Pressure indicator, to alert that pressure is low. Press the Alarm Reset button to mute the audible alarm, and its indicator will flash. NOTE! For the first inflation, we recommend that you press both the Alarm Reset and Static buttons to enter a quick and silent operation.
2. When the pressure reaches the preset level by factory default within approximately 30~45 minutes, the Normal Pressure indicator will come on, and the Low-Pressure indicator (and the audible/visible alarm) will turn off. NOTE! If the Low-Pressure indicator (and the audible/ visible alarm) won’t go off, please refer to page 15 for troubleshooting.
3. Turn the pressure-adjust knob to set a comfortable pressure level from soft to firm.
4. The control unit is preset in alternating mode, and its cycle time is set at 10 min/60Hz. Press the Static button to set it in static mode, and the Static indicator will come on. The static mode will begin within 5 minutes. Press the Static button again to switch back to alternating mode. NOTE! In static mode, the mattress provides a firm surface that makes it easier for the patient to transfer or reposition. The static mode prevents the patient from bottoming out when in a sitting position.
5. During normal operation, a low-pressure condition will signal the low-pressure indicator if the system's air pressure falls below the selected value. Accompanying the low-pressure indicator, the audible alarm will beep, and its indicator will come on to bring attention to a low-pressure condition. The control unit will stop when the user-defined pressure level is reached. Press the Alarm Reset button to mute the alarm; its indicator will flash. Press the Alarm Reset button again to have the audible alarm and its indicator on.
