Invacare Clinical Three Position Recliner

Features of Invacare Recliner

• 2 convenient side tables for holding prep materials
• Articulating headrest makes it easier for user to see visitors
• Footrests fold completely under chair, allowing the patient to rise to a standing position more easily
• High-strength vinyl upholstery is easy to clean and impervious to fluids
• This medical chair has softer seat and back package for improved patient comfort
• Blow-molded side panels with press pins remove quickly for easy cleaning
• Flame retardant upholstery – meets California Technical Bulletin 117 standard
• Tray weight limit: 40 lbs.
• Note:
  - The position lock lever is not available
• Product assembly is required.
• Click Here for Owners Manual

More On Invacare Clinical Recliner

Assembling the Recliner:


1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15. Remove back assembly from its carton.
16. Lock the rear wheels.
17. Remove the side panels.
18. Position the back assembly over the seat frame.
19. Align the holes in the back assembly brackets with the holes in the seat frame.
20. Insert a clevis pin through back assembly bracket and seat frame and secure with a retaining ring.
21. Align the gas spring bracket with the holes of the mounting bracket on the center of the seat frame.
22. Insert a clevis pin through the gas spring bracket and through the mounting bracket on the seat frame and secure with a retaining ring.
23. Lift the plastic skirt mounted on the bottom of the seat.
24. Align the holes in the skirt to the holes in the chair back by fastening the hardware.
25. Install the side panels.
26. Repeat STEPS 14 - 16 for the other side panel

Reclining the Chair:


1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15. While seated in the recliner, grip the armrests and simultaneously lean body weight back and push forward with your arms until a recline position is reached.
16. The footrest assembly will elevate automatically as the chair is reclined.
17. The occupant should not be required to exert excessive force to change recline positions.
18. If the recliner exhibits difficulty in reclining, an attendant should be called for assistance.

Reclining to Trendelenburg Position:


1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15. Lock the rear casters with lock extended toward rear of the chair.

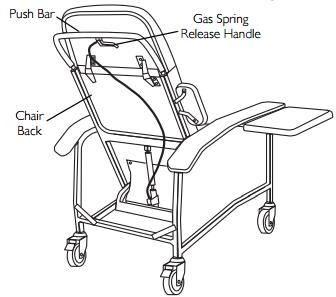

16. Grasp the push bar with one hand.
17. Squeeze on the gas spring release handle with the other hand.
18. Lower the chair back slowly down into Shock position.
19. Release the gas spring handle. If the cylinder does not unlock when the lever is actuated, or remains permanently unlocked when the lever is not actuated, cable tension must be adjusted.
