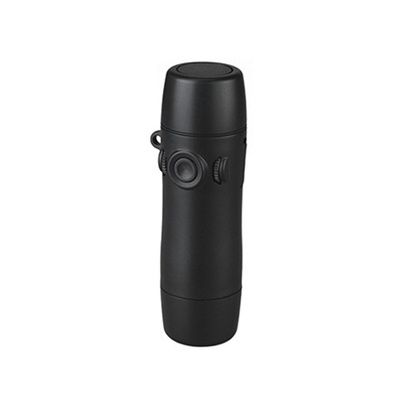

Atos Medical Provox TruTone Emote Electrolarynx

Features of Atos Provox TruTone Electrolarynx

• Advanced, premium-quality speech aid for a more natural expression
• Allows changes in voice volume from whispering to loud
• Allows for variance in the tone of voice for a more natural expression
• Improve the transmission of sound that can help people with hearing issues
• Up to one-month battery life and USB charging
• Most users experience 25-35 days between charges
• Charges just like your phone
• Comfortable and ergonomic hourglass design
• Good speech intelligibility

Useful Manuals

• Provox TruTone Emote User Manual
• What is an Electrolarynx?
• Basic Training Guide-Electrolarynx (EL)

What to buy with Speech Aid Device

• BIGmack Communicator
• Chattervox Voice Amplifier Headset Microphone
• Announcer with Six Levels

How to use Provox TruTone Emote?

Part specification

• A. Sound head (x2) (including sound button and foam ring)
• B. Sound head spacer
• C. Power button
• D. Volume knob
• E. Body
• F. Battery
• G. Battery cap
• H. Battery connector
• I. Oral tube (2 + 2)
• J. Oral adapter
• K. Tone (pitch) adjustment knob
• L. LED indicator light
• M.MODE button
• U. USB dust cover
• V. USB charge jack

Provox Electrolarynx Operating Instruction

Volume level and power

• The volume knob (D) all the way down is off.
• Turn the device on and adjust the volume by turning the volume knob upwards (D).

Adjusting tone

• • Adjust the tone by turning the tone adjustment knob (K).
• Keep the power button (C) pressed while making your initial adjustment to hear the differences.
• Using the tone knob (K) without holding the power button (C) still changes the tone without the ability to hear it.

Setting the mode

• To change the mode, first remove the battery cap, then press both the mode button (M) and the power button (C).
• The mode changes immediately, but if you continue to hold the power button, the device will beep to indicate the new mode setting.
• The number of beeps and the tone of the beeps indicate which mode it is in.

Choosing sound head

• If you have hard neck tissue or are in a loud environment. The grey sound head can be used because of its sharper sound.

Using the sound head spacer (B)

• If you regularly use a higher tone and prefer the tonal qualities without a sound head spacer, you may remove it.

Charging battery

• Pull the USB dust cover (U) out at the top end.
• Insert micro-USB into the USB charge jack (V) with an approved plug for wall charging.
• Check that the LED indicator light (L) is lit.
• Unplug the unit when the charging is complete to conserve power. Use until volume begins to fade, which is at 80% drained.

LED indicator light (L)

• Low battery - The light turns on when you press the power button, signaling it is approaching time to charge.
• Charging - Solid light
• Complete charging - Flashing light

Atos Electrolarynx neck placement

• Place the sound head (A) against your neck and activate the power button (C).
• Do not insert any part of the device or accessories into the stoma.
• Speak as sound is carried into your mouth. Do not force air out.
• Ensure an airtight seal between the sound head and your neck.
• Try different positions until you get the best sound. Note that even a 3 mm / 1/8" position change can have a great impact on the sound volume.
• If you cannot achieve sound transmission through your neck or place the device against your neck for medical reasons, try cheek placement or use the oral adapter.
• Adjusting the base tone up or down may produce a better voice.
• Mid-range tones are easier to hear for most people.

How to clean Provox Electrolarynx?

• Maintenance actions are the responsibility of the user. Maintenance should be performed after each use.
• Wipe the device with a clean, dry cloth or, if necessary, a slightly damp cloth (not dripping wet).
• Use water with mild soap or Isopropylalcohol 50-75%.
• Be careful not to get moisture inside the device
• Do not use electrical or spray cleaners
