Drive Phoenix HD (Heavy Duty) 4 Wheel Travel Scooter is an easy, perfect transportable mobility option with weight capacity 350 lbs that is ideal for outdoor use. With convenient and compact design HD 4 Travel Scooter can be easily assembled and disassembled into four easy to store and transport pieces. Phoenix HD 4 provides excellent stability when travelling outdoor terrains making cruising around the town a breeze. The upholstered stadium-style seat can swivel 180 degrees and also has three height selections to suit users of nearly any height. A headlight is mounted on the tiller for safer use during the night. Phoenix HD Four Wheel is not only safe, it is stylish with interchangeable panels in red and blue allowing the user to customize for his style.

  • ORDERING DETAILS
  • Seat (Model)
  • Option Accessories
  • Total: $1438.99
    Total: $1199
Total: $1438.99
Total: $1199

Drive Phoenix HD Scooter

Features:

  • Adjustable angle tiller has auto-straightening feature and allows the user to position the controller into the most comfortable driving position
  • Padded and adjustable armrests are contoured for comfort and flip up for convenient boarding and exiting off the travel scooter
  • Easy to remove and quick- connect battery can be charged separately from the scooter
  • Quick and easy disassembly
  • Ergonomic "finger-pull" throttle control makes operating the scooter easier
  • Height-adjustable swivel seat with two-tone upholstery and fold-down backrest
  • Large, plastic carry basket to help the user take his belongings along
  • Anti-tip wheels for greater safety
  • Convenient free-wheel release knob
  • Solid, flat-free, non-marking tires for worry-free use
  • Headlight for enhanced safety
  • Backpack: The Backpack has an expandable, super-sized main compartment with hook-and-loop fasteners, two zippered compartments, two mesh side pockets, an attached headrest cover and handy carrying handle
  • Scooter Cover: Cover fits the scooter nicely and protects it from dirt and other elements

What Makes Phoenix HD 4 Wheel Scooter Stand Out?

Phoenix HD 4 Wheel is ergonomically designed to help the user find the perfect positioning from which to operate the scooter. The adjustable angle tiller has an automatic straightening feature that helps the user drive in his most favorite position. Ergonomic throttle can be controlled using one finger making it beneficial for those with limited strength and dexterity problems. The seat is height adjustable to relieve any unnecessary stress on knees and legs, swivels and can lock its position in 45-degree increments.

Why Choose Phoenix HD 4 Wheel Scooter?

Phoenix HD 4 Wheel Scooter allows the user to personalize and customize it according to his needs with interchangeable color shrouds and a variety of other options. It comes with both red and blue panels that can be switched out for a change in color according to the mood of the user. Headlight assists in easy driving at night. Phoenix HD 4 Wheel version provides the user with excellent stability when traveling over rough outdoor terrains.

Also Available Separately:

Click Here for Parts Description
Click Here for User Manual
Phoenix HD Assembly
How to Troubleshoot a Phoenix
How to Adjust the Phoenix Contact
How to install a motor on Phoenix Scooter

More On Drive Phoenix HD Scooter

How To Operate Phoenix HD 4 Wheel Scooter?

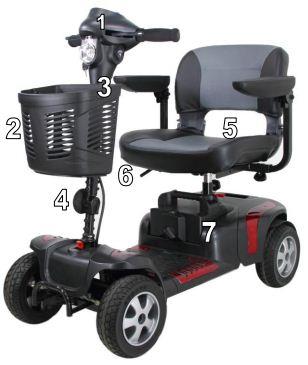

Phoenix HD 4 Wheel Scooter Parts Description:


    1. Control panel
2. Basket
3. Charger Socket
4. Tiller Adjustment Knob
5. Seat
6. Seat Rotation Lever
7. Battery Pack
8. Freewheel Lever
9. Anti-tip wheels
10. Seat Post Knob
11. Seat Height Adjustment Pin

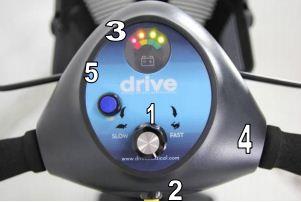

Phoenix HD 4 Wheel Scooter Control Panel:

  1. Speed Dial
2. Horn Button
3. Battery Indicator
4. Power Switch
5. Power Eye

Safety Instructions:

  • Do not use your vehicle under the circumstances below:
    - On surfaces that are muddy, gravelly, bumpy, narrow, snowed over, icy, or canal towpaths not guarded by any fence or hedge. Keep away from places where you might get the wheels stuck.
    - Do not drive at night or when it is raining, snowing, misty, or windy.
    - Do not drive your vehicle in an “S” pattern or make erratic turnings.
    - Do not take the scooter onto escalators.
    - Under no circumstances should the scooter be used as a seat in a motor vehicle (e.g. cars, buses, trains, etc).
  • About Mobile Phones and other electrical equipment:
    - Do not use a mobile phone or other wireless communication devices while driving.
    - Always switch off the scooter and remove the ignition key before using a mobile phone.
    - Do not charge the mobile phone or any other electrical devices from your scooter battery.
  • Automatic Power Shut Down:
    - In order to avoid accidental battery run down, your scooter is equipped with an automatic power shut down facility. If the scooter is switched on, after remaining undisturbed for a period of thirty minutes it will automatically turn off. When this situation occurs, simply switch your scooter off and back on and it will be ready to use once again.
  • Ramps, inclines and drops:
    - Do not drive onto steep ramps greater than the specified gradient.
    - Always use a low speed setting when ascending or descending a gradient.
    - Do not drive on roads with large drops or potholes.
    - Please slow down when driving on roads with inclines.
    - Do not make sudden turns when driving on gravel roads or ramps.
    - Always lean forward when climbing a steep gradient.

Specifications Of Phoenix HD

ParticularsDimensions
Performance
Top Speed4 mph
Maximum Range15 miles
Turning Radius54"
Climbing Angle
Dimensions
Overall Length41.5"
Overall Width22.5"
Floor-to-Seat Height20" to 22"
Ground Clearance3.75"
Seat17.5" W x 17" D
Power
Motor24V x 350W x 3600 rpm
ControllerCTE 70A
BrakesElectromagnetic
Tires (Flat-free)
Front Wheels8” x 2”
Rear Wheels8” x 2”
Weights
Base Weight77lb
Battery Weight (pair)31lb
Seat Weight21lb
Total Weight129lb
Weight Capacity350lb
Battery
Batteries (pair)12V x 20AH
Charger1.5A Offboard

Warranty OF Phoenix HD

Warranty on Frame: Lifetime
Warranty on Electronic Controller/Drive Train Components: 24 Months
Warranty on Batteries: 12 Months

Customer Reviews

Questions & Answers





Enter your Answer below.

Security Question: + =
question image
ItemQuestion
ItemName - now

Your question will show here once it will get approved.
answer image
UserAnswer
UserName - now
Your Answer will show here once it will get approved.
question image
How to adjust the seat height?
Rodger - 2/27/2017 4:31:15 AM
facebooktwitter
answer image
To adjust the seat height of Phoenix HD 4 Wheel Scooter:
  • Remove the seat from your scooter.
  • Remove the pin lock from the lower seat post.
  • Adjust the upper seat post to the desired seat height.
  • Move the upper seat post so that there is a hole to insert the locking pin.
  • Insert the pin lock and replace seat replace seat.
Customer Care - 2/28/2017 1:46:03 AM
question image
How is the tiller adjusted?
John - 2/27/2017 4:30:37 AM
facebooktwitter
answer image
The tiller Phoenix HD 4 Wheel Scooter can be adjusted in to many different positions to suit each driver.
  • Loosen the knob to adjust the tiller to positions you want.
  • Once decide the position, tighten the knob to secure the tiller.
Customer Care - 2/28/2017 1:46:45 AM
question image
How to apply brake?
Simba - 2/27/2017 4:30:13 AM
facebooktwitter
answer image
Phoenix HD 4 Wheel Scooter has electro-magnetic brake. Release the speed control lever completely, and the electromagnetic brake will be activated automatically, and the scooter will stop.
Customer Care - 2/28/2017 1:47:15 AM
question image
How does speed dial works?
Frieda - 2/27/2017 4:25:56 AM
facebooktwitter
answer image
Turn the speed dial of Phoenix HD 4 Wheel Scooter to determine the maximum speed of the scooter. Turn the dial clockwise to increase the speed setting and turn the dial anticlockwise to decrease the speed setting.
Customer Care - 2/28/2017 1:47:45 AM
