Drive Nitro Euro-Style Hemi Height Aluminum Four Wheel Walker Rollator

Drive Nitro Euro-Style Hemi Height Aluminum Four Wheel Rollator is designed for those people who want unmatched value along with proven comfort and convenience. With a sturdy and long-lasting frame made of lightweight aluminum, Nitro Hemi Height is durable, yet easy to move around over all surfaces. Nitro Hemi Height comes with large front wheels, giving user the ability and convenience of moving over most kinds of terrain, whether indoors or out. Flexible height adjustable removable back and height adjustable ergonomic handles conform to the individual needs.

Benefits of Nitro Euro-Style Hemi Height Aluminum Rollator

• Large 10" front casters.
• Attractive, Euro-style design
• Enhanced turning radius
• Made of Lightweight Aluminum
• Can be used over most kinds of terrain
• Adjustable Height

Drive Nitro Hemi Height Rollator Features

• Nitro Euro-Style Hemi Height Rollator Includes:
  1. Bag
  2. Back Rest
  3. Operating Instructions
• Superior option over a standard walker, eliminating the need to lift the device and allowing the user to walk with an easy, smooth gait
• Lightweight, aluminum frame
• Brake cable inside frame for added safety
• Back support height easily adjusts with tool-free thumb screw
• Handle height easily adjusts with unique push button
• Large 10" front casters allow optimal steering and rolling comfort
• Cross-brace design allows for side-to-side folding and added stability
• Easily folds with one hand to ultra-compact size for storage
• Plastic clip holds the Nitro closed when frame is folded
• Durable and comfortable seat gives a convenient place to rest
• Hemi height is suitable for users under 5 ft 2 inches
• Handsome and removable zippered storage bag with unique attachment to keep bag securely in place when Nitro is open or folded

Drive Nitro Rollator User Manual
Drive Nitro Euro-Style Rollator Parts Description
How to change Back on a Nitro?
How to change Brake on a Nitro?

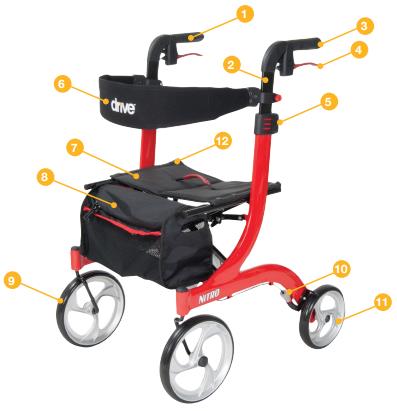

Drive Nitro Euro-Style Hemi Height Rollator Parts

		1. Handgrip
		2. Adjustable tubing handgrip
		3. Rear reflector on handgrip
		4. Brake lever
		5. Interlock button for handgrips
		6. Back Rest
		7. Seat
		8. Bag
		9. Front wheel
		10. Brake adjust screw
		11. Rear wheel
		12. Safety bow

What to buy with Nitro Euro-Style Aluminum 4 Wheel Rollator?

• Drive Nitro Cup Holder
• Drive Nitro O2 Tank Holder
• Drive Nitro Cane Holder

How to Operate Nitro Hemi Height Rollator?

Unfolding Nitro Hemi Height

Position the Nitro on its wheels. Open the red safety bow and lift up. Press both pipes from the seat downwards until they interlock.



Height Adjustment

Press the red release buttons for handgrips below, as shown in the figure, and pull the handgrip upwards at the same time. As the handle moves, release the button. This automatically locks in the next possible height. Repeat this process until the desired height is reached.



Braking Or Locking

• Pull both brake levers upwards to apply the brakes while the Nitro is moving. Always brake slowly and steady.
• Press both brake levers down to apply the locks while the Nitro is stationary. Pull up the brake levers and release to release the locks.

The effect of the brakes can be affected by abrasion of the wheels. Regularly test the brakes.



Adjustment Of Brakes

To adjust the braking strength, adjust the brake by pressing the screw housing downwards and then turn left or right.



Folding For Transport Or Storage:

To fold, pull seat upwards by the handle on the seat plate. The Nitro can now be folded complete and secured by using the red safety clasp.

Precautions to take while using Nitro Euro-Style Hemi Height Rollator

• Use only as a walking aid!
• Use only on even and solid surfaces.
• Maximum user weight: 300 lbs.
• Regularly check the screws and fasteners on the Nitro and re-tighten if necessary.
• Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.
• Do not expose the product to temperatures above 104°F for an extended period of time, as this can cause the Nitro parts to overheat and burn the user.
• Please make sure the Rollator is fully opened, seat is down and the folding bar under seat is locked in the down position.
• Be sure that both knobs are fully tightened and are at equal heights. Test Rollator for stability before applying full weight to hand grips.
• Test the brake lever before operating the Adjustable Rollator. When wheels are locked, lock bar on rear wheels should prevent wheels from turning. When locks are released, the wheels should turn freely.
• Always lock the brake lever before sitting and do not use seat when unit is on an incline or uneven ground.
• Replace tires when significantly worn or damaged.
• Do not move Rollator while seated. This is a walking aid only and is not to be used as a transportation device.
