Drive Nitro HD Euro-Style Aluminum Four Wheel Rollator

Drive Nitro HD Four Wheel Rollator Features

• Nitro HD Euro-Style Rollator Includes:
  • Bag
  • Back Rest
  • Operating Instructions
• Attractive, Euro-style design
• Brake cable inside frame for added safety
• Seat is durable and comfortable
• Under seat locking mechanism holds the Nitro closed when frame is folded
• Back support height easily adjusts with tool-free thumb screw
• Aluminum Rollator has unique suspension system for support and comfort
• Handle height easily adjusts with unique push button
• Large 10" front casters allow optimal steering and rolling comfort
• Caster fork design enhances turning radius
• Easily folds with one hand to ultra-compact size for storage
• Cross-brace design allows for side-to-side folding and added stability
• Handsome and removable zippered storage bag with unique attachment keeps it securely in place when Nitro is open or folded

Drive Nitro Rollator User Manual
Drive Nitro HD Euro-Style Rollator Parts Description
How to change a Back and Brake on a Nitro Rollator?

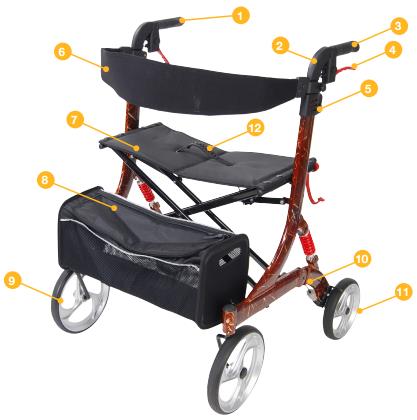

Nitro HD Euro-Style 4-Wheel Rollator Parts Description

1. Handgrip
2. Adjustable tubing handgrip
3. Rear reflector on handgrip
4. Brake lever
5. Interlock button for handgrips
6. Back Rest
7. Seat
8. Bag
9. Front Wheel
10. Brake Adjust Screw
11. Rear Wheel
12. Safety Bow
13. Move Button: Activates oscillation of front & rear nozzles
14. Deodorizer Button: Eliminates odor by passing air through the carbon filter.
15. Battery Life Indicator.

What to buy with Nitro HD Rollator?

• Drive Nitro Cup Holder
• Drive Nitro O2 Tank Holder

How to use Nitro HD Four Wheel Rollator?

Unfolding Nitro HD

Position the Nitro on its wheels. Open the red safety bow and lift up. Press both pipes from the seat downwards until they interlock.



Height Adjustment

Press the red release buttons for handgrips below, and pull the handgrip upwards at the same time. As the handle moves, release the button. This automatically locks in the next possible height. Repeat this process until the desired height is reached.



Braking or Locking

Pull both brake levers upwards to apply the brakes while the Nitro is moving. Always brake slowly and steady. Press both brake levers down to apply the locks while the Nitro is stationary. Pull up the brake levers and release to release the locks. The effect of the brakes can be affected by abrasion of the wheels. Regularly test the brakes.



Adjustment of Brakes

To adjust the braking strength, adjust the brake by pressing the screw housing downwards and then turn left or right.



Folding for Transport and Storage

To fold, pull seat upwards by the handle on the seat plate. The Nitro can now be folded complete and secured by using the red safety clasp.

Drive Nitro HD Rollator Safety Instructions

• Use only as a walking aid!
• Use only on even and solid surfaces.
• Maximum user weight: 450 lbs.
• Regularly check the screws and fasteners on the Nitro and re-tighten if necessary.
• Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.
• Do not expose the product to temperatures above 104°F for an extended period of time, as this can cause the Nitro parts to overheat and burn the user.
• Please make sure the Rollator is fully opened, seat is down and the folding bar under seat is locked in the down position.
• Be sure that both knobs are fully tightened and are at equal heights. Test Rollator for stability before applying full weight to hand grips.
• Test the brake lever before operating the Rollator. When wheels are locked, lock bar on rear wheels should prevent wheels from turning. When locks are released, the wheels should turn freely.
• Always lock the brake lever before sitting and do not use seat when unit is on an incline or uneven ground.
• Replace tires when significantly worn or damaged.
• Do not move Rollator while seated. This is a walking aid only and is not to be used as a transportation device.
