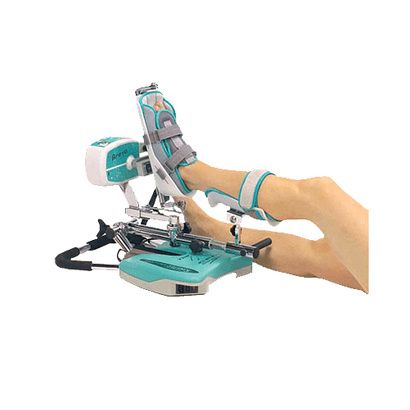

Kinetec Breva Ankle CPM Machine

Authorized Retailer BadgeAuthorized Retailer
Product Option

Ankle CPM Machine

SKU 553336
$4,890.89 Each
Request quote

Kinetec Breva Ankle CPM (Continuous Passive Motion )Machine provides anatomically correct motion to the ankle and rear foot. It offers two possible dimensional movements which are Plantar flexion to Dorsiflexion and Eversion to Inversion patterns. Set-up and change-over between the two movement patterns is quick and easy, no tool is required. It can be used in bed or while sitting in a chair.

Kinetec Breva - Kinetec Breva - Foot & Ankle Continuous Passive Motion Benefits-

  • Quiet machine
  • Anatomical and precise motion
  • Patient feedback and unique features
  • Safety First

$5,379.95

Total: $4,890.89

Earn $146.73 in HPFY rewards
For Assistance 877-278-6039

Kinetec Breva CPM - Ankle, Patient Care Features

  • Provides anatomically correct motion to the ankle and rear foot
  • Can be used in bed or while sitting in a chair
  • Two movements are possible: from 40_ plantar flexion to 30_ dorsiflexion or 25_ eversion to 25_ inversion
  • The digital remote control provides a precise yet clear feedback to the patient as well as it helps the therapy with unique functions such as warm up or by - pass
  • The remote control features a keyboard locking system preventing misuse and enhancing patient safety
  • This CPM Machine is quiet
  • Advanced hand control to maximise programs and protocols
  • Extremely stable CPM features deluxe hand control

Technical Specifications:


  • Remote control dedicated storage place when the machine is not used or during transport
  • Possibility to lock the adjustment of the parameters
  • Exclusive load reserve ensures patient protection when excessive force is exerted on the joint
  • Type B Class I electrical device
  • The patient can stop and reverse the movement at any time

Two dimensional movements possible:


  • Plantar flexion 40
  • Dorsiflexion 30
  • Inversion 25
  • Eversion 25

Digital adjustment:


  • Warm-Up: Offers the patient a gradual progression to the pre-set full ROM
  • Modulation: Allows manual setting of the ROM end-point based on patient tolerance
  • ROM By Pass: Allows bypassing the pre-set ROM end points during the current treatment session
  • Programme: Allows set-up of up to 16 customised programmes
  • Timer: Adjustment of the session time
  • Force: Work out of Concentric / Eccentric
  • Pause: Adjustable in extension or flexion limit. Allowing the rest or the posture

What to buy with Kinetec Breva Ankle CPM?


When to use Kinetec Breva?


  • Passive mobilisation of the following fractures after internal fixation:
    • Malleolar fractures
    • Tibial pilon fractures
    • Talar fractures
    • Calcaneal fractures
  • Mobilisation of the joints of the foot after operative or conservative treatment of lesions of the Achilles tendon
    • Lateral collateral ligament
    • Medial collateral ligament
  • Surgical lengthening of the Achilles tendon for post-traumatic stiffness




Kinetec - 553336 - Breva Ankle CPM Machine Specifications

Particulars Dimension
Foot sizing 19 cm(7 Inch) to 29 cm (11 Inch)
Speed  50° to 150° per minute.
Size 56cm (22 Inch) x 37cm (15 Inch) x 45m (18 Inch)
Voltage 100 to 240 Volts 50/60Hz
Electrical power 50VA
