EWheels EW-02 Folding Heavy-Duty Bariatric Scooter is capable of reaching speeds of 15mph. It can travel 43 miles on a single charge and has a rider weight capacity of 500lbs. It can comfortably carry one passenger with a fold-up front seat backrest or two passengers by using both seats provided. It can quickly be folded for storage or transportation and is a fantastic scooter for any type of mobility aid or recreational use.

Item #DescPkgRewardPrice
EW-02R Red Each $44.98
$2555.99
$2249.00

EWheels EW-02 Bariatric Scooter

Key Features:

  • EWheels EW-02 Folding Heavy-Duty Bariatric Scooter is a 1 or 2 passenger scooter
  • Variable 3 speed switch
  • Front and rear lights
  • Front and rear drum brakes
  • Front suspension fork
  • Weight Capacity: 300lbs
  • Click Here for Owners Manual

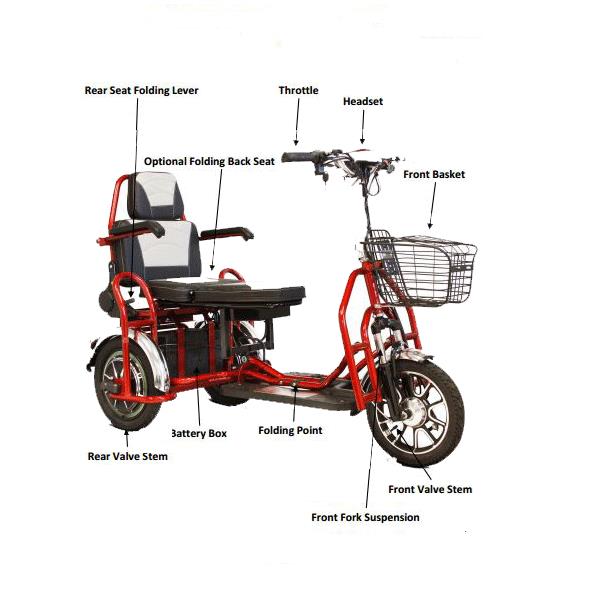

Parts Description:

Parts Description

EWheels EW-02 Folding Scooter

Operation of Scooter:

1. Turning on the power: Insert key into the ignition and turn clockwise to turn the scooter on. Turn the key again to activate the headlight. Turn the key counterclockwise to power off when stopped.

Operation of Scooter



Operation of Scooter

2. Speed Control: The black twist grip throttle controls acceleration. Twist the throttle grip towards you will increase the speed. Releasing the throttle grip will reduce the speed. The three-position speed switch controls top speed.
- Symbol 1 limits the top speed to 6 MPH.
- Symbol 2 limits the top speed to 12 MPH.
- Symbol 3 allows the machine to travel at full speed.

3. Battery Power Indicator: The battery power indicator will show when the scooter is on. When turned on, the battery indicator light will display the batteries current charge.

Operation of Scooter



Operation of Scooter

4. Forward / Reverse: The forward/reverse switch is located on the right side of the handlebar controls. Press the R button in, to activate reverse. Push again to de-activate.

5. Turn Signals and Horn: Turn signal button is located on the left handlebar assembly. Push in either direction to activate. Press horn button to sound horn.

Operation of Scooter



Operation of Scooter

6. Parking / Emergency Brake: The parking/emergency brake is located on the left and right-hand brake. The tabs hold tension in the brake lines to keep the unit stationary while not in use. Activate by depressing towards the brake handle, while squeezing the brake handle. The tab will click inwards and active once the brake handle is pulled approximately half way. Squeeze the brake handle to deactivate.

7. Battery Box Removal: Start by unplugging the battery box power cable. Twist the hinged door securing knob to the left to remove. Once removed, the door can be folded downwards towards the ground. The battery box can be removed and charged separately from the machine with the provided smart charger.

Operation of Scooter

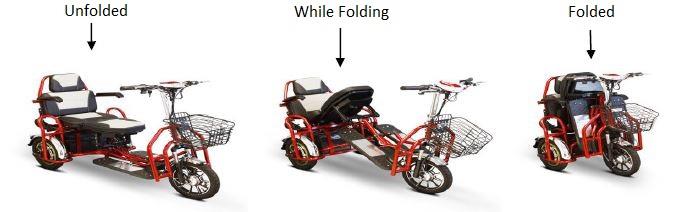

Folding:

The scooter can be folded to decrease its storage and travel size. To fold the scooter, start by pulling the release pin towards the battery box. When pulled, the scooter can be folded together. The folding pin is located underneath the seat, pointing towards the battery box.


folding of scooter

Specification

ParticularsSpecification
Weight Capacity500Lbs
SpeedUp to 15mph
Distance43 miles per charge
Front Seat TypeFlat rider seat with optional back rest
Front seat Size 14" x 12" x 10"
Front Seat21" from Ground
Rear Seat TypeAdjustable with armrest
Rear Seat Size11" x 15" x 18"
Steering Height 38" from Ground
PowerElectric 48Volt
Watts500 Watt
Motor TypeRear Brushless Hub Motor
Amps20 AH
Volts48 Volts
Dimensions59" x 31" x 40" Folded: 30" x 31" x 41"
Floor Clearance5"
Front Basket12" x 12" x 8 ½"
Batteries(4) 12volt Sealed Lead Acid Maintenance Free 20AH
Forward/Reverse switchYes
High/ Low Speed switch3 Speed Switch
Front tire size14”x 2.125
Rear tire size14”x 2.125
Charger48-volt Smart Charger included
Throttle TypeVariable Twist Throttle
Key StartYes
Braking SystemFront and rear drum brakes
Drive SystemRear Hub Motor 48volt 500watt
HeadlightFront Headlight
Rear lightsTaillight
Scooter Weight184lbs. with batteries
Battery IndicatorYes
FrontFrame shock absorbers
ReflectorsYes

Warranty

  • 3 Year Limited Warranty
  • Return Policy:
    - Merchandise must be returned within 15 days of the receipt of order.
    - No returns are accepted after 15 days.
