Drive Ventura Four Wheel Deluxe Scooter

Drive Ventura Four Wheel Deluxe Scooter

Brand/Manufacturer: DRIVE MEDICAL


Authorized Retailer Badge
This product is on backorder and will be available to purchase once it is back in stock.

Drive Ventura Four Wheel Deluxe Scooter offers a great combination of performance, size, comfort and styling, making it the perfect mobility option. Four-wheel configuration of Ventura is great for stability and handling on rougher outdoor terrain. It comes with removable height and width adjustable armrests and adjustable angle, delta tiller that allows the user to place the controls in the most comfortable position. Drive Ventura has ergonomic controls that make it easier for those with limited strength or dexterity to operate the scooter.

Drive Ventura 4-Wheel Scooter

Key Features:

  • Perfect for longer trips around the neighborhood or around town
  • Padded, flip-up armrests that allow easy transfers and user access
  • All seats have four height adjustments, from 20" to 23"
  • Interchangeable color panels (red and blue) included
  • 33AH batteries included for maximum range of up to 16 miles
  • Seat can be moved forward or backward using the auto-style seat slides
  • Captain seat recline, swivel and feature a fold-down backrest and an adjustable height headrest
  • Full lighting package includes headlight, front and rear turn signals and rear parking lights
  • Large plastic front basket with flip-down handle
  • Programmable controller
  • Anti-tip wheels for greater safety
  • Flat-free, non-marking tires
  • Easy-to-adjust tiller
  • Easy Disassembling Frame
  • Rearview mirrors
  • Easy free four wheel operation

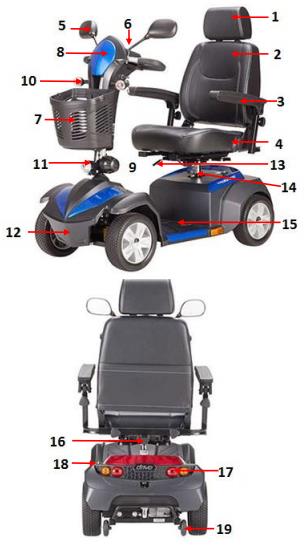

Scooter Parts Description:

Scooter Parts Description1. Headrest
2. Seat Back
3. Armrests
4. Seat Base
5. Rearview Mirrors
6. Control Panel
7. Basket
8. Tiller Assembly
9. Tiller Adjustment Knob
10. Turn Signals
11. Headlight
12. Front Bumper
13. Seat Swivel & Release Lever
14. Seat Post
15. Footboard
16. Accessory Post
17. Tail Lights
18. Freewheel Lever
19. Anti-tip Wheels

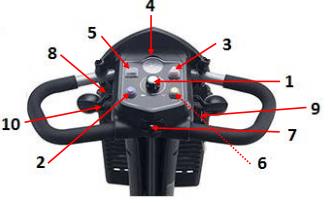

Control Panel Parts:
Control Panel Parts1. Speed Dial
2. Headlight Button
3. Hazard Light Button
4. Battery Indicator
5. Indoor/Outdoor Switch
6. Horn Button
7. Turn Signals Switch
8. Throttle
9. Key Switch
10. Charge Port

More On Ventura 4-Wheel Scooter

Assembling Instructions:

Assembling Instructions 1. Remove your scooter from its packaging. Loosen the tiller adjustment knob, raise the tiller to the desired angle and retighten the knob.
Assembling Instructions 2. By hand, loosen the two knobs that secure the rear shroud to the base of the scooter.
Assembling Instructions 3. Lift up on the shroud to remove.
Assembling Instructions 4. Connect the red connector on the battery harness to the matching red connector on the main cable.
Assembling Instructions 5. Connect the rear light harness on the rear shroud to the main cable on the base of the scooter.
Assembling Instructions 6. Replace the rear shroud and reinstall the two knobs removed in Step 2.
Assembling Instructions 7. While lifting up on the seat release lever, place the seat onto the seat post. Release the lever and rotate the seat until it locks into place.
Assembling Instructions 8. Insert the armrests into the attachment points in the seat frame so that the armrests face forward.
Assembling Instructions 9. Attach the front basket by aligning the bracket on the tiller with the mounting holes on the basket. Then push down to secure in place.
Assembling Instructions 10. Secure the mirrors to the tiller by inserting the mirrors into the connections points on either side of the control panel and rotate clockwise until secured into position.
Assembling Instructions 11. Fully charge the scooter batteries by inserting the round charger connector into the charging terminal on the scooter tiller. Then insert the 3-pronged plug into a standard electrical outlet. Be sure to charge the scooter for 8-10 hours before first time use.
Assembling Instructions 12. Before use, make sure that the yellow freewheel mode lever of scooter is in the “drive” position.

Operating Ventura Scooter:

  • After your scooter is assembled, and adjustments have been made you are now ready to operate your scooter.
  • The key switch applies power to the control system electronics, which in turn supplies power to the motors. Turn the key switch with the key inserted to turn on your scooter.
  • It is recommended you start at the slowest speed setting when familiarizing yourself with your Drive Scooter controls. Once you feel comfortable with the controls, and movement of the scooter you may then increase the speed.
  • Rotate the speed knob to the lowest speed setting. Engage the throttle, and begin steering to drive forward, backward, left or right.
  • If you want to stop the scooter, release the throttle and it will automatically return to the center position to stop the unit.
  • Once familiar with the controls rotate the speed knob to increase the top speed to a comfortable setting.
  • When the scooter is turned on, the battery gauge will display red, orange, and green indicators:
    - Red: Your scooter should be charged as soon as possible. - Orange: Do not drive your scooter for a long trip. - Green: Your scooter has full battery capacity.

Cleaning Instructions:

  • To clean your scooter, use a damp cloth with a mild, non-abrasive cleaner on the plastic and metal parts
  • If necessary, clean your scooter with an approved disinfectant safe for use on your unit
  • Never hose off your scooter at outdoor or expose it to direct contact with water
  • Never use any chemicals on the upholstery of your seat, this may cause the seat to dry out and crack


Top Speed4mph4mph
Top Range16 miles16 miles
Turning Radius54"54"
Climbing Angle7.5 degrees7.5 degrees
Ground Clearance2.5"2.5"
Dimensions48" x 25"48" x 25"
Floor to Seat Height19.5" to 22.5"19.5" to 22.5"
Seat Dimensions18"W x 16"D x 13.5"H20"W x 18"D x 20"H
ControllerPG S-Drive 70APG S-Drive 70A
Motor/Drive System24v x 350W x 5100RPM24v x 350W x 5100RPM
Charger4A off board4A off board
Front Wheels10" x 3" flat free10" x 3" flat free
Rear Wheels10" x 3" flat free10" x 3" flat free
Base Weight99lb99lb
Battery Weight46lb46lb
Seat Weight40lb40lb
Total Weight185lb185lb
Weight Capacity400lb400lb


Warranty on Frame: Lifetime, Warranty on Electronic Controller/Drive Train Components: 14 Months, Warranty on Batteries: 12 Months

Customer Reviews

Please enter your and your friends email address below.
Fields marked with * are compulsory


The selected product information along with Reward Dollar coupon code has been successfully emailed to you and your friend.

Thank you for using



Also available:

${{ x.OurPrice | currency: "" : 2}}

Articles & news

Related Articles


{{x.ShortDescription}} ...

Questions & Answers

Enter your Answer below.

Security Question: + =
question image
ItemName - now

Your question will show here once it will get approved.
answer image
UserName - now
Your Answer will show here once it will get approved.
question image
Can it be operated with the left hand only, my wife has no use in her right arm
bill - 6/8/2017 8:23:06 AM
answer image
Yes, but it would be very difficult to use Drive Ventura Four Wheel Deluxe Scooter with the left hand. She would have to be able to push or pull on the throttle and steer at the same time.
Customer Care - 6/13/2017 2:13:58 AM
question image
What should I do to adjust the height of the armrest?
HARRY - 4/25/2017 5:42:44 AM
answer image
The armrest height of Drive Ventura can be adjusted by loosening the star knob on the top side of the armrest, and sliding the armrests up or down to the desired height.
Customer Care - 4/26/2017 1:09:48 AM
question image
How do I adjust the Armrest Angle?
KATHERINE - 4/25/2017 5:41:10 AM
answer image
The armrest angle of Drive Ventura can be adjusted by lifting up on the armrest, and tightening or loosening the bolt underneath the armrest. Tightening will lower the angle, and loosening will raise the angle of the armrest.
Customer Care - 4/26/2017 1:09:12 AM
question image
Any precautions when travelling on inclined or declined surfaces?
MARY - 4/25/2017 5:40:20 AM
answer image
  • Use caution when approaching inclines or declines; if necessary lower the speed before travelling on a slope.
  •  When travelling up an incline try to keep the scooter moving forward. If you must come to a stop, use caution and slowly accelerate the scooter forward
  •  When travelling down an incline lower the speed on your scooter to the slowest setting, and proceed cautiously. If the scooter is travelling down the incline faster than you expected, slowly release the throttle to come to a stop, then slightly push the throttle forward to continue safely down the incline.
  • Never put the scooter in freewheel model while on an incline.
  • Drive your scooter straight up or down an incline, never backwards. Erratic movements, or back and forth patterns may increase the chance of tipping.
  • Do not travel up an incline with the seat completely reclined without an attendant. Inclines vary, and doing so may decrease stability.
  • Do not, under any circumstances, travel on a slope greater than the maximum climbing angle of 7.5 degrees for this scooter.
Customer Care - 4/26/2017 1:08:42 AM
question image
What are the safety checks for this product?
SAM - 4/25/2017 5:37:30 AM
answer image
Inspect the following components before each use of Ventura Deluxe Scooter:
  • Electrical connections – secure and free from corrosion.
  • Freewheel Levers – engaged in drive position.
  • Batteries – fully charged and free from corrosion.
Customer Care - 4/26/2017 1:07:24 AM
