Spitfire Scout 4-Wheel Power Scooter Features
- Drive Spitfire Scout Four Wheel Travel Power Scooter offers excellent comfort along with great performance
- Wrap-around delta tiller makes it easier for those with limited strength or dexterity to operate the scooter
- Controller will indicate battery level with the red, orange, and green color indicator
- Comes with easy to remove and quick connect battery pack, which can be charged separately from the scooter
- Comfortable, height adjustable seat with flip back which comes in handy when transporting or storing the scooter
- Upholstered stadium-style seat can swivel a hundred and eighty degrees and also has three height selections to suit users of nearly any height
- Armrests are padded, adjustable and can flip up for convenient boarding and exiting off the Power scooter
- Includes two sets of stylish, interchangeable color-through panels, in both red and blue, which double as a protective layer against potential scuffs
- Rear reflector for increased visibility protects the rider while they are on the go
- Ergonomic throttle control
- Convenient free-wheel release knob
- Black wheel rims
Spitfire Scout 4 Wheel Travel Scooter Benefits

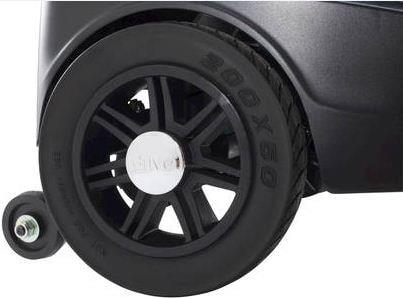

Rough Terrain Tires
The solid, flat-free, non-marking tires are designed for a worry-free and rider safe travel that can navigate the rough outdoor terrain with ease. It includes anti-tippers for added stability.

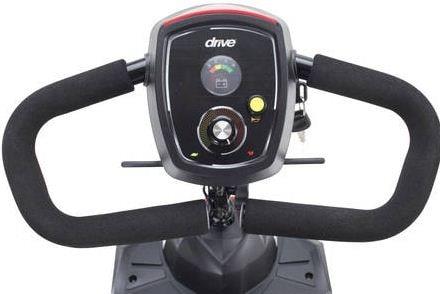

Adjustable Tiller
The adjustable angled tiller helps allow the user to position the controller for the most comfortable driving position.

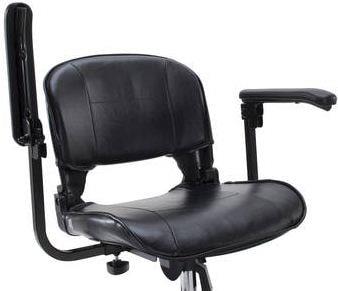

Height Adjustable Seat
The comfortable height adjustable seat is smartly designed with flip back arms for maximum comfort.

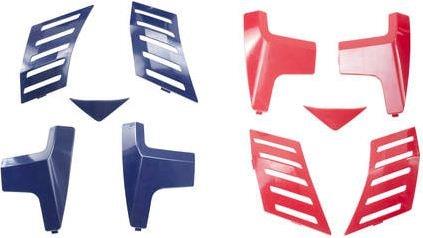

Interchangeable Shrouds
This scooter comes with interchangeable color shrouds in both red and blue to match the individual style.

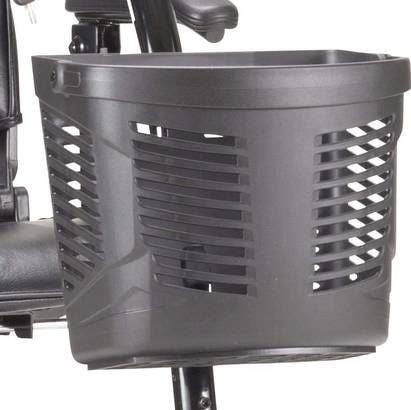

Large Carry Basket
The large front basket with a carry handle is perfect for storage as the user ride the scooter.

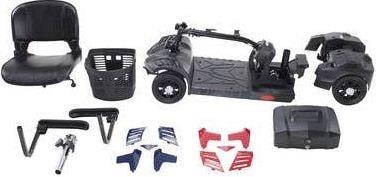

Quick and Easy Disassembly
Spitfire Scout
4-Wheel Power Scooter easily disassembles to compact pieces for storage and travel.
Click Here for Parts Description
Click Here for User Manual
What to buy with Spitfire Scout 4 Wheel Power Scooter

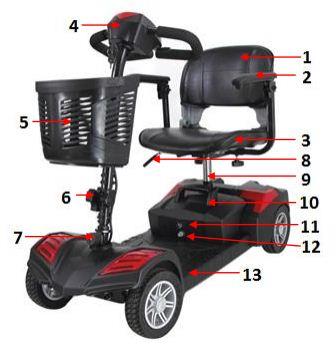

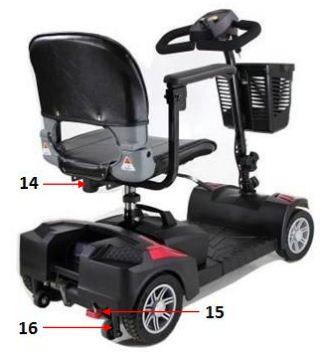

Spitfire Scout 4 Scooter Parts
- Seat Back
- Armrests
- Seat Base
- Control Panel
- Basket
- Tiller Adjustment Knob
- Front Wheel Lock
- Seat Swivel And Release Lever
- Seat Post
- Battery Pack
- Charge Port
- Circuit Breaker
- Footboard
- Accessory Post
- Freewheel Lever
- Anti-tip Wheels

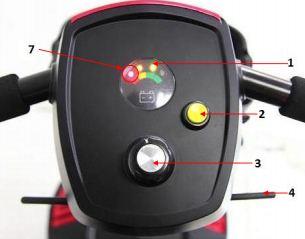

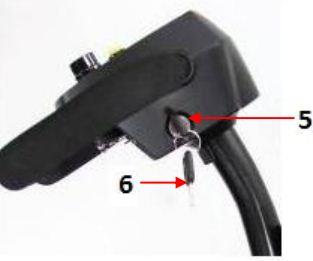

Scooter Control Panel:
- Battery Indicator
- Horn Button
- Speed Dial
- Throttle
- Key Switch
- Key
- Diagnostic Light
Battery maintenance & Charging habits
To ensure maximum life from your batteries, and continued use of your scooter please follow these charging guidelines based on your usage:
- If you use your scooter on a daily basis, charge the batteries as soon as you are finished with the day’s activities, and leave it on the charge until you are ready to use the following day.
- If you use your scooter infrequently, charge the batteries once a week for 10 to 14 hours.
- Anytime the battery pack is removed from the base of the scooter for charging or replacing batteries, DO NOT drop the battery pack onto the connection block. This may cause damage to your scooter.
Specification
| Particulars |
Specifications |
| Weight Capacity |
300lb |
| Top Speed |
4.25mph |
| Top Range |
9 miles (12AH) / 15 miles (20AH) |
| Turning Radius |
53.75" |
| Climbing Angle |
6° |
| Ground Clearance |
2.5" |
| Dimensions |
42.5"L x 20.5"W |
| Floor to Seat Height |
17" to 19" |
| Seat Dimensions |
16.5"W x 16"D |
| Controller |
CTE 45A |
| Motor or Drive System |
24v x 270w x 4700rpm |
| Batteries (Pair) |
12V x 12AH |
| Charger |
2 amps offboard |
| Brakes |
Electromagnetic |
| Front Wheel |
8" x 2" flat free |
| Rear Wheel |
8" x 2" flat free |
| Base Weight |
58lb |
| Battery Weight |
20lb |
| Seat Weight |
16lb |
| Total Weight |
94lb |
Warranty
Warranty on Frame: Lifetime, Warranty on Electronic Controller/Drive Train Components: 24 Months, Warranty on Batteries: 12 Months
