Drive Phoenix HD (Heavy Duty) 3 Wheel Travel Scooter provides the user with independent indoor and outdoor mobility. Convenient and compact design of the scooter allows it to easily assemble and disassemble into four easy to store and transport pieces, with the heaviest front section weighing only 32 lbs. Phoenix HD 3 Wheel Scooter design allows it to nimbly negotiate indoor obstacles, making navigating the tight spaces easier. Some of the standard features of Phoenix HD 3 Wheel Scooter are height adjustable seat, width adjustable arms, headlight and "Finger Pull" throttle that provide added comfort and safety to every ride.

  • ORDERING DETAILS
  • Seat (Model)
  • Option Accessories
  • Total: $1629.99
    Total: $1149
Total: $1629.99
Total: $1149

Phoenix HD 3 Wheel Scooter

Features:

  • Adjustable angle tiller with auto-straightening feature, allows the user to position the controller into an ideal driving position
  • Ergonomic “Finger-Pull" throttle helps those with limited strength or dexterity to operate the scooter
  • Comfortable, height adjustable swivel seat with two-tone upholstery, hundred and eighty degrees revolution and three height selections for users of nearly any height
  • Seat back folds completely flat, which becomes handy when transporting or storing the scooter
  • Armrests are padded and adjustable
  • Headlight for enhanced safety
  • Includes two sets of interchangeable color panels in red and blue
  • Comes with easy to remove, quick connect battery pack that can be charged separately from the scooter
  • Large plastic front carry basket
  • Quick and easy disassembly into 4 easy-to-transport pieces
  • Anti-tip wheels for greater safety
  • Convenient free-wheel release knob
  • Solid, non-marking, flat-free tires for worry-free travel
  • Backpack: Backpack has a super-sized, expandable main compartment with hook-and-loop fasteners, two zippered compartments, two mesh side pockets, plus an attached headrest cover and handy carrying handle
  • Scooter Cover: Fits the product size and protects the scooter from dirt and other elements

What Makes Phoenix HD 3 Wheel Scooter Unique?

Phoenix HD 3 Wheel Scooter has the functionality of a standard size travel scooter with the weight capacity of up to 350 lbs. Until now, heavy duty scooters have often been bulky in size and difficult to use around small spaces and indoor furniture. The special three-wheel design of the Phoenix HD is configured to make these tasks easier while providing a larger load capacity.

Why Phoenix HD 3 Wheel Scooter is Ideal For You?

The built-in personal comfort and safety features of Phoenix HD 3 Wheel Scooter make it a great choice to buy. Its design promotes user safety with anti-tip wheels and an included headlight feature. User comfort has been taken into consideration with the height adjustable seat, adjustable width arms and an angled tiller that can be positioned for the ideal driving position. The unique "finger pull" throttle also makes it easier for those with limited dexterity to operate the scooter.

Also Available Separately:

Click Here for Parts Description
Click Here for User Manual
Phoenix HD Assembly
How to Troubleshoot a Phoenix
How to adjust the Phoenix Contact
How to install a motor on Phoenix Scooter

More Information

How To Operate Phoenix HD 3 Wheel Scooter?







Phoenix HD 3 Wheel Scooter Parts Description:


    1. Control panel
2. Basket
3. Charger Socket
4. Tiller Adjustment Knob
5. Seat
6. Seat Rotation Lever
7. Battery Pack
8. Freewheel Lever
9. Anti-tip wheels
10. Seat Post Knob
11. Seat Height Adjustment Pin

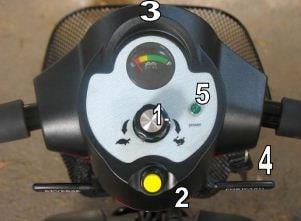

Phoenix HD 3 Wheel Scooter Control Panel:

  1. Speed Dial
2. Horn Button
3. Battery Indicator
4. Power Switch
5. Power Eye

Safety Instructions:

  • Do not use your vehicle under the circumstances below:
    - On surfaces that are muddy, gravelly, bumpy, narrow, snowed over, icy, or canal towpaths not guarded by any fence or hedge. Keep away from places where you might get the wheels stuck.
    - Do not drive at night or when it is raining, snowing, misty, or windy.
    - Do not drive your vehicle in an “S” pattern or make erratic turnings.
    - Do not take the scooter onto escalators.
    - Under no circumstances should the scooter be used as a seat in a motor vehicle (e.g. cars, buses, trains, etc).
  • About Mobile Phones and other electrical equipment:
    - Do not use a mobile phone or other wireless communication devices while driving.
    - Always switch off the scooter and remove the ignition key before using a mobile phone.
    - Do not charge the mobile phone or any other electrical devices from your scooter battery.
  • Automatic Power Shut Down:
    - In order to avoid accidental battery run down, your scooter is equipped with an automatic power shut down facility. If the scooter is switched on, after remaining undisturbed for a period of thirty minutes it will automatically turn off. When this situation occurs, simply switch your scooter off and back on and it will be ready to use once again.
  • Ramps, inclines and drops:
    - Do not drive onto steep ramps greater than the specified gradient.
    - Always use a low speed setting when ascending or descending a gradient.
    - Do not drive on roads with large drops or potholes.
    - Please slow down when driving on roads with inclines.
    - Do not make sudden turns when driving on gravel roads or ramps.
    - Always lean forward when climbing a steep gradient.

Specifications Of Phoenix HD

ParticularDimensions
Dimensions39" L x 22.5" W
Floor-to-Seat Height20" to 22"
Top Speed4 mph
Maximum Range15 miles
Turning Radius43"
Climbing Angle
Ground Clearance3.75"
Drive System24V x 350W x 3600rpm
Seat TypeFolding
Seat Dimensions17.5" W x 17" D
Motor24V x 350W x 3600 rpm
BrakesElectromagnetic
Front Wheel8” x 2” Flat-free
Rear Wheels8” x 2” Flat-free
Base Weight63lb
Battery Weight (pair)31lb
Seat Weight21lb
Total Weight115lb
Weight Capacity350lb
Batteries (pair)12V x 20AH
Charger1.5A Offboard

Warranty OF Phoenix HD

Warranty on Frame: Lifetime
Warranty on Electronic Controller/Drive Train Components: 24 Months
Warranty on Batteries: 12 Months

Customer Reviews

Questions & Answers




question image
What should be the charging duration?
Tyler - 2/27/2017 1:31:41 AM
facebooktwittergplus
answer image
The charging duration of Phoenix HD 3 Wheel Scooter is about 6 hours. To ensure optimum performance a 10-hour charge is recommended. But charging more than 24 consecutive hours is not recommended.
Customer Care - 2/28/2017 1:41:54 AM
question image
How to adjust the seat height?
David - 2/27/2017 1:31:17 AM
facebooktwittergplus
answer image
To adjust the seat height of Phoenix HD 3 Wheel Scooter:
  • Remove the seat from your scooter.
  • Remove the pin lock from the lower seat post.
  • Adjust the upper seat post to the desired seat height.
  • Move the upper seat post so that there is a hole to insert the locking pin.
  • Insert the pin lock and replace seat replace seat.
Customer Care - 2/28/2017 1:42:53 AM
question image
What do different colors of battery indicator mean?
Lily - 2/27/2017 1:30:51 AM
facebooktwittergplus
answer image
The battery indicator on the tiller console of Phoenix HD uses a color code to indicate the approximate power remaining in the batteries. Green indicates (40-100%) capacity, yellow indicates a draining charge (10 - 30%), and red indicates that an immediate recharge is necessary.
Customer Care - 2/28/2017 1:43:18 AM
question image
How should I disassemble the scooter?
Amby - 2/27/2017 1:30:26 AM
facebooktwittergplus
answer image
To disassemble Phoenix HD 3 Wheel Travel Scooter:
  • Turn the key switch to “OFF”.
  • Engage front wheel lock.
  • Place the free wheel mode lever in the “Drive” position.
  • Pull upward on the swivel-release lever to remove the seat from seat post.
  • Pull up on the battery pack to remove it from the scooter.
  • Pull up on the release lever to separate the front and rear sections.
Customer Care - 2/28/2017 1:44:44 AM
