Drive Cobra GT4 Heavy Duty Four-Wheel Power Scooter
Drive Cobra GT4 Heavy Duty Four-Wheel Power Scooter

Drive Cobra GT4 Heavy Duty Four-Wheel Power Scooter

Brand/Manufacturer: DRIVE MEDICAL
Save
Authorized Retailer Badge

Drive Cobra GT4 Heavy Duty Four-Wheel Power Scooter has a new, innovative design for a distinctive, stylish appearance. It has one touch, infinite tiller angle adjustment that allows the user to easily position the tiller into the ideal driving position. Cobra GT4 comes with an ergonomic delta control handles that make it easier for users with limited strength and dexterity to operate the scooter.

COBRAGT420CS

  • ORDERING DETAILS
  • Seat (Model)
  • Accessories
  • Total: $4975.55
    Total: $3949
Total: $4975.55
Total: $3949

Drive Cobra GT4 Power Scooter

Includes:

  • 12V x 20AH Batteries
  • 5A Battery charger
  • Positioning belt

Key Features:

  • Large, air-filled, low profile tires and full suspension for smoothest outdoor ride quality
  • Blade style alloy wheel rims
  • Efficient, extra bright LED lighting
  • Seats are height adjustable, swivel and feature a fold-down, reclining backrest
  • Seats can be adjusted forward or backward on auto-style slides
  • Padded armrests feature easy turn cylinders for angle adjustment
  • Hazard lights, turn signals and reflectors for superb visibility
  • High-Low switch for instant speed control
  • State-of-the-art control panel
  • Anti-tip wheels for greater safety
  • Dual rear view mirrors
  • Easy, freewheel mode

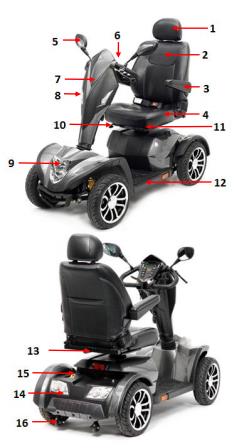

Cobra GT4 Parts Description:

Cobra GT4 Parts Description  1. Headrest
2. Seat Back
3. Armrests
4. Seat Base
5. Rearview Mirrors
6. Control Panel
7. Tiller Assembly
8. Turn Signals
9. Headlight
10. Seat Swivel & Release Lever
11. Seat Post
12. Footboard
13. Accessory Post
14. Tail Lights
15. Freewheel Lever
16. Anti-tip Wheels

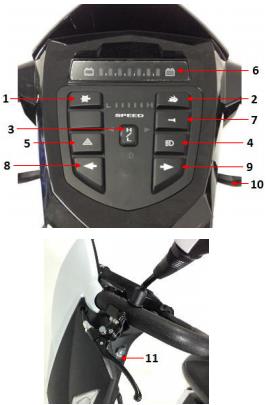

Control Panel Parts Description:

Cobra GT4 Control Panel  1. Speed Control Slow
2. Speed Control Fast
3. Quick-Speed Selector
4. Headlight Button
5. Hazard Light Button
6. Battery Indicator
7. Horn Button
8. Left Turn Signal Button
9. Right Turn Signal Button
10. Throttle
11. Charge Port


More On Cobra GT4 Scooter

Accessories:

  • Backpack: It has a super-sized, expandable main compartment with hook-and-loop fasteners, two zippered compartments, two mesh side pockets, plus an attached headrest cover and handy carrying handle.
  • Armrest Bag: It has four pockets, perfectly sized for carrying phones, paperbacks or personal electronics. It even features a mesh drink holder. Plus, the top of the bag is padded so resting the arm on it is even more comfortable.
  • Drink Holder: Take the favorite hot or cold beverage anywhere with this handy Cup Holder that attaches to the products armrest.

Assembly Instructions:

  • Step 1: Raise the tiller on your scooter by pressing the adjustment knob located in the middle of the tiller while lifting up on the handle bar.
  • Step 2: Remove the battery cover by pulling up on the shroud.
  • Step 3: Connect the batteries by connecting the red battery harnesses shown to the right.
  • Step 4: Place the rear shroud back on the scooter.
  • Step 5: Attach the seat by lifting up on the handle on the underneath side of the seat, and placing the seat down on the seat post. Release the handle and rotate the seat side-to-side to lock the seat in place.

Operating Cobra GT4:

After your scooter is assembled, and adjustments have been made you are now ready to operate your scooter.
  • The key switch applies power to the control system electronics, which in turn supplies power to the motors.
  • Turn the key switch with the key inserted to turn on your scooter.
  • It is recommended you start at the slowest speed setting when familiarizing yourself with your scooter controls. Once you feel comfortable with the controls, and movement of the scooter you may then increase the speed.
  • Rotate the speed knob to the lowest speed setting.
  • Engage the throttle, and begin steering to drive forward, backward, left or right. If you want to stop the scooter, release the throttle and it will automatically return to the center position to stop the unit.
  • Once familiar with the controls rotate the speed knob to increase the top speed to a comfortable setting.
  • When the scooter is turned on, the battery gauge will display red, orange, and green indicators:
    - Red: Your scooter should be charged as soon as possible
    - Orange: Do not drive your scooter for a long trip
    - Green: Your scooter has full battery capacity.

Cleaning Instructions:

  • To clean your scooter use a damp cloth with a mild, non-abrasive cleaner on the plastic and metal parts
  • If necessary, clean your scooter with an approved disinfectant safe for use on your unit
  • Never hose off your scooter or expose it to direct contact with water
  • Never use any chemicals on the upholstery of your seat, this may cause the seat to dry out and crack

Specification

ParticularsDimensions
Performance
Top Speed10 mph
Maximum Range35 miles
Turning Radius82"
Climbing Angle
Dimensions
Overall Length63"
Overall Width28.8"
Floor-to-Seat Height27" to 30"
Ground Clearance7"
Power
Motor24V x 950W x 5200 rpm
ControllerDynamic Rhino II 160A
Batteries12V x 75AH
Charger5A Offboard
BrakesElectromagnetic
Tires (Pneumatic)
Front Wheels14" x 14" Pneumatic
Rear Wheels14" x 14" Pneumatic
Weights
Base Weight191lbs
Battery Weight (pair)94lbs
Seat Weight55lbs
Total Weight340lbs
Weight Capacity450lbs

Warranty

Lifetime warranty on Frame, 24 months warranty on Electronic Controller and Drive Train Components, 12 months warranty on Batteries
